Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description
Silicon Rod SiC Heating Elements For Laboratory And Industrial Furnace

Products Description

1500°C ED Type SIC Heating Elements is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It can usually make use for furnance which temperature from 600C-1600ºC. It is widely used in various electric heating element of glass,chemical, electronic material and so on.
According to the market demand,we produce different types of silicon carbide heating elements.
(diameter: 8mm to 60mm,length:300mm to 450mm), while direct at the glass heating with electricity,we have such products as equal diameter ones,groove-shaped,u-shaped,gun-shaped and so on.

Features of SIC Heater Compare the other heating element
1
Max working temperature 1600°C
2
raise the temperature faster and stable longer working life
3
free of noise and no air pollution
4
easy to install and maintenance

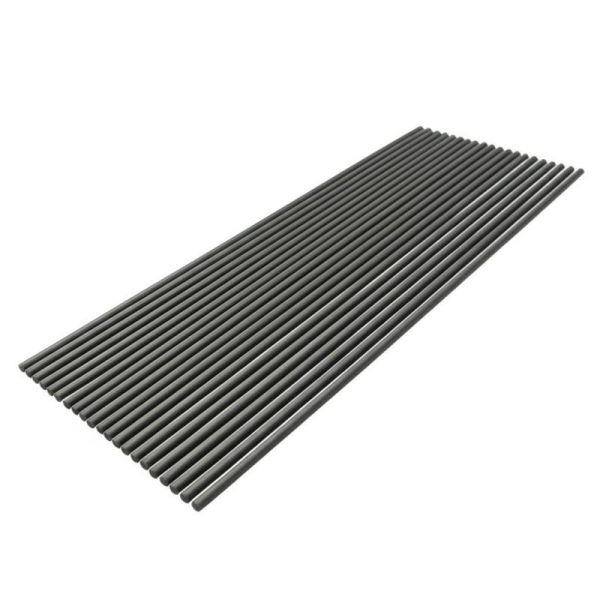

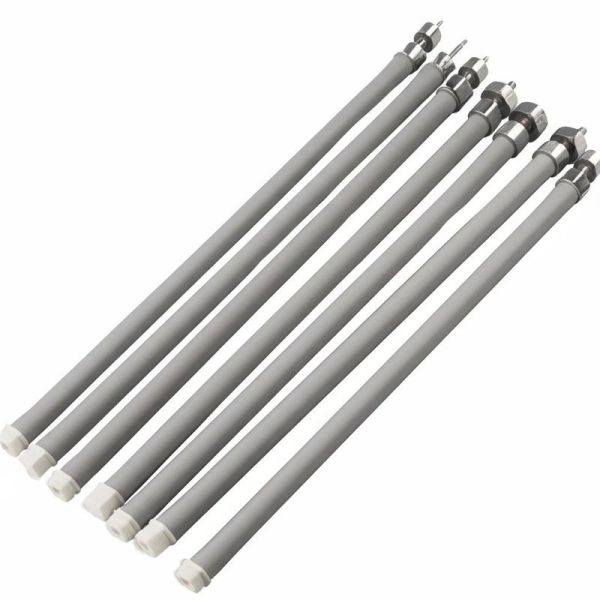

Products Show

Quality control:High Purity SiC Heating Rod with 1500°C Max Service Temp and Customizable Sizes for Industrial Furnaces
