1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
Specifications
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Description

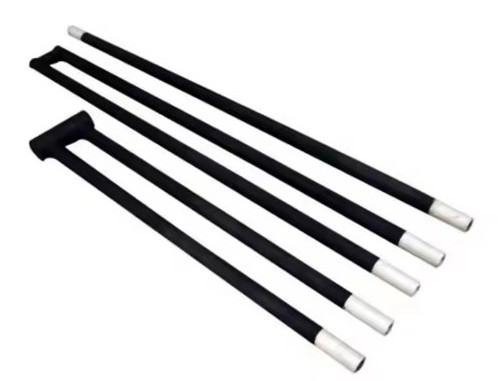

1400°C - 1500°C Industrial Silicon Carbide (SiC) Heating Elements
Silicon Carbide (SiC) heating elements are non-metallic high-temperature electric heating components manufactured from selected high-purity green silicon carbide. These elements are formed into blanks and silicon crystals at extreme temperatures of 2400°C, making them suitable for furnace applications ranging from 600°C to 1600°C. They are widely utilized in various industrial heating applications including glass manufacturing, chemical processing, and electronic materials production.
Available Configurations
To meet diverse market requirements, we produce multiple types of silicon carbide rods with the following specifications:
• Diameter: 8mm to 60mm
• Length: 300mm to 450mm
• Types: Equal diameter, groove type, U-type, gun type, and custom configurations for glass electric heating applications
Key Features & Advantages
1 Maximum working temperature of 1600°C
2 Rapid temperature rise with stable performance and extended operational lifespan
3 Silent operation with zero air pollution emissions
4 Simple installation and minimal maintenance requirements
Product Gallery
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element 1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
Quality Control Standards
1500C Max Service Temp High Purity SiC Customized Size Silicon Carbide Heater SIC Heating Element
