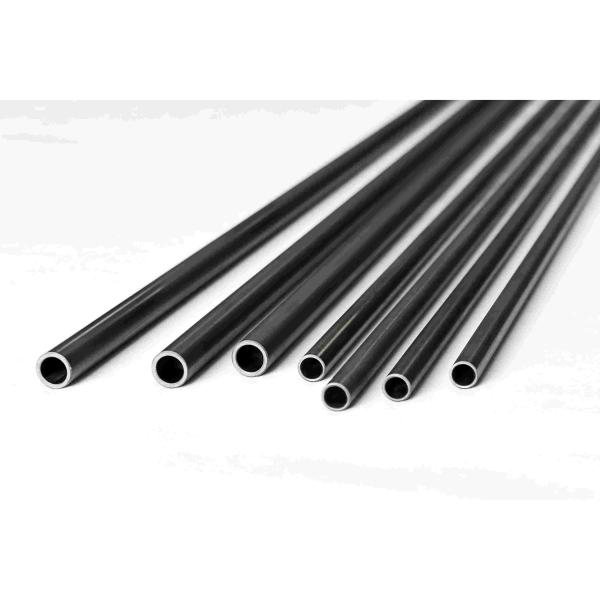

Pressureless Sintered SiC Heat Exchange Tube Corrosion Proof For Industrial Furnaces
Pressureless Sintered SiC Heat Exchange Tube Corrosion Proof For Industrial Furnaces
Pressureless Sintered SiC Heat Exchange Tube Corrosion Proof For Industrial Furnaces
Pressureless Sintered SiC Heat Exchange Tube Corrosion Proof For Industrial Furnaces
Specifications
Brand Name :
KeGu
Model Number :
Customizable
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Price :
200-500 yuan/kg
Material :
SiC
Composition:SiC :
>98%
Color :
Black
Density :
>3.05g/cm3
Max. Service Temp. :
1650℃
Flexural Strength :
380MPa
Description

High - Temp Resistant & Corrosion - Proof Pressureless Sintered SiC Heat Exchange Tube for Industrial Furnaces

Description:

Manufactured through automated extrusion molding and sintered in vacuum high-temperature furnaces (2100-2200°C), our SiC heat exchange tubes deliver superior heat transfer efficiency – the optimal solution for Extreme Operating Conditions.

Typical application:

Pressureless sintered silicon carbide (SSiC) heat exchange tubes are mainly used as core heat transfer components in shell-and-tube heat exchangers, suitable for extreme industrial conditions.

Application Fields:

1. Petrochemical: High-temperature cracking furnaces; Sulfuric acid concentration systems

2. Energy: Waste heat recovery boilers; Nuclear reactor cooling circuits

3. Environmental: Flue gas scrubbing systems; Hazardous waste treatment

4. Metallurgical: Non-ferrous metal smelting; Molten salt heat transfer

Feature:

1. Exceptional High-Temperature Stability

2. Superior Corrosion Resistance

3. High Thermal Conductivity

4. Low Thermal Expansion

5. Excellent Wear Resistance

6. High Heat Transfer Efficiency

The physical properties of pressureless sintered silicon carbide ceramics products:

Physical properties Unit SSiC
Composition:SiC Vol% ≥98
Density 20 ℃ g/cm3 ≥3.05
Open Porosity Vol% ≈0
Hardness Rockwell Hardness 45N R45N 93
Vickers Hardness HV1 kg/mm2 2350
Flexural Strength 20°C MPa 320-400
1300°C MPa 300-400
Coficient of Thermal Expansion 10-6K-1 4.0
hermal Conductivity 20°C Wm-1K-1 196
1200°C Wm-1K-1 60
Modulus of Elasticity @ RT GPa 410
Thermal shock resistance ℃ ＞350
Max. Service Temp (air) ℃ 1650

Available product sizes:

SN

OD(mm)

ID(mm)

Thickness(mm)

1

14

11

1.20

2

16

12

2.00

3

19

14.5

2.25

4

25

20

2.50

5

34

24

5.00

Customization Services:

1. Dimensions & Specifications: Refer to the table below for common sizes. Custom specifications are available upon request.

Selected sizes can be provided with: End machining (flanged/threaded/ground)

2. Precision drilling (axial/radial patterns)
