High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
Specifications
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Description
High-Temp SiC Heating Rods & Tubes for Kilns & Furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
Product Overview
Our Silicon Carbide (SiC) Heating Elements are advanced, non-metallic electric heating solutions engineered for extreme-temperature industrial applications. Manufactured from high-purity silicon carbide, these rods and tubes are formed into precise blanks and sintered at 2200°C through a specialized siliconization and recrystallization process. Ideal for oxidizing atmospheres, they deliver reliable performance at temperatures up to 1450 °C with a service life of up to 2000 hours.
These elements are essential components in high-temperature furnaces, kilns, and baking ovens across various sectors, offering superior thermal stability, corrosion resistance, and energy efficiency.
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
Key Features & Benefits
  • Exceptional High-Temperature Performance: Stable operation up to 1450°C (2642°F)
  • Extended Service Life: Designed for durability, providing up to 2000 hours of continuous use
  • Superior Thermal & Mechanical Properties: High thermal conductivity, excellent thermal shock resistance, and high strength at elevated temperatures
  • Anti-Oxidation & Corrosion Resistance: Reliable performance in harsh and oxidizing environments

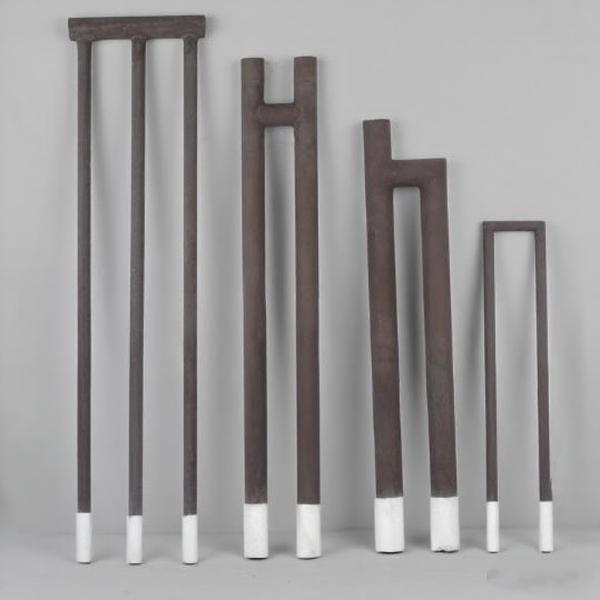

  • Customizable Designs: Available in standard and custom shapes (ED, SC, SCR, U, W, Dumbbell) and sizes to meet specific furnace requirements
Our Silicon Carbide Product Range
  • Silicon Carbide Tubes, Pipes, Beams, Rollers, Pillars & Heating Elements
  • Reaction Sintered Silicon Carbide (RBSIC)
  • Recrystallized Silicon Carbide (RSIC)
  • Nitride Bonded Silicon Carbide (NBSIC)
  • Sintered Silicon Carbide (SSiC)
Technical Specifications
Specification Details
Available Shapes ED, SC, SCR, Dumbbell, U, W, and other custom configurations
Maximum Operating Temperature Up to 1400°C - 1450°C
Manufacturing Process High-temperature siliconization and recrystallization
Applications
  • Industrial heat treatment electric furnaces
  • Metallurgy, non-ferrous metal smelting, and steel plant applications
  • Power generation and coal chemical industries
  • Sanitary ceramics, electric ceramics, and advanced ceramics kilns
  • Tunnel kilns, shuttle kilns, and sintering furnaces
  • Baking ovens and medium-frequency heating forging furnaces
High-Temp 1450°C SiC Heating Rods & Tubes with 2000 Hours Service Life and Customizable Shapes for Kilns & Furnaces
