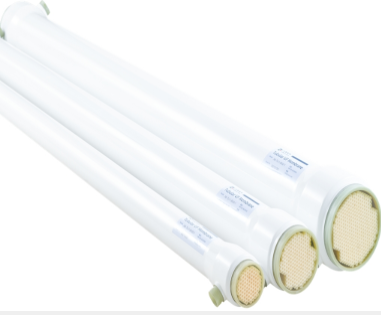

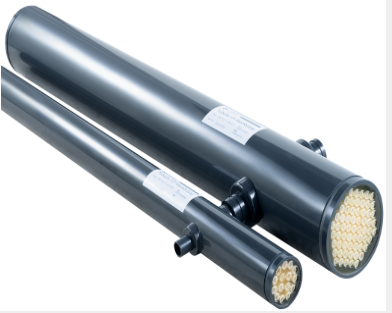

Polymeric Tubular Membrane for Industrial Crossflow Filtration
Polymeric Tubular Membrane for Industrial Crossflow Filtration
Polymeric Tubular Membrane for Industrial Crossflow Filtration
Polymeric Tubular Membrane for Industrial Crossflow Filtration
Specifications
Model Number :
Customizable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,,T/T
Place of Origin :
China
MOQ :
Negotiable
Brand Name :
KeGu
Description
Polymeric Tubular Membrane for Industrial Crossflow Filtration
Product Overview

Our Polymeric Tubular Membranes are designed for demanding industrial crossflow filtration applications where high fouling resistance and stable long-term operation are required.

Available in PVDF, PES, PTFE, and sintered polymer structures, these membranes provide excellent chemical resistance, high mechanical strength, and outstanding cleaning performance.

Primary Applications
  • Industrial wastewater treatment
  • Powder slurry filtration
  • Acid & alkali recovery
  • Botanical extraction
  • Landfill leachate treatment
  • Oilfield produced water treatment
Key Features
Excellent Fouling Resistance

The open-channel tubular design minimizes clogging and enables stable operation in high-solids and high-viscosity applications.

Outstanding Chemical Resistance

Compatible with strong acids, alkalis, and a wide range of industrial chemicals.

Easy Cleaning & High Flux Recovery

Supports aggressive chemical cleaning and backwashing, maintaining stable filtration performance.

High Mechanical Strength

Robust membrane construction ensures long service life under demanding operating conditions.

Technical Specifications
Membrane Material Pore Size (µm / dalton) Tube I.D. (mm) Pure Water Flux (LMH) pH Range Temperature Range
PTFE0.1 µm6, 8≥12000-140-80°C
PTFE0.2 µm6, 8≥20000-140-80°C
PVDF0.1 µm6, 8, 10, 12.5≥7500-140-80°C
PVDF0.2 µm6, 8, 10, 12.5≥10000-140-80°C
PVDF0.03 µm6, 8, 10, 12.5≥5000-140-80°C
PVDF100,000 dalton6, 8, 10, 12.5≥3000-140-80°C
PES30,000 dalton6, 8, 10, 12.5≥1800-140-80°C
PES10,000 dalton6, 8, 10, 12.5≥1000-140-80°C
Sintered Membrane0.1 µm12.7≥15000-140-80°C
Sintered Membrane0.2 µm12.7≥2000
Available Membrane Materials
Material Typical Applications
PVDFGeneral wastewater treatment
PESUltrafiltration
PTFEStrong chemical systems
Sintered MembraneHigh solids filtration
Why Choose Our Polymeric Tubular Membranes?
  • High crossflow velocity for reduced fouling
  • Multiple membrane materials available
  • Customizable module configurations
  • Long service life
  • OEM & custom manufacturing support
Looking for the right tubular membrane?

Our engineers can recommend the optimal membrane material, pore size, and module configuration based on your application.

Contact us today for technical support or a customized quotation.
