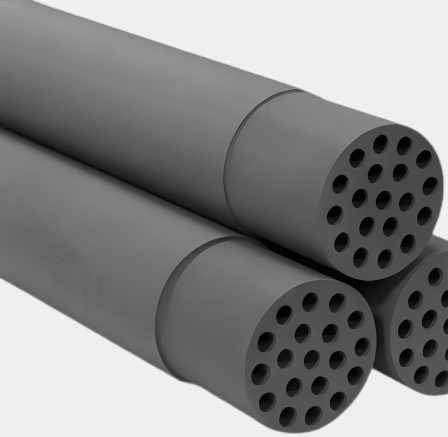

Silicon Carbide (SiC) Ceramic Membrane for High-Performance Industrial Filtration
Silicon Carbide (SiC) Ceramic Membrane for High-Performance Industrial Filtration
Specifications
Model Number :
Customizable
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,
Place of Origin :
China
Brand Name :
KeGu
Description
Product Introduction

Silicon Carbide (SiC) Ceramic Membranes are engineered for demanding industrial filtration and separation applications. Manufactured through high-temperature sintering, they offer excellent chemical resistance, high mechanical strength, superior thermal shock resistance, and high filtration flux.

Compared with conventional ceramic membranes, SiC membranes provide longer service life, lower fouling tendency, and reduced maintenance costs, making them ideal for wastewater treatment, chemical processing, catalyst recovery, and slurry filtration.

Key Features
  • Excellent Chemical Resistance – Suitable for strong acids, alkalis, and corrosive media.
  • High Filtration Flux – Three-dimensional pore structure delivers high permeability.
  • Outstanding Thermal Shock Resistance – Stable under rapid temperature changes.
  • Low Maintenance Cost – Excellent fouling resistance and easy cleaning.
Applications
  • Industrial wastewater treatment
  • Chemical processing
  • Catalyst recovery
  • Battery material processing
  • Slurry filtration
  • Fine chemical separation
Technical Specifications
Parameter Unit SCM-XX-19*30 SCM-XX-37*30 SCM-XX-19*40 SCM-XX-37*40
Number of Channels pcs 19 37 19 37
Channel Diameter mm 4 2.6 6 4
Membrane Length mm 1200
Customizable upon request		 1200
Customizable upon request		 1200
Customizable upon request		 1200
Customizable upon request
Membrane Area m² 0.286 0.362 0.43 0.56
Membrane Pore Size µm 0.2, 0.5, 1, 2 0.2, 0.5, 1, 2 0.2, 0.5, 1, 2 0.2, 0.5, 1, 2

Looking for a customized SiC ceramic membrane solution? Contact our engineering team for technical support and quotations.
