Overheating Protection Intelligent Battery Discharge Test Automatic Protection Function
Overheating Protection Intelligent Battery Discharge Test Automatic Protection Function
Specifications
Brand Name :
Huaying
Model Number :
HY3980
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Operating Voltage :
AC 220V±15%
voltage resolution :
0.01V
Voltage test accuracy :
0.25%+0.25FS
Current test accuracy :
0.5%+0.5FS
Usage :
Battery Discharge Tester
Application :
checking discharge experiment
Description
Overheating Protection Intelligent Battery Discharge Test Automatic Protection Function
1. Product Name

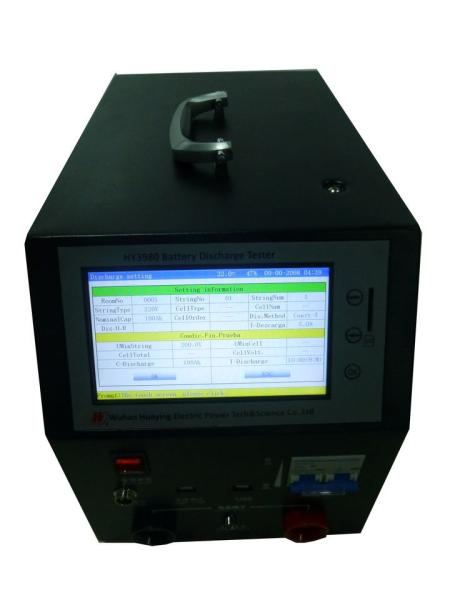

Battery Discharge Tester HY3980
2.Introduction

Battery Discharge Tester HY3980 is a special instrument for the test of NiCD and Lead-acid storage battery string of the whole string voltage of 24V, 48V, 110V, 220V, and it adopts current advanced testing technology theory, and has obtained a series of breakthrough in research and application of new technology, new parts, new material and new techniques, which is designed in accordance with the requests of national related testing and maintenance regulations and it is a special detection instrument for the performance detection of stationary battery.

2. Main Functions and Features

  • The product is utilized color touch screen. It can be operated via finger or the touch pen with convenience and flexibility.
  • Data save mode: Internal save and external save(SD Card )
  • Enhanced over voltage protecting function ,
  • Automatically recovery the over current protecting function

  • Overheating protection

  • Discharge Function:

  • Automatic protection function:


3.Technical parameters (select 48V / 150A, 48V / 300A and 220V / 30A, 220V / 50A for the sample)

CharacteristicsTechnical parameters
Model48/15048/300220/30220/50
The whole set of voltage measurement range0～60V0～60V0～285V0～285V
The whole set of voltage resolution0.01V
Voltage test accuracy0.25%+0.25FS
Discharge current operating range2 ~ 150A can be set continuously, more than 150A need to add external load2 ~ 300A can be set continuously, more than 300A need to add external load2 ~ 30A can be set continuously, more than 30A need to add external load

2 ~ 50A can
be set
continuously, more than 50A need to add external
load

Constant current discharge voltage range40～56V40～56V180～280V180～280V
Discharge current control accuracy0.1A
Current test accuracy0.5%+0.5FS
Operating VoltageAC 220V±15%(DC and AC-DC optional)
Cooling methodStrong wind and cold system
Communication methodRS232 communication and SD bayonet communication
Display7 inch color LCD display with touch
AppearanceL440×W225×H300mmL480×W225×H410mmL440×W225×H300mm

L480×W225×
H410mm
