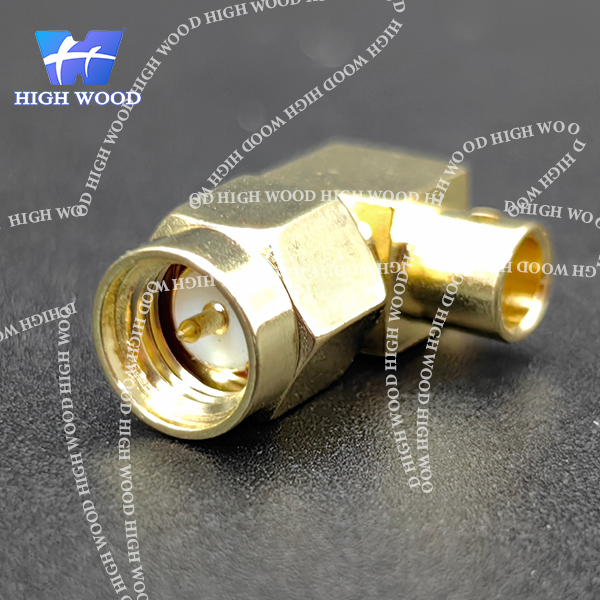

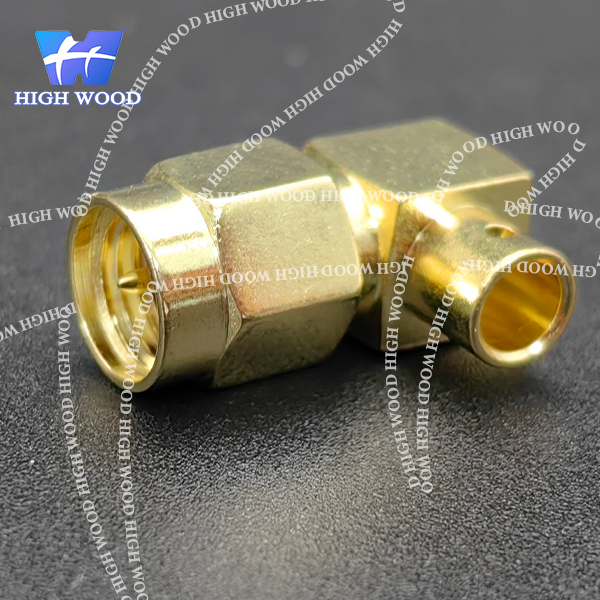

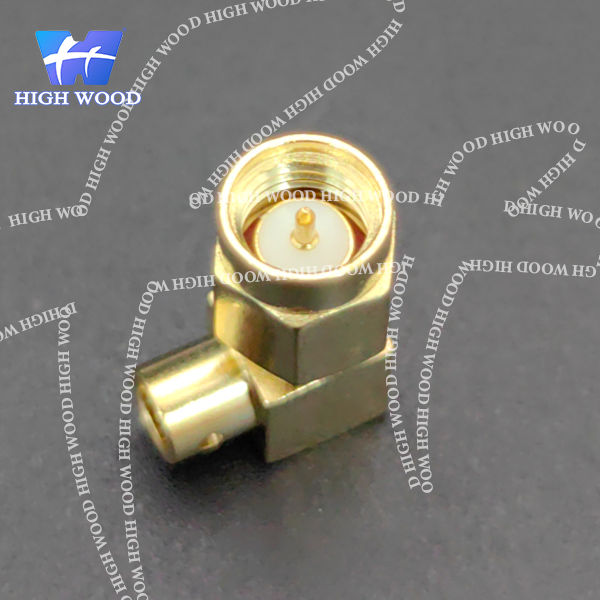

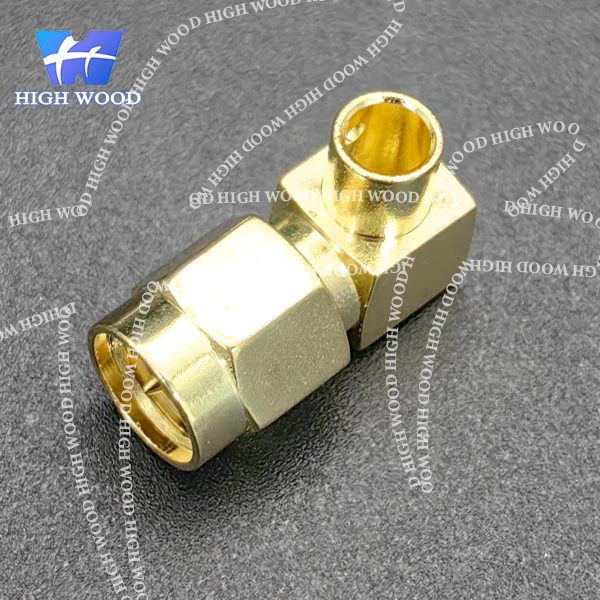

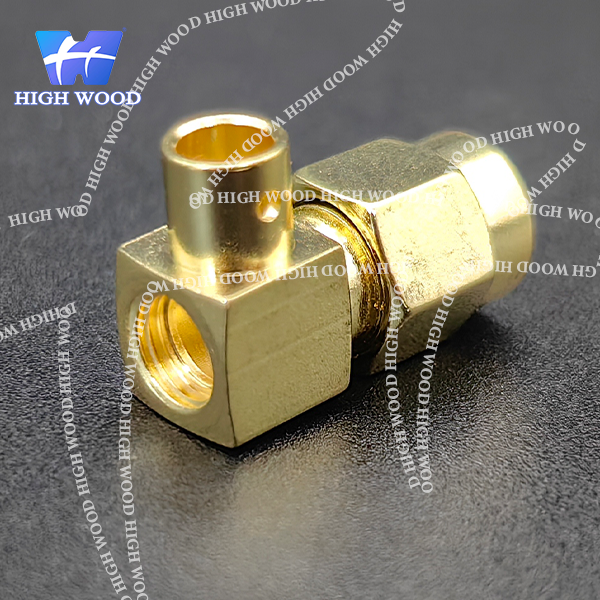

SMA Right Angle Male JWB-3
Product introduction:
a. It has the advantages of small size, wide frequency range, reliable mechanical and electrical performance, etc. It is currently the most widely used coaxial RF connector.
b. Used in communications, aerospace, navigation, weapon systems and microwave measurement equipment and other fields.
Main Technical Parameters:
Parameter Specification
Frequency Range Flexible Cable: 0～12.4GHz
Semi-Flexible Cable: 0～18GHz
Ambient Temperature -55°C～+155°C
Characteristic Impedance 50Ω
Voltage Standing Wave Ratio (VSWR) With Soft Cable: ≤1.15+0.02F
With Semi-Rigid And Semi-Flexible Cables: ≤1.10+0.02F
Insulation Resistance ≥5000MΩ
Working Voltage 330V
Dielectric Withstand Voltage 1000V
Contact Resistance Center Conductor: <3mΩ
Outer Conductor: <2mΩ
Mechanical Life 500 Plug And Unplug Times
Partial Fit Size (mm):
SMA Series Jack Contact Connector Interface:
SMA Series RF Coaxial Connector, SMA Right Angle Male JWB-3
Symbol Min (mm) Max (mm)
B 1.27 (nominal) 1.27 (nominal)
C 4.6 4.67
D 1/4-36UNS-2A 1/4-36UNS-2A
E 1.88 1.98
F 4.32 --
G 5.54 --
SMA Series Pin Contact Connector Interface:
SMA Series RF Coaxial Connector, SMA Right Angle Male JWB-3
Symbol Min (mm) Max (mm)
A 0.9 0.94
B 1.27 (nominal) 1.27 (nominal)
C 4.34 4.59
D 1/4-36UNS-2B 1/4-36UNS-2B
E -- 3.43
Product Display:
