Specifications
Brand Name :
HIGHWOOD
Model Number :
HW-1-2L-25SSMRTN
Certification :
AS9001
Place of Origin :
China
MOQ :
100PCS
Price :
10＄--150＄
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs per month
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
Contact :
Copper alloy gold plating 1.27u
Shell :
Aluminum alloy nickel plated
Attachment :
Stainless steel
Rated Current :
≤3A
Pressure Resistant :
600V @sea level
Mechanical Life :
500 cycles
Description

HW-1-2L-25SSMRTN

HW-1-2L-25SSMRTN equipped Micro-d connectors offer outstanding mating performance, durability and minimal contact resistance. Micro-D Connectors feature High density micro TwistPin contacts set on .050 centers in arranngements from 9 to 130 contacts. They are availlable with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as QPL or commercial variations. Our Micro-D connectors provide a solution to meet your high–performance requirements including high temperature and hermetic applications.

Specification:

Materials and coatings
Insulating Medium Glass fiber reinforced PPS, UL94-V0
Contact Copper alloy gold plating 1.27u
Shell Aluminum alloy nickel plated
Attachment Stainless steel
Electrical performance indicators
Pressure Resistant 600V @sea level
Insulation Resistance ≥5000MΩ @500V DC
Rated Current ≤3A
Contact Resistance Contact resistance≤10mΩ
Magnetic permeability ≤2u
Mechanical performance indicators
Mechanical Life 500 mating and unplugging times
Impact 50g
Vibration 20g
Environmental performance indicators
Ambient Temperature -55 C to150 C

Product pictures:

D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.

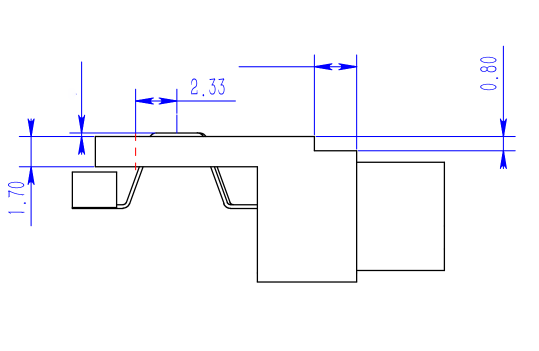

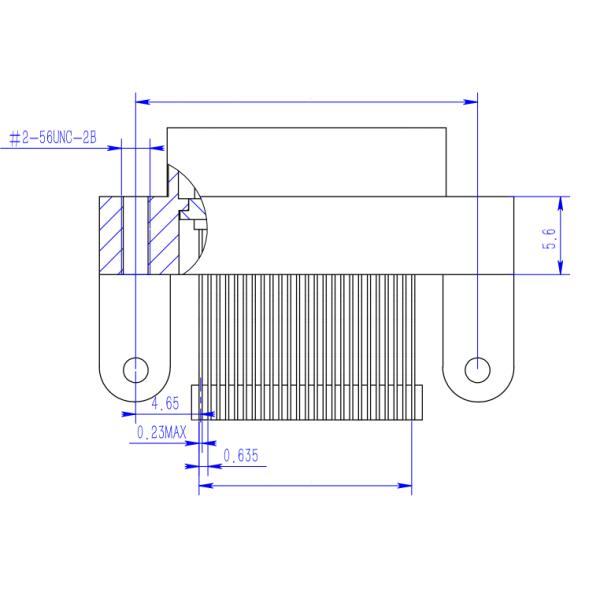

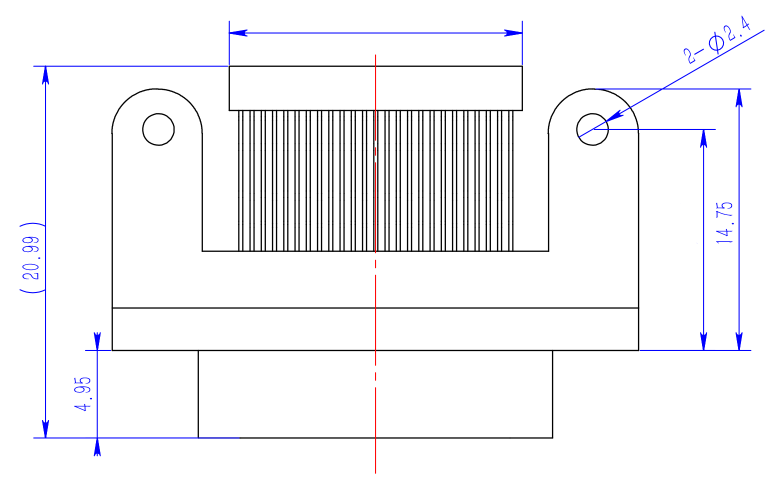

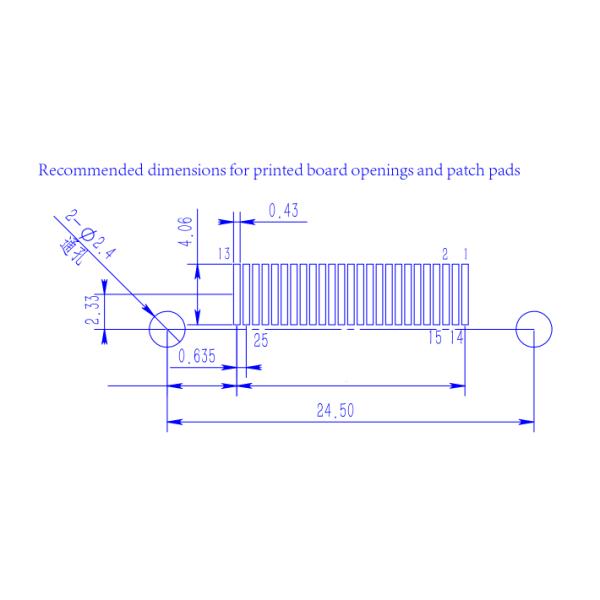

HW-1-2L-25SSMRTN:

D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.D-Sub Micro-D Connectors MICRO-D CONNECTORS，HW-1-2L-25SSMRTN.
