SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
SMA Series RF Coaxial Connector,SMA-KFD-4+3
Specifications
Dielectric Withstand Voltage :
1000V
Model Number :
SMA-KFD-4+3
Working Voltage :
330V
MOQ :
100 pcs
Delivery Time :
2-9 weeks
Ambient Temperature :
-55°C～+155°
Payment Terms :
T/T, L/C, Western Union
Characteristic Impedance :
50Ω
Certification :
AS9001
Insulation Resistance :
≥5000MΩ
Place of Origin :
China
Outer Conductor :
<2mΩ
Supply Ability :
100,000pcs per month
Center Conductor Resistance :
<3mΩ
Price :
10$-150$
Mechanical Life :
500 Plug And Unplug Times
Brand Name :
HIGH WOOD
Packaging Details :
standard export package
Description
SMA-KFD-4+3
Product introduction:
a. It has the advantages of small size, wide frequency range, reliable mechanical and electrical performance, etc. It is currently the most widely used coaxial RF connector.
b. Used in communications, aerospace, navigation, weapon systems and microwave measurement equipment and other fields.
Main Technical Parameters:
Parameter Specification
Frequency Range Flexible Cable: 0～12.4GHz
Semi-Flexible Cable: 0～18GHz
Ambient Temperature -55°C～+155°C
Characteristic Impedance 50Ω
Voltage Standing Wave Ratio (VSWR) With Soft Cable: ≤1.15+0.02F
With Semi-Rigid And Semi-Flexible Cables: ≤1.10+0.02F
Insulation Resistance ≥5000MΩ
Working Voltage 330V
Dielectric Withstand Voltage 1000V
Contact Resistance Center Conductor: <3mΩ
Outer Conductor: <2mΩ
Mechanical Life 500 Plug And Unplug Times
Partial Fit Size (mm):
SMA Series Jack Contact Connector Interface:
SMA Series RF Coaxial Connector,SMA-KFD-4+3
Symbol Min (mm) Max (mm)
B 1.27 (nominal) 1.27 (nominal)
C 4.6 4.67
D 1/4-36UNS-2A 1/4-36UNS-2A
E 1.88 1.98
F 4.32 --
G 5.54 --
SMA Series Pin Contact Connector Interface:
SMA Series RF Coaxial Connector,SMA-KFD-4+3
Symbol Min (mm) Max (mm)
A 0.9 0.94
B 1.27 (nominal) 1.27 (nominal)
C 4.34 4.59
D 1/4-36UNS-2B 1/4-36UNS-2B
E -- 3.43
Product Display:

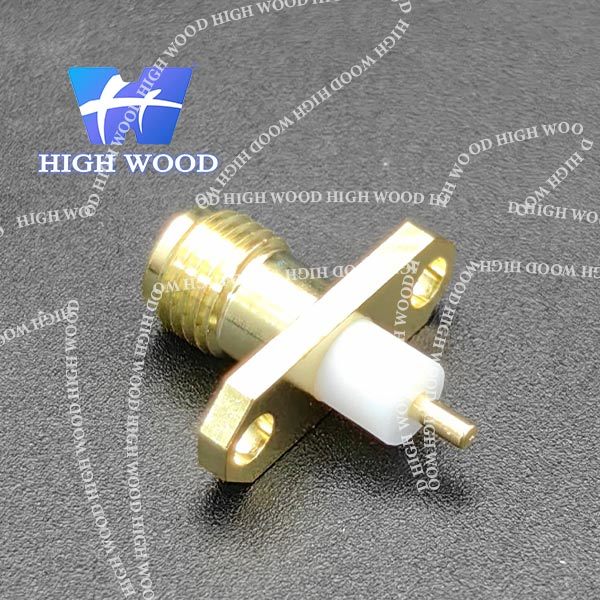

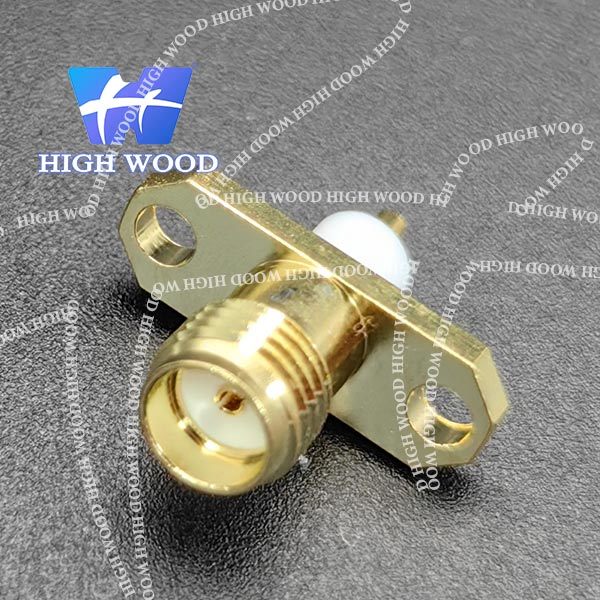

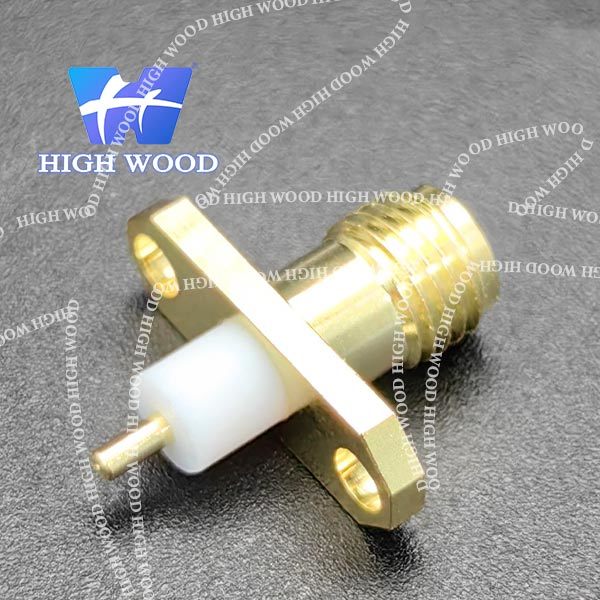

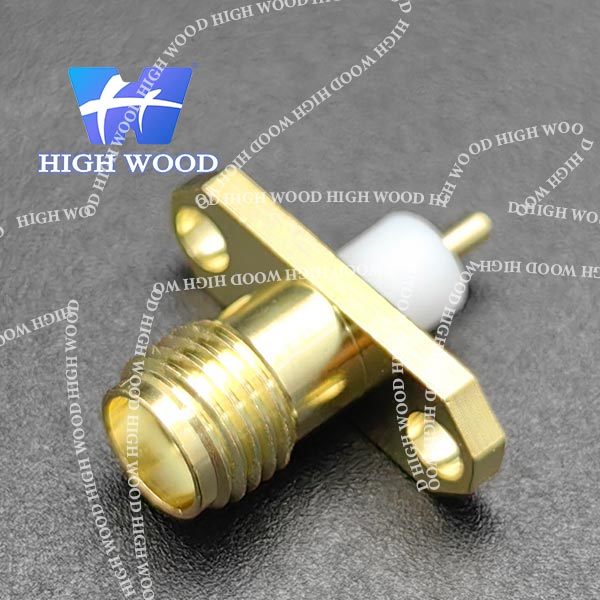

SMA Series RF Coaxial Connector,SMA-KFD-4+3SMA Series RF Coaxial Connector,SMA-KFD-4+3SMA Series RF Coaxial Connector,SMA-KFD-4+3SMA Series RF Coaxial Connector,SMA-KFD-4+3
