SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
Specifications
Model Number :
SMA-KFD Square 4-Hole Flange Male 4+3
Ambient Temperature :
-55°C～+155°
MOQ :
100 pcs
Delivery Time :
2-9 weeks
Center Conductor Resistance :
<3mΩ
Payment Terms :
T/T, L/C, Western Union
Dielectric Withstand Voltage :
1000V
Working Voltage :
330V
Supply Ability :
100,000pcs per month
Mechanical Life :
500 Plug And Unplug Times
Insulation Resistance :
≥5000MΩ
Certification :
AS9001
Place of Origin :
China
Price :
10$-150$
Characteristic Impedance :
50Ω
Brand Name :
HIGH WOOD
Outer Conductor :
<2mΩ
Packaging Details :
standard export package
Description
SMA-KFD Square 4-Hole Flange Male 4+3
Product introduction:
a. It has the advantages of small size, wide frequency range, reliable mechanical and electrical performance, etc. It is currently the most widely used coaxial RF connector.
b. Used in communications, aerospace, navigation, weapon systems and microwave measurement equipment and other fields.
Main Technical Parameters:
Parameter Specification
Frequency Range Flexible Cable: 0～12.4GHz
Semi-Flexible Cable: 0～18GHz
Ambient Temperature -55°C～+155°C
Characteristic Impedance 50Ω
Voltage Standing Wave Ratio (VSWR) With Soft Cable: ≤1.15+0.02F
With Semi-Rigid And Semi-Flexible Cables: ≤1.10+0.02F
Insulation Resistance ≥5000MΩ
Working Voltage 330V
Dielectric Withstand Voltage 1000V
Contact Resistance Center Conductor: <3mΩ
Outer Conductor: <2mΩ
Mechanical Life 500 Plug And Unplug Times
Partial Fit Size (mm):
SMA Series Jack Contact Connector Interface:
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
Symbol Min (mm) Max (mm)
B 1.27 (nominal) 1.27 (nominal)
C 4.6 4.67
D 1/4-36UNS-2A 1/4-36UNS-2A
E 1.88 1.98
F 4.32 --
G 5.54 --
SMA Series Pin Contact Connector Interface:
SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
Symbol Min (mm) Max (mm)
A 0.9 0.94
B 1.27 (nominal) 1.27 (nominal)
C 4.34 4.59
D 1/4-36UNS-2B 1/4-36UNS-2B
E -- 3.43
Product Display:

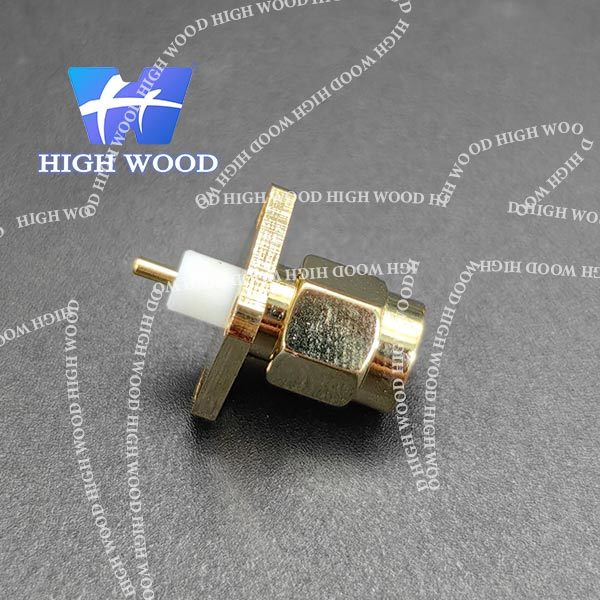

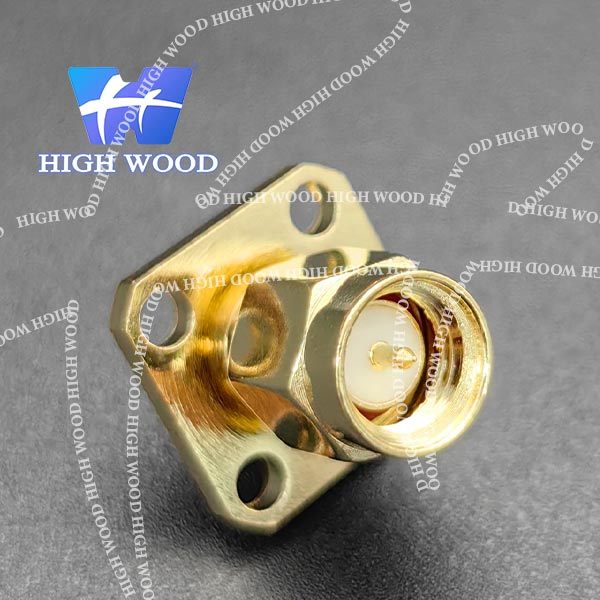

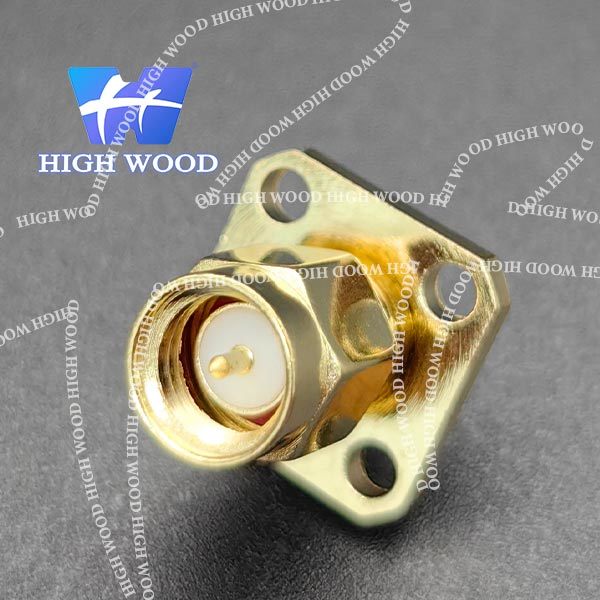

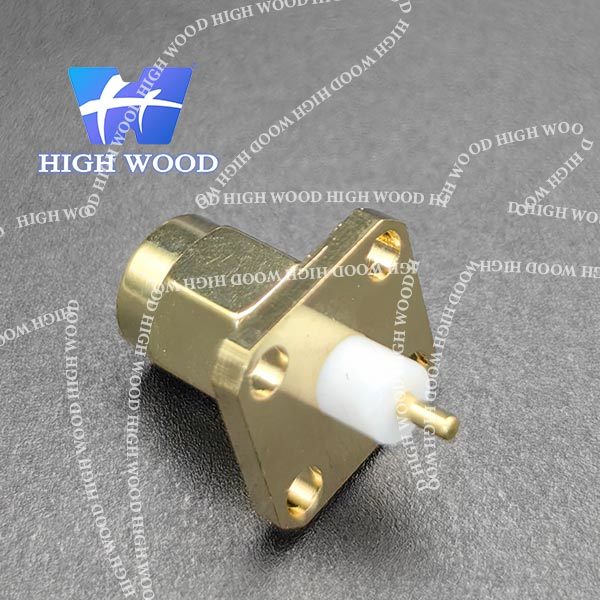

SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3SMA Series RF Coaxial Connector,SMA-KFD Square 4-Hole Flange Male 4+3
