Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
Specifications
Payment Terms :
T/T, L/C, Western Union
Ambient Temperature :
starting from t maximum value during operation, 85℃; the minimum value during transportation and storage, minus 60℃
Maximum operating voltage :
150v
Contact resistance :
No more than:0.0l 0hm
Model Number :
HW-R06-221-C1-9RH-0-JC-30T30
MOQ :
100pcs
Delivery Time :
2-9weeks
Gamma-percentage shelf life of connect :
25 years
Price :
10$-150$
Insulation Resistance :
Not less than:5,000 Mohm
Certification :
AS9001
Supply Ability :
100，000pcs per month
Connector type :
Customized rectangular connector
Brand Name :
HIGH WOOD
Packaging Details :
Standard export package
Place of Origin :
China
Description

Customized rectangular Micro-D connector HW-R06-221-C1-9RH-0-JC-30T30

Terms of usage

Mechanical Factors:

1. Sinusoidal vibration: frequency range 1-2500Hacceleration amplitude 400m/s?(40g)

2. Single machine mechanical impact: peak impaacceleration 15000m/s(1500g)2 (100g)

3. Linear acceleration 1000m

Climatic Factors:

1. Ambient temperature rise: maximum value durioperation, 85℃, maximum value during transportationand storage, 70℃

2. Reduce the ambient temperature to -6

3. Atmospheric low pressure: value during operation,(mm Hg), air transport value, (Pa mm Hg)

4. Increase the relative humidity to 35℃((no moistucondensation)at high temperature,98%

5. Ambient temperature changes: starting from tmaximum value during operation, 85℃; the minimumvalue during transportation and storage, minus 60℃

6. Connectors can resist special facto

Main Technical Parameters

Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30

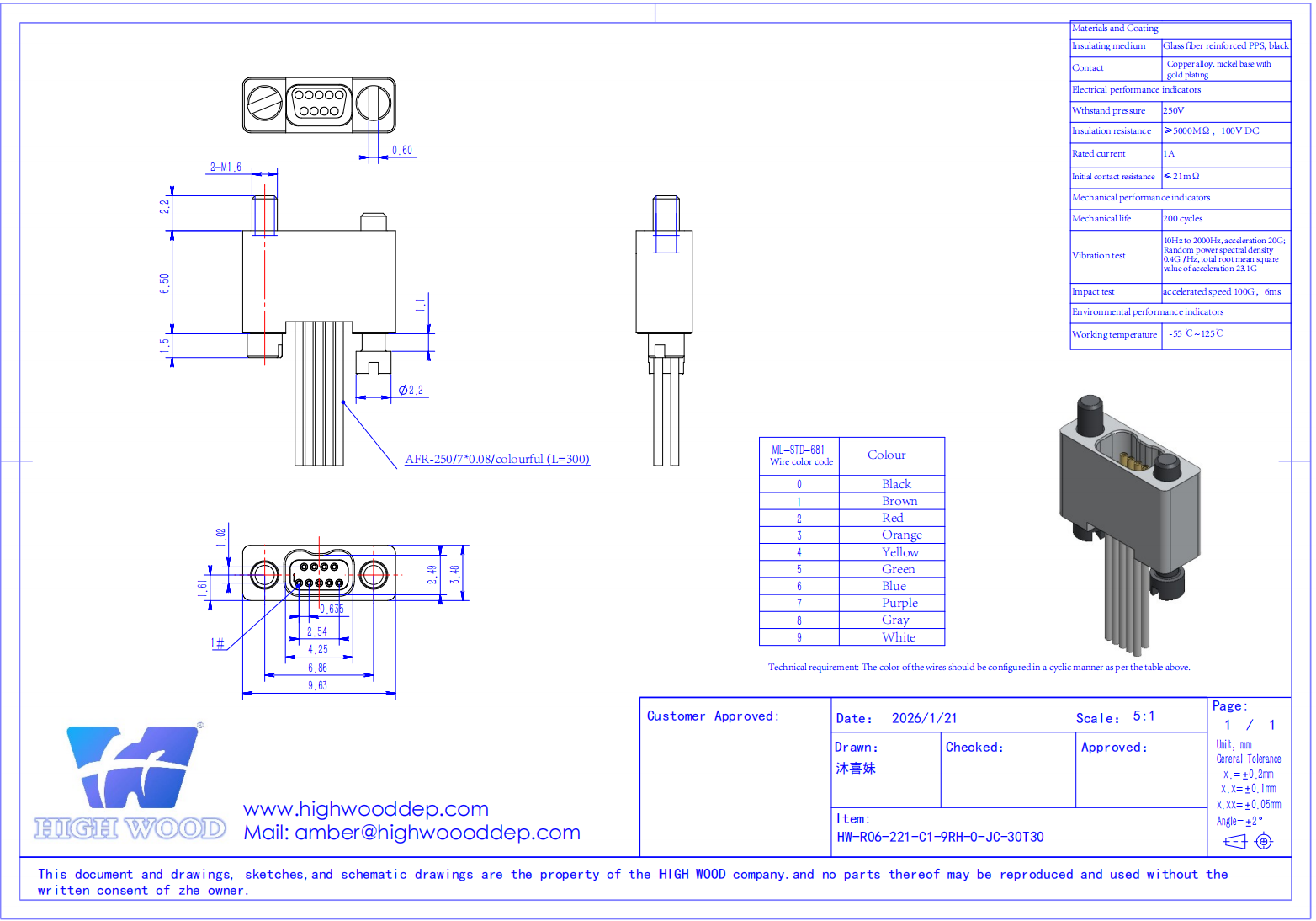

Drawing:

Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30

Product pictures:

Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30Customized Rectangular Micro-D Connector HW-R06-221-C1-9RH-0-JC-30T30
