Product Overview

PV L12/17 is a High Vacuum Heat Treatment Furnace,designed for sintering materials under vacuum up to 1600°C,chamber capacity is 12L.Carbon steel double water-cooling housing.1800# Polycrystalline ceramic fiber raw material chamber.With diffusion vacuum pump, Max10-5mbar,work under inert gas atmosphere such as nitrogen.Heating element uses high-quality new type MoSi2 rod.Yudian PID controller,programmable 30 segments, high temperature control accuracy.Multi-set air inlet and outlet equipped with pressure gauge and stainless steel ball valve.Vacuum furnaces provide the perfect heat treatment environment for a variety of procedures in many laboratories, providing the controlled temperature and atmosphere required for specific projects. Ideal for sintering new materials in vacuum or gas atmosphere.

Main Features

• TMax 1600°C
• Carbon steel double housing,furnace surface water cooling circulation,reduce surface temperature
• Double furnace door design,good sealing effect and less heat loss
• 1800# polycrystalline ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
• Pressure gauge and stainless steel ball valve,multi-set air inlet and outlet,gases can be mixed precisely
• Work in inert atmospheres such as vacuum and nitrogen. Vacuum valve optional, Max 10-5mbar.
• Heating rate 0℃-10℃/min adjustable
• MoSi2 rod heated,both sids heating,uniform temperature field
• Type B Thermocouple,long service life
• Smart 30-segment programmable automatic temperature control,high temperature control accuracy
• Power off, over-temperature, thermocouple breaking and burnout protection
• Good performance and energy saving effect
• CE certification

Product Details

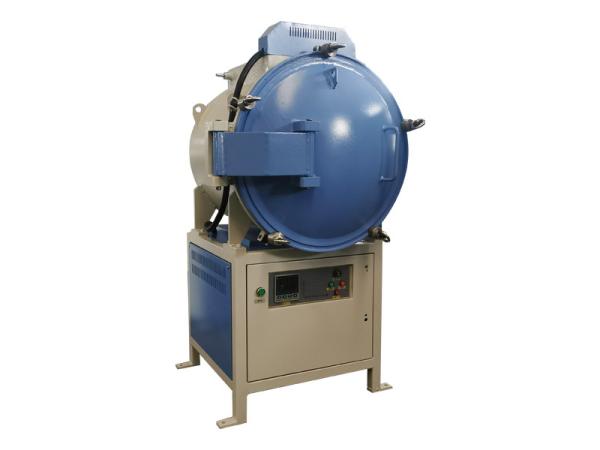

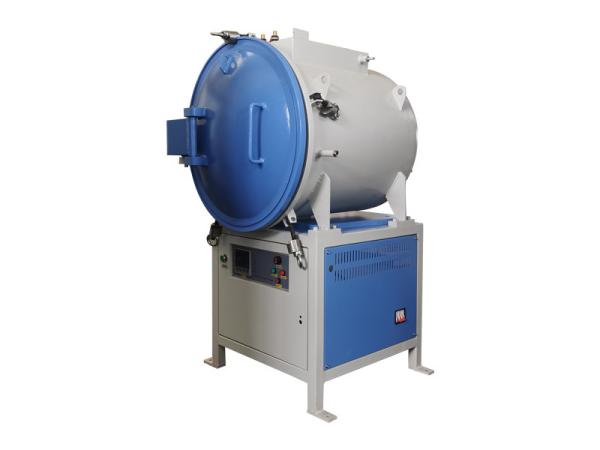

1700℃ High Vacuum Heat Treatment Furnace

• PV L12/17 High Vacuum Heat Treatment Furnace consists of five parts: furnace body,gas mixing system,vacuum system,water-cooling circulation system and temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
• Siemens electrical components, long service life.
• Export quality, ISO,CE certified.

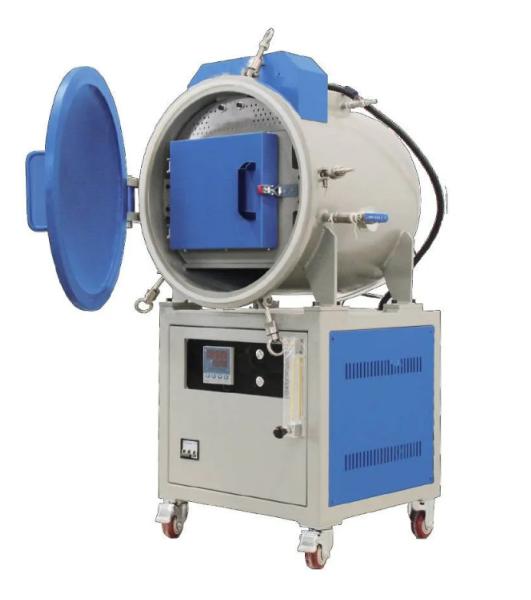

1700℃ High Vacuum Heat Treatment Furnace,Chamber

• Chamber lining uses 1800# polycrystalline ceramic fiber raw materials,CNC carved.Square chamber,chamber walls tight coupling.
• U-shape new type MoSi2 rod,both sides heating,uniform temperature field,TMax 1700°C.(In air)
• B-type thermocouple,long service life

Heating programs for 1700°C Vacuum Furnace

• Programmable 30 segments, heating rate 1-10C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently

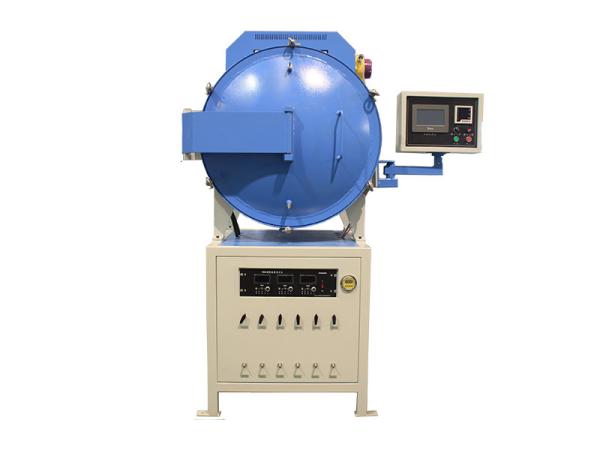

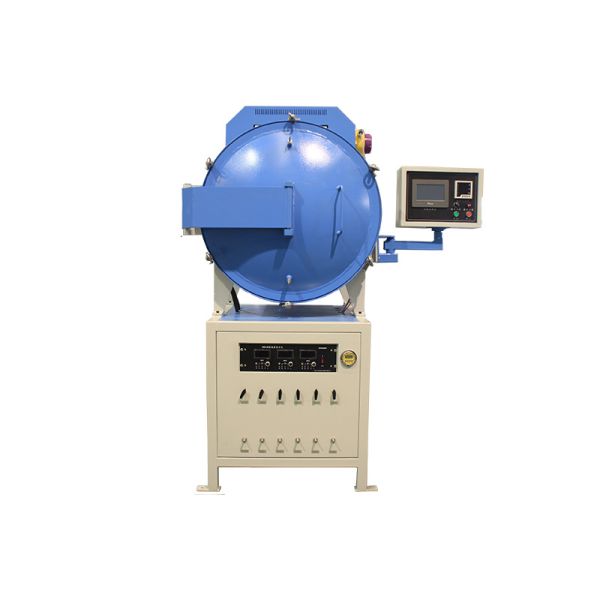

• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Specifications

Application Notes

• Please don't inject toxic or explosive gases without necessary safety controls and supervision measures.
• Before introducing reducing or flammable and explosive gases, please replace furnace gas. Nitrogen can be used as the replacement gas.
• Small cracks may appear on the surface over extended use. Normal,repaire with aluminum oxide coating,hose barb connection.
