OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C
OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C
OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C
OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C
Specifications
Brand Name :
Programtherm
Model Number :
PTV D40/300/14
Certification :
CE
Payment Terms :
T/T, L/C
Delivery Time :
7 working days
Usage :
Heat treatment, biomass pyrolysis, Purify
Tmax temperature :
1400 degree C
Working temperature :
1300 degree C
Heating length :
300mm
Tube diameter :
OD40mm
Tube material :
Alumina tube
Atmosphere :
Hydrogen gas, Ar, N2
Chamber material :
1600 grade Alumina fiber board
Heating Element :
SiC rod
Temp Controller :
Digital auto-tune PID 30 segments
Thermocouple :
S
Warranty :
Two years
After-sales service :
free spareparts including air freight
Tilting angle :
90 degree
Description

Product Overview for Laboratory Hydrogen Vertical Tube Furnace


PTV D40/300/14 is a highly customized CE certified OD40mm Hydrogen vertical tube furnace with complete vacuum sealing flanges. Furnace tube was build with alumina tube. The furnace equips with a auto PLC controlled ignition device on the top, when detect the H2 gas release from the outlet, it will automatically ignite the gas. The heating zone is heated by SiC rod up to 1400°C. It is an excellent furnace to process threadiness, powder, small steel parts materials under Hydrogen gas, and also can be used for nano or film growth by CVD.

Main Features

  • Tmax 1400 °C
  • Vertical tube furnace, Hydrogen gas atmosphere
  • Dual steel structure, non-split furnace chamber built on a small trolley, easy to move
  • Multiple atmosphere processes in a single cycle are available
  • Fiber-insulated chamber with powerful SiC rod heating elements
  • PLC controlled temperature setting interface and gas filling system
  • Alumina tube with sealing flanges
  • Long life type S thermocouple
  • CE certified, standard


Safety Measures

  • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C

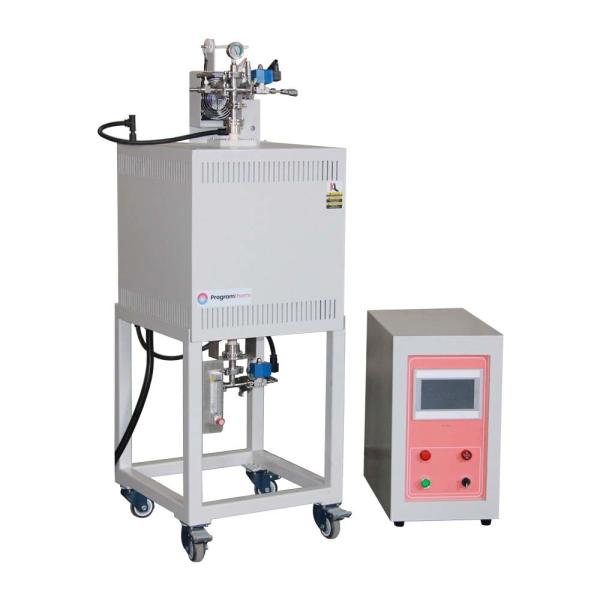

Front View for 1400C Hydrogen Vertical Tube Furnace

OD40mm High Temperature Tube Furnace Vertical Tubular Furnace 1400C

Side view for 1400C Hydrogen Vertical Tube Furnace

Technical Specifications

Model No. PTV D40/300/14
Heating zone
  • Heating zone length 300mm
  • Uniform temp zone: 150mm
Power supply 2KW AC230V, 50/60Hz, single phase
Working temperature
  • Tmax 1400°C
  • Continuously 1300°C
Temperature controller
  • 7" touchscreen panel with PLC controlled temperature setting, microprocessor-based PID control and self-tuning, touchscreen panel
  • Programmable segments for heating, cooling and dwelling.
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
Heating rate ≤20°C /min
Thermocouple S type
Chamber lining Mitsubishi raw material high alumina 1600 grade fiber board
Furnace tube
  • Alumina tube OD40
  • Temperature resistance 1400 degree C
Vacuum flanges
  • Pair of SS304 flanges with needle valves
Atmosphere gas Hydrogen, Argon, Nitrogen, etc
Heating element
  • SIC heating element
  • Note: Heating elements are consumable, and not covered by warranty, we recommend to order extra set of heaters as spareparts
Shipping info Weight: 120kgs W660xL980xH1600mm
Compliance CE, ISO
Warranty 2 years limited warranty with lifetime technical support

Application Notes

  • Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
  • 1400C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
  • To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
