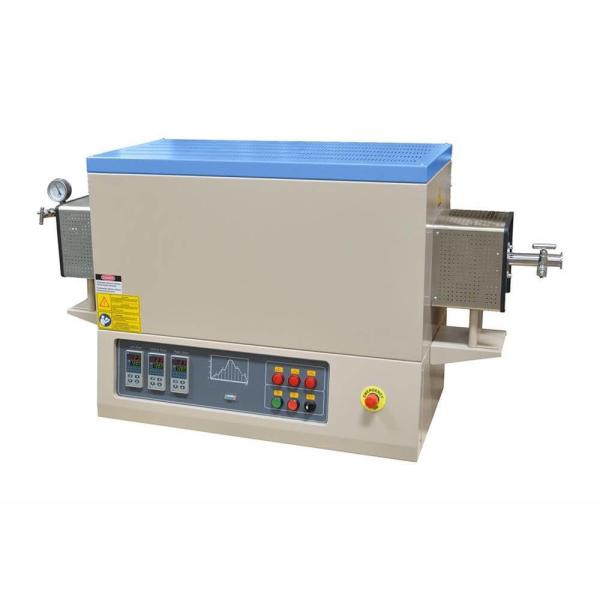

Product Overview for 3 heating zone 1700C Tube Furnace

1700C series multi heating zone tube furnace features high alumina ceramic tube with SS304 sealing flanges, heated by MoSi2 rods, Tmax 1700 degree C (1500C under high vacuum level). Microprocessor-based self-tuning PID provides excellent control with no overshooting and +/- 1 °C accuracy. Max vacuum level could be reached to 10E-3 torr with molecular vacuum pump. The 3 heating Zone Tube Furnace is widely used in vacuum and/or atmosphere protection sintering, including calcining inorganic compounds and/or preparing Li-Ion battery cathode powders with better uniformity in multiple gas controlled / CVD up to 1700°C.

Main Features

• Tmax 1700 °C
• Electric heated, 3 Heating zones, high temperature, vacuum tube furnace
• Dual steel structure, non-Split furnace chamber to protect minium heat loss
• Multiple atmosphere processes in a single cycle are available
• Max Vacuum level achieve 10E-3 torr worked with molecular pump
• Fiber-insulated chamber with powerful MoSi2 heating elemets ensure uniform temperature ensure uniform temperature
• Shimaden PID temperature controller with programmable 30 segments
• SS304 vacuum sealing flanges with valves and pressure meter included
• Dual flanges support provides better sealing and longer tube life
• Long life type B thermocouple
• CE certified, standard

Ramping, Dwelling, Cooling Curves for 1700 Series Tube Furnaces

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• 1700C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
• To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
