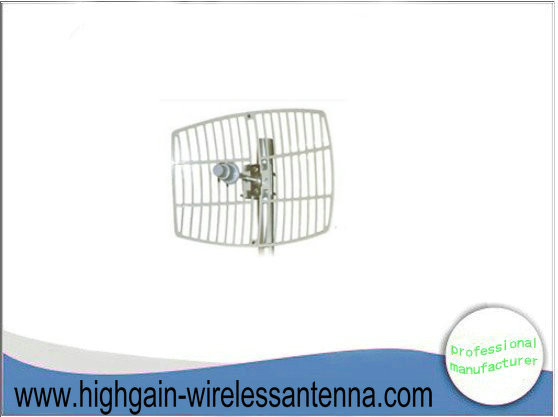

UV Stable Coat Directional 27 dBi 5.8GHZ WILAN Parabolic Grid Antenna For Wireless Bridge
UV Stable Coat Directional 27 dBi 5.8GHZ WILAN Parabolic Grid Antenna For Wireless Bridge
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
AMXGR-5800-27
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

UV Stable Coat Directional 27 dBi 5.8GHZ WILAN Parabolic Grid Antenna For Wireless Bridge

Application:
●5.8GHZ WILAN system
● Long-distance transmission
● Wireless bridge

Feature:
● High Gain, Larger F/B Ratio
● Die cast aluminum reflector
● UV stable coat finish
● Can be installed H or V

Specification

Model NO

AMXGR-5800-27

Electric Spec

Frequency rang-MHz

5725-5850

Bandwidth -MHz

125

Gain -dBi

27

beam width -°

H:6 V:9

F/B RATIO-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N-Type or Customized

Mechanical Specification

Size -mm

400*600

Cable length-m

0.3

Antenna weight-kg

3

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

Antenna details :

Application Example :

Install demonstration

View of us ;
