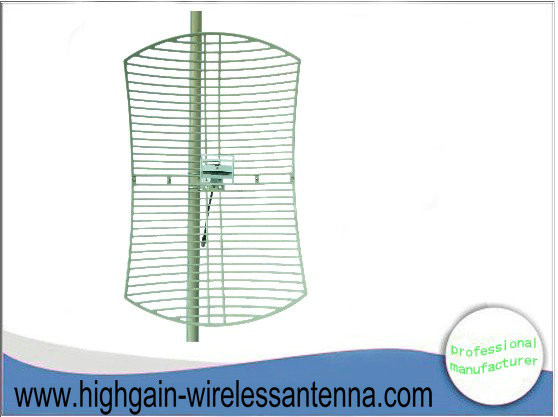

High Gain 2.4GHZ 24 dBi Parabolic Grid Antenna Directional 2400 - 2483 MHz U Clamp
High Gain 2.4GHZ 24 dBi Parabolic Grid Antenna Directional 2400 - 2483 MHz U Clamp
Specifications
Model Number :
RSGR-2400-24
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

High Gain 2.4GHZ 24 dBi Parabolic Grid Antenna Directional 2400 - 2483 MHz U Clamp

Feature:

● UV stable coat finish
● Can be installed H or V
● High Gain, Larger F/B Ratio
● Die cast aluminum reflector

Application:
● 2.4GHZ WIFI WILAN system
● Long-distance transmission
● Wireless bridge

Specification

Model NO

RSGR-2400-24

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

24

beam width -°

H:14 V:10

F/B RATIO-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N-Type or Customized

Mechanical Specification

Size -mm

600*900

Cable length-m

0.3

Antenna weight-kg

3.2

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

Antenna details :

Application Example :

Install demonstration

View of us ;
