Specifications
Brand Name :
PULLNER
Certification :
ISO9001/ISO14001/ISO45001
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100pcs per day
Delivery Time :
7-9 work days
Packaging Details :
Carton box after poly bag, 50pcs per carton.
Description

Product Description


PP Pleated OD 68.5mm Water Pleated Filter Cartridge

Application
Food and beverage: beer, wine filtration; juice and soda Filtration, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
Specification
Item
Technical Parameters
Filter medium
Polypropylene (PP)
Support/Drainage
Polypropylene (PP)
Core/Cage/End Cap
Polypropylene (PP)
Outside diameter
2.7" (68.5mm)
Length
10", 20", 30", 40"
Micron
0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration area
0.4-0.7m²
Max. operating differential pressure
ΔP≤0.35MPa at25℃
Max. operating differential pressure (reverse direction)
ΔP≤0.28MPa at60℃
Max. operating temperature
80℃(Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature
30 minute cycles @121℃
Max. operating pressure
4bar/21℃
2.4bar/80℃
Material Constructions
Filter media
Polypropylene (PP)
Support/Drainage
Polypropylene (PP)
Cage/Core/End caps
Polypropylene (PP)
Seal material
Silicone, NBR, Vit, EPDM
Company Profile
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
Shanghai Pullner Filtration Technology Co.,LTD.
Since: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.

China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.
Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
Pullner Laboratory

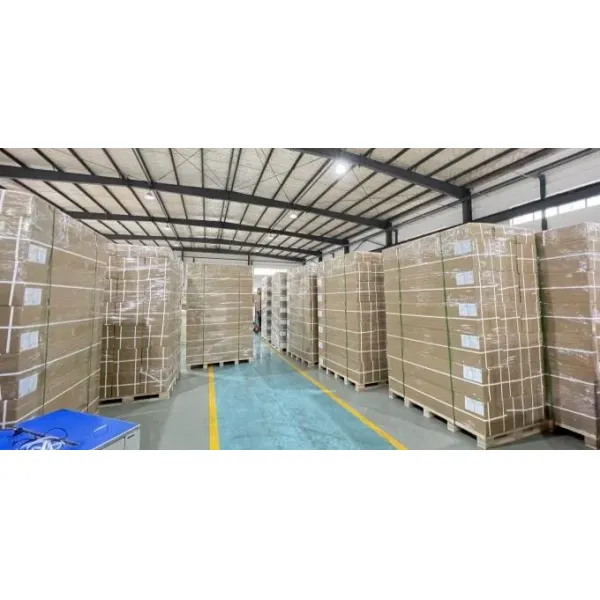

Packaging

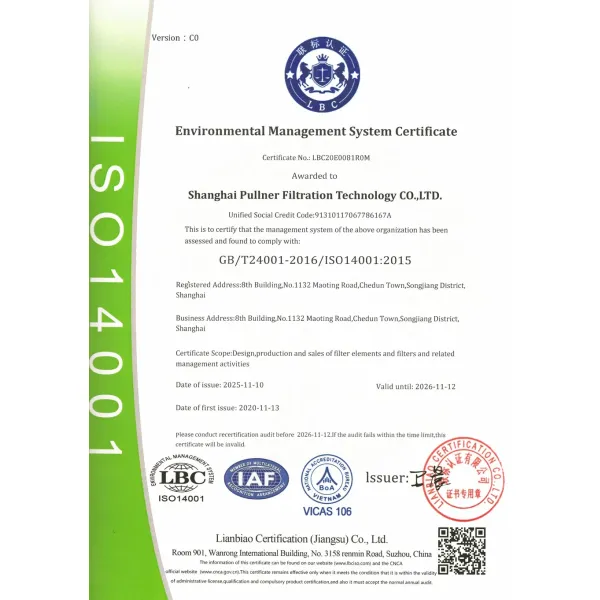

Certifications
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
FAQ
Q1: What is the brand name of this product?
A: The brand name is PULLNER.

Q2: What is the model number of this product?
A: The model number is PLZ.

Q:3 Where is this product manufactured?
A: This product is made in China.

Q4: What is the main function of this product?
A: The main function of this product is to filter beverages.

Q5: What is the recommended usage time for this product?
A: The recommended usage time for this product is 6-12 months.
