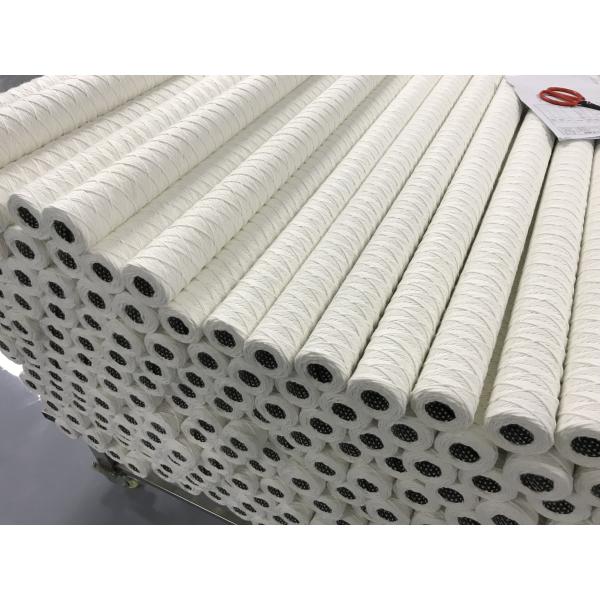

Power Station Condensate Water Filter Cartridges String Wound Filter Element PP/Cotton/GF
Power Station Condensate Water Filter Cartridges String Wound Filter Element PP/Cotton/GF
Specifications
Brand Name :
PULLNER
Model Number :
PHFX
Certification :
ISO 9001
Place of Origin :
Shanghai China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7-12 days
Packaging Details :
Customized wooden carton after poly bag. 200pcs per carton.
Length :
70"(1778mm), 60"(1524mm)
Filter medium :
PP, Glass fiber, Cotton
Filtration rating :
1um, 2um, 4um, 5um, 10um
Recommend Flow rate :
2.5m³/h/70"
name :
Water Filter Cartridges String
certification :
ISO 9001
Description

Power Station Condensate Water Filter Cartridges String Wound Filter Element PP/Cotton/GF

General Description

Powder resin cover filter and pre-filter is generally used in power plant condensate treatment system, the filtration element is installed inside , the film made of fiber powder and yin and yang resin powder can be applied on surface to achieve the purpose of filtration and desalination, when pressure at the filter inlet and outlet or the conductivity of the filter or the silicon reaches the set value, the filter is in a state of failure, the film goes into rupture and backwash will take place, and then it will be put into operation after film is applied .

Performance Specifications

OD 50mm, 60mm; Customized on request
ID 25mm, 28mm
Length 70"(1778mm), 60" (1524mm); Customized on request
Filter Medium Polypropylene, Cotton, Glass Fiber
Support Core Stainless steel 304/316L
Micron 1um, 5um (operating filters), 10um(start-up filters)
Max. operating temperature 85℃
Max. operating differential pressure 2.45Bar
Design Flow Rate 2.9m³/h-3.2m³/h
Connection Type Thread
Connection thread size M33×1.5, M33×2, G1", 1 3/16〃-24 BSW
Screw size M6, M8, M10

Features and Benefits:

* Length up to 70inch (1778mm), suitable for high flow/high contaminant applications

* High mechnical strength, no distortion happen even in critial process conditions

* Directly installed into existed housings, no need for any changes
