Description
60inches RO FRP Filter Housing for Corrosive Liquids
Product Overview

The P-FRP150 series FRP filter housing is specifically designed for corrosive liquid filtration applications including seawater desalination and pharmaceutical industries. This advanced filtration solution effectively addresses common issues with traditional filters such as corrosion, leakage, and degumming problems.

  • Single filter cartridge design for flexible system integration
  • Compatible with ultrafiltration and reverse osmosis systems
  • Configurable as multiple filter units based on site requirements
  • Superior corrosion resistance compared to stainless steel and carbon steel housings
  • High flow rate capability exceeding traditional filter cartridges
Technical Specifications
Component Material
Filter Housing FRP
Water Intake FRP
Saddle Rubber
Strapping Stainless Steel/Rubber/Brass
Strap Bolt Stainless Steel
Sealing EPDM/Silicone/Fluorine Rubber
Design Pressure 0.6MPa / 1.0MPa
Operating Temperature -10℃~65℃
Filter Cartridge Length 1028mm/1540mm
Filter Cartridge Diameter 152mm
Liquid Flow Direction Inside to Outside (Internal Pressure Type)
Design Flow 35m³/h
Product Configuration Codes
Code Filter Number Filter Length Inlet/Outlet Connection Sealing Material Design Pressure
P-FRP150 01 (1 Round) 20 (20") K65 (DN65) S (Silicone) Z (0.6MPa)

40 (40") K80 (DN80) E (EPDM) O (1.0MPa)

60 (60") K100 (DN100) V (FKM) C (Customize)




T (PTFE)
60 Inches Corrosion Resistant FRP Filter Housing with High Flow Rate for Seawater Desalination
Manufacturer Profile

Shanghai Pullner Filtration Technology Co., Ltd. is a renowned enterprise specializing in the research, development, production, and sales of micro membrane filtration equipment and comprehensive filtration systems.

Production Facilities

Our manufacturing plant features a 10,000 square meter 100,000-level Clean Room with over 10 production lines dedicated to various precision filter cartridges. We maintain strict quality control standards in accordance with international certification requirements, supported by a highly skilled technical R&D and verification team committed to delivering superior quality products.

Testing Laboratory

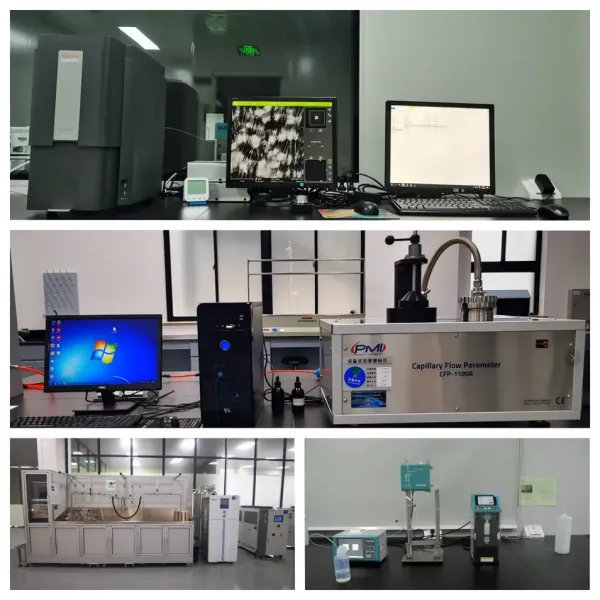

Our advanced laboratory is equipped with comprehensive testing facilities including aperture distribution instruments, water single-pass test benches, scanning electron microscopes, bacterial challenge labs, online particle detectors, diaphragm test benches, air permeability testers, filter cartridge integrity testers, and field condition simulation test trolleys. Our team of testing experts provides rapid solutions for diverse application conditions.

Quality Certifications
60 Inches Corrosion Resistant FRP Filter Housing with High Flow Rate for Seawater Desalination
Packaging & Shipping
60 Inches Corrosion Resistant FRP Filter Housing with High Flow Rate for Seawater Desalination
