Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration
Specifications
Brand Name :
PULLNER
Model Number :
FRP
Certification :
ISO19001/ISO45001/ISO14001
Place of Origin :
Shanghai, China
MOQ :
1 PC
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Export standard packaging
Description
FRP Filter Housing For Seawater Desalination And Pharmaceutical Industry

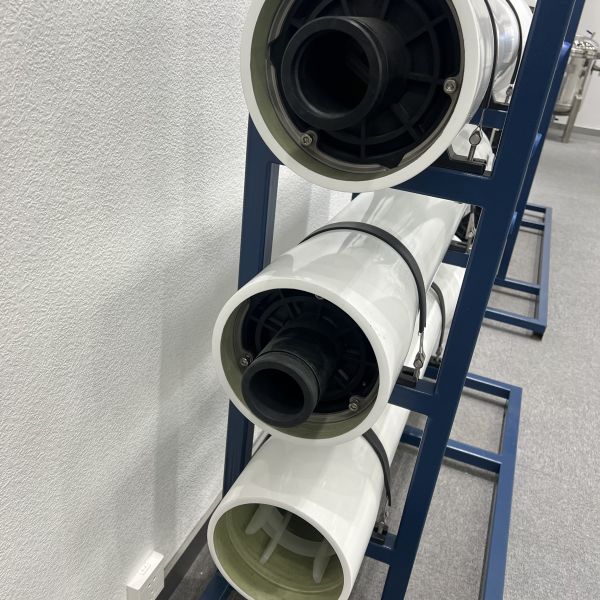

The P-FRP150 series FRP filter housing is especially suitable for the filtration of corrosive liquids such as seawater desalination, which effectively solves the problems of corrosion, leakage and degumming of traditional filters. The filter housing adopts a single filter cartridge design, which can be freely combined with ultrafiltration and reverse osmosis systems and can also be set into several filter units according to the site environment, which has strong adaptability to the site environment. HRP Series Horizontal Single FRP High Flow Cartridge Housing with good corrosion resistance, it can be widely used in the area which stainless steel and carbon steel housing can not be used. The flow rate of high flow cartridge is much higher than traditional filter cartridge.

Specification
Filter Housing FRP
Water Intake FRP
Saddle Rubber
Strapping Stainless Steel/Rubber/Brass
Strap Bolt Stainless Steel
Sealing EPDM/Silicone/Fluorine Rubber
Design Pressure 0.6MPa / 1.0MPa
Operating Temperature -10℃~65℃
Filter Cartridge Number 1
Filter Cartridge Length 1028mm/1540mm
Filter Cartridge Diameter 152mm
Liquid Flow Direction Inside to Outside (Internal Pressure Type)
Design Flow 35m³/h
Code Filter Number Filter Length Inlet / Outlet Connection Sealing Material Design Pressure
P-FRP150 01 (1 Round) 20 (20") K65 (DN65) S (Silicone) Z (0.6MPa)


40 (40 ") K80 (DN80) E (EPDM) O (1.0MPa)


60 (60 ") K100 (100) V (FKM) C (Customize)




T (PTFE)
Certifications

Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration

Corrosion Resistant FRP Filter Housing with High Flow Cartridge for Seawater Desalination and RO Prefiltration

Equipment Application Range

(1) electronic industrial water: pure water, distilled water, integrated circuit, silicon chip, display tube, etc.;

(2) the pharmaceutical industry: water infusion, injection, tablet, biochemical products, cleaning equipment etc.;

(3) industrial process water: chemical recycling water, chemical products manufacturing, etc.;

(4) the electric power industry boiler water supply: high pressure boiler power system of power boiler, factories and mines;

(5) water for food industry: drinking water for drinking water, beverage, beer, liquor, health care products, etc.;

(6) sea water, brackish water desalination: Island, ship, offshore drilling platform, brackish water area;

(7) drinking water, bottled water, mineral water, drinking water, drinking water school district;

(8) water, other papermaking, electroplating, printing and dyeing process of automobile and home appliance coating, coated glass, cosmetics, fine chemicals etc.
