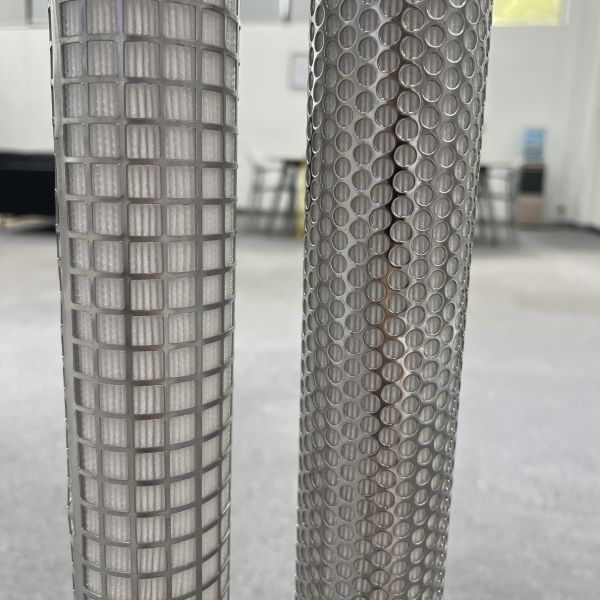

PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
Specifications
Brand Name :
PULLNER
Model Number :
PLZ
Certification :
ISO19001/ISO45001/ISO14001
Place of Origin :
Shanghai, China
MOQ :
10 PCS
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,T/T,D/P,Western Union
Packaging Details :
With Individual packing in carton box with poly bag.
Description
Item Technical Parameters
Filter medium Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)/Stainless Steel
Outside diameter 2.7" (68.5mm)
Length 10", 20", 30", 40"
Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration area 0.4-0.7m²
Max. operating differential pressure ΔP≤0.35MPa at25℃
Max. operating differential pressure (reverse direction) ΔP≤0.28MPa at60℃
Max. operating temperature 80℃(Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature 30 minute cycles @121℃
Max. operating pressure 4bar/21℃
2.4bar/80℃
Material Constructions
Filter media Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Cage/Core/End caps Polypropylene (PP)
Seal material Silicone, NBR, FKM, EPDM
Company Profile
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature

Shanghai Pullner Filtration Technology Co.,LTD.

Since: 2013

Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.

China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.

Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).

PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
Certifications
PLZ Series PP Pleated Filter Cartridge with Stainless Steel Outer Cage for 0.1um Micron Filtration and 80℃ Max Temperature
FAQ

Q1: What is the brand name of this product?

A: The brand name is PULLNER.

Q2: What is the model number of this product?

A: The model number is PLZ.

Q:3 Where is this product manufactured?

A: This product is made in China.

Q4: What is the main function of this product?

A: The main function of this product is to filter beverages.

Q5: What is the recommended usage time for this product?

A: The recommended usage time for this product is 6-12 months.
