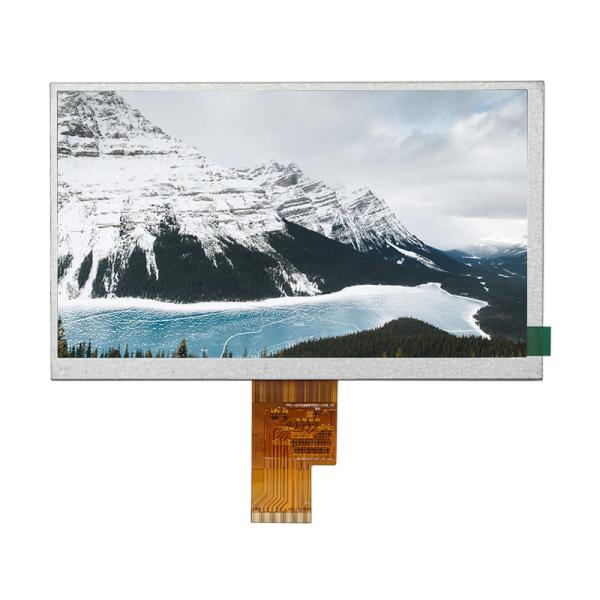

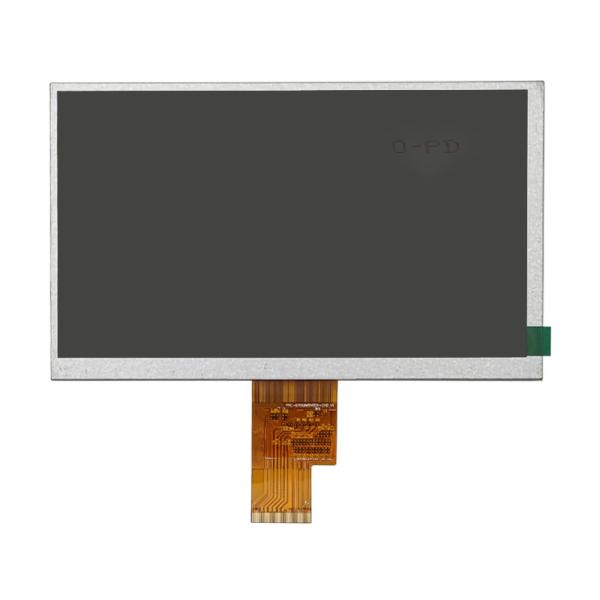

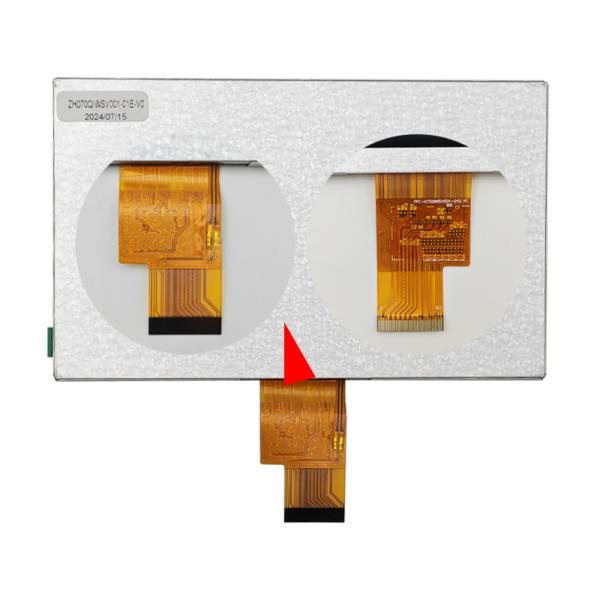

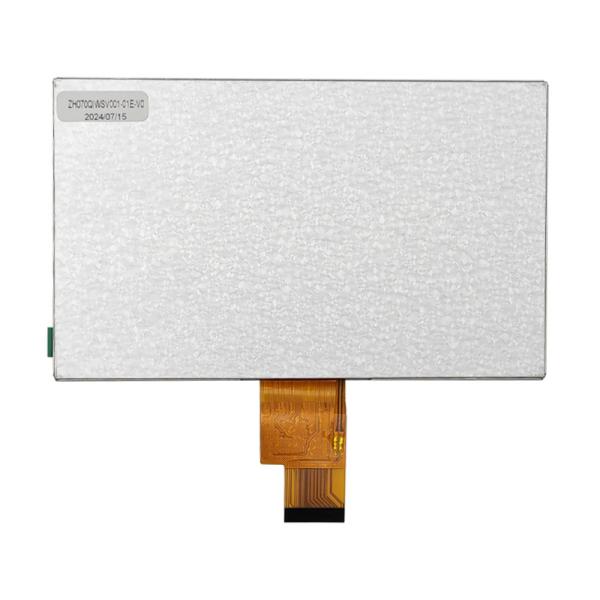

Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070QIWSV001-01E
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
1024x600
Brightness :
1150 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
165(W) x100.0(H) x 5.7(T) mm
Operating Temperature :
-30℃~+80℃
Description

Industrial 7 Inch High Brightness LCD Display 1024x768 with LVDS Interface

The ZH070QIWSV001-01E is 7.0 Inch High Brightness LCD Display. With a brightness of 1150 cd/m², this display ensures excellent visibility even under direct sunlight or in environments with high ambient light.

Whether you need a display for outdoor use or in harsh industrial settings, the ZH070QIWSV001-01E High Brightness LCD Display offers the reliability and performance required for your most demanding projects.

Applications of the ZH070QIWSV001-01E High Brightness LCD Display
Outdoor Digital Signage: With a brightness of 1150 cd/m², this display offers superior visibility in bright sunlight, making it ideal for digital signage in retail, transportation, and advertising sectors.

Industrial Control Systems: The ZH070QIWSV001-01E performs well in industrial environments, offering clear, readable visuals in harsh conditions, perfect for HMI panels, control systems, and machinery interfaces.

Interactive Kiosks and POS Systems: The optional touch panel allows businesses to incorporate the ZH070QIWSV001-01E into self-service kiosks, POS terminals, and information kiosks, providing an interactive experience with high durability and reliable performance.

Automotive Displays: This high-resolution LCD display is ideal for use in automotive dashboards, infotainment systems, and vehicle-mounted applications, where durability and visibility in varying lighting conditions are key.

Product Specification

item ZH070QIWSV001-01E
Screen Size 7.0 Inch
Resolution 1024x600
Brightness 1150 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 40pins Connector
Active Aera 154.21(W) x85.92(H) mm
Outline Dimension 165(W) x100.0(H) x 5.7(T) mm
Backlight 36-Chip white LED, 360mA 9.3V
Operating Temperature -30℃~+80℃
Storage Temperature -30℃~+85℃
Touch Panel Optional Touch Panel

Product Drawing

Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface

Industrial 7 Inch IPS High Brightness LCD Display 1024x768 With LVDS Interface

Why Choose the ZH070QIWSV001-01E High Brightness LCD Display?

Exceptional Brightness: With 1150 cd/m², this display provides unparalleled visibility in high ambient light, ensuring that your messages and visuals stand out, even in direct sunlight.

Wide Viewing Angles: The IPS technology ensures that your display remains clear and visible from all angles, providing a consistent viewing experience for users and customers.

Energy-Efficient: The LED backlighting helps reduce power consumption while maintaining high brightness levels, resulting in both cost savings and extended longevity of the display.

Wide Operating Temperature Range: The display is engineered to operate in extreme environments, making it ideal for both outdoor applications and harsh industrial settings.

Optional Touch Panel: The optional touch screen adds interactivity, enabling you to implement self-service kiosks and POS systems for a more user-friendly experience.

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
