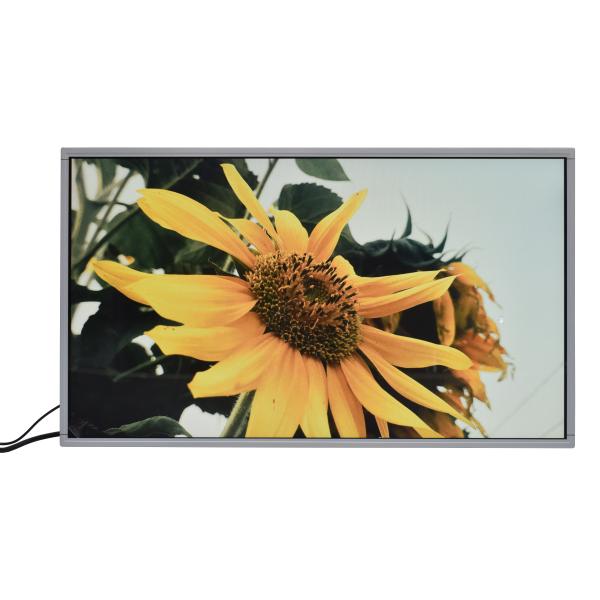

1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH320PIFHD002-02A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
32 Inch
Resolution :
1920x1080
Brightness :
500 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
725.23(W)x422.72(H)x14.40(T) mm
Operating Temperature :
0℃~+50℃
Description

1080p 32 Inch TFT LCD High Brightness Display with LVDS interface 1920x1080

The ZH320PIFHD002-02A is 32-inch High Brightness LCD Display engineered for industrial-grade reliability and professional display performance. Delivering a crisp 1920x1080 resolution, enhanced with 500 cd/m² typical brightness, and powered by IPS panel technology, this LCD screen ensures vibrant visuals and wide viewing angles across a variety of B2B applications.

With 51-pin LVDS interface and robust mechanical design, this High Brightness LCD Display is a dependable choice for integration into digital signage, control systems, kiosks, and more. Its full HD clarity and high luminance make it ideal for well-lit indoor environments where brightness and durability are essential.

This 32-inch High Brightness LCD Display is ideal for a wide range of business-critical environments:

Retail & Mall Digital Signage

Self-service Kiosks & ATMs

Industrial Control Interfaces

Medical Visualization Systems

Airport & Transit Display Boards

Gaming Machines & Entertainment Systems

Why Choose ZH320PIFHD002-02A for Your Project?
Full HD (1920x1080) Resolution – Perfect for professional-grade visual content

500 nits High Brightness – Clear visibility in bright indoor lighting

IPS Panel – Consistent, high-fidelity color from all angles

Robust Construction – Engineered for reliable long-term industrial use

Optional Touch Panel Support – Ready for interactivity as needed

Wide Operating Temperature Range – Designed for stable performance in varied conditions

Product Specification

Item Number ZH320PIFHD002-02A
Screen Size 32 Inch
Resolution 1920x1080
Brightness 500 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 51pins Connector
Active Aera 698.4(W) x 392.85 (H) mm
Outline Dimension 725.23(W)x422.72(H)x14.40(T) mm
Operating Temperature 0℃~+50℃
Storage Temperature -20℃~+60℃

Product Drawing

1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080

1080p 32 Inch TFT High Brightness LCD Display Panel With LVDS Interface 1920x1080

FQA

Q1: Is this High Brightness LCD Display suitable for continuous 24/7 operation?
A: Yes, the ZH320PIFHD002-02A is designed with industrial-grade durability and stability for continuous operation in demanding environments.

Q2: Can this model be customized with a touch screen?
A: Absolutely. A touch panel can be added as an optional feature, tailored to your B2B or OEM requirements.

Q3: Does it support easy integration into embedded systems?
A: Yes, the LVDS 51-pin interface provides robust connectivity for seamless integration into embedded or custom solutions.

Q4: Can I use this High Brightness LCD Display in a semi-outdoor application?
A: While primarily designed for bright indoor environments, the 500 cd/m² brightness allows usage in semi-outdoor enclosures with proper housing and thermal management.

Call to Action :

  • Upgrade your device visibility with this premium High Brightness LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
