Specifications
Brand Name :
OEM/Customized
Model Number :
ZH280PILHD001-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
28 Inch
Resolution :
1920x360
Brightness :
1500 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
732(W)x165(H)x16.8(T) mm
Operating Temperature :
0℃~+50℃
Description

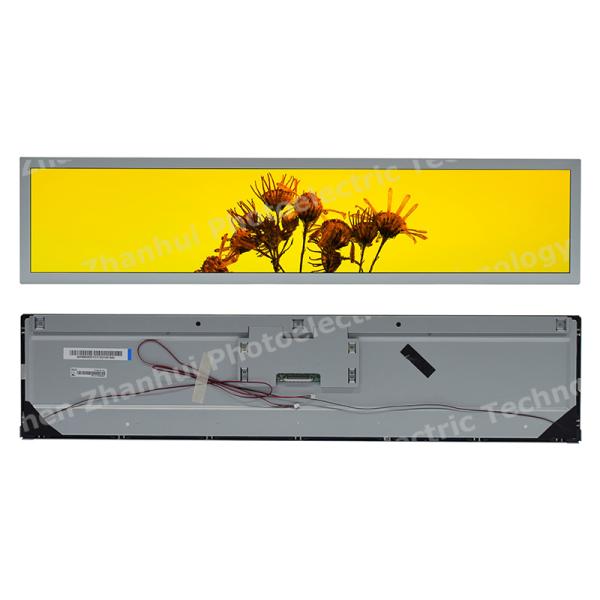

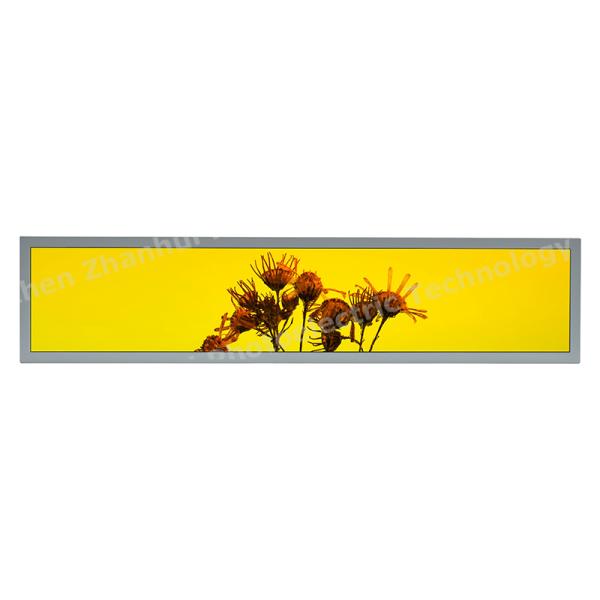

1500nits 28 Inch TFT LCD Display High Brightness Screen 1920x360 Resolution LVDS

The ZH280PILHD001-01A is 28-inch High Brightness LCD Display. With resolution 1920x360, an ultra-bright 1500 cd/m² brightness, and IPS technology, this display is ideal for demanding commercial and industrial applications. Whether used for digital signage, transportation displays, or control panels, this High Brightness LCD Display is designed to deliver high-quality visuals even in brightly lit conditions.

Its unique wide-format screen provides ample space for information display while maintaining crisp, clear visibility. With a 51-pin LVDS interface, the ZH280PILHD001-01A ensures seamless integration with existing systems, making it an ideal choice for OEM and industrial-grade solutions.

The LVDS interface supports stable signal transmission and low power consumption, making this High Brightness LCD Display energy-efficient while maintaining exceptional brightness levels.

Target Applications
Transportation Signs (Bus, Subway, Airport)

Retail Shelf-Edge Displays

Industrial Control Panels

Digital Advertising Boards

Ticker and Status Displays in Manufacturing or Finance

Why Choose the ZH280PILHD001-01A High Brightness LCD Display?
1.1500 cd/m² Brightness for optimal outdoor and high-ambient light performance

2. IPS Panel for exceptional color accuracy and wide viewing angles

3. Long-lasting, 30,000-hour lifetime ensuring minimal downtime and lower maintenance costs

4. Wide range of applications, from digital signage to industrial control panels

5. LVDS interface for seamless integration with existing systems

6. Perfect for OEM customization in commercial displays and signage solutions

Product Specification

Item Number ZH280PILHD001-01A
Screen Size 28 Inch
Resolution 1920x360
Brightness 1500 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 51pins Connector
Active Aera 699.84(W)x131.22(H) mm
Outline Dimension 732(W)x165(H)x16.8(T) mm
Lifetime 30,000 Hrs(Typ.)
Operating Temperature 0℃~+50℃
Storage Temperature -20℃~+60℃

Product Drawing

1500nits 28 Inch High Brightness LCD Display 1920x360 Resolution LVDS TFT LCD Screen

1500nits 28 Inch High Brightness LCD Display 1920x360 Resolution LVDS TFT LCD Screen

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium High Brightness LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
