Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101HH058-04
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1280x800
Brightness :
600 cd/m² (Typ.)
Display type :
IPS, Normally Black
Outline Dimensions :
229.26(W) x148.9(H)x2.5(T) mm
Operating Temperature :
0℃~+55℃
Description

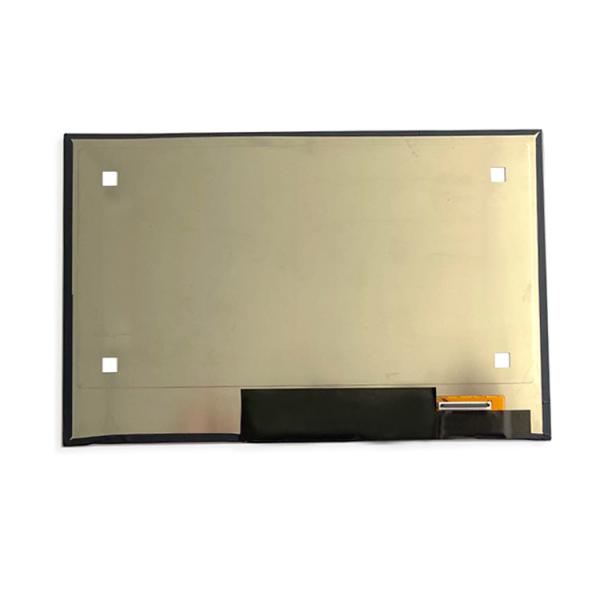

10.1 Inch LVDS Interface LCD Display Screen with 1280x800 Resolution 600nits Brightness

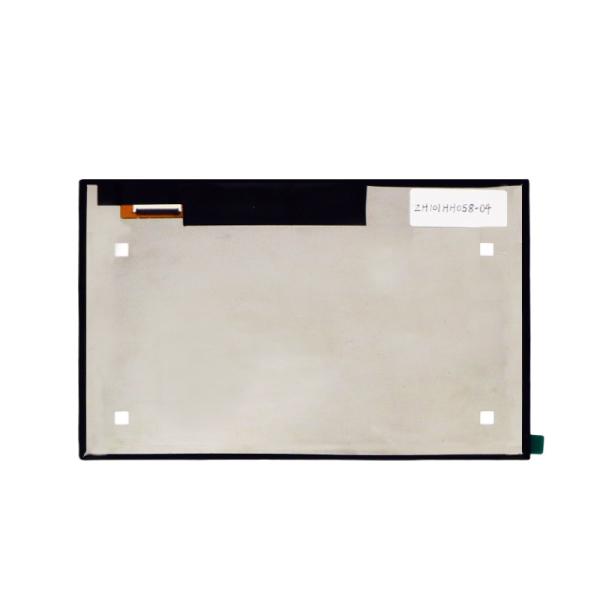

ZH101HH058-04 is a 10.1-inch High Brightness LCD Display with IPS panel, resolution up to 1280x800, brightness up to 600 nits, and wide viewing angle, providing clear and sharp visual effects even in direct sunlight.

10.1 Inch LCD with High Brightness LCD Display 600 nits: Perfectly suited for both indoor and outdoor environments—ensuring visibility in sunlight and glare-prone areas.

10.1-inch TFT LCD moduel-outline dimension: (2.5mm Thickness) Integrates easily into space-constrained applications.

10.1 inch High Brightness LCD Display-LVDS Interface with 40 Pins: Supports stable, high-speed data transmission with reduced EMI, enhancing compatibility with a wide range of system boards.

Industrial 10.1 Inch IPS LCD module- Temperature Range (0°C ~ +55°C Operation): Built to perform reliably in demanding conditions.

Applications for 10.1 inch High Brightness LCD Display :

Industrial control HMI panels

Vehicle infotainment & fleet tracking systems

Medical diagnostic equipment

Smart POS terminals

Embedded solutions and IoT devices

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

Item Number
ZH101HH058-04
Screen Size 10.1 Inch
Resolution 1280x800
Brightness 600 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 40pins Connector
Active Aera 216.96(W) x135.6(H) mm
Outline Dimension 229.26(W) x148.9(H)x2.5(T) mm
Backlight 42-Chip White LED, 280mA 9.9V
Operating Temperature 0℃~+55℃
Storage Temperature -20℃~+60℃
Touch Panel Optional Touch Panel

Product Drawing

1280x800 600nits High Brightness LCD Display 10.1 Inch LVDS Interface LCD Display Screen

1280x800 600nits High Brightness LCD Display 10.1 Inch LVDS Interface LCD Display Screen

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium High Brightness LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
