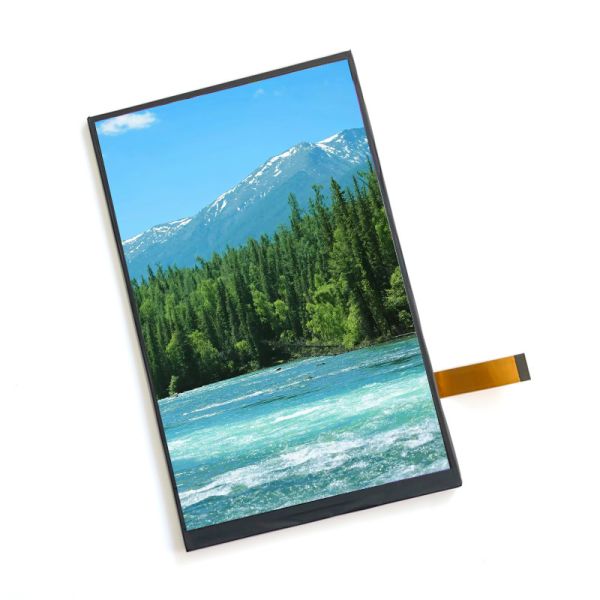

7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070HH106-03
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Module Size :
7.0 Inch
Resolution :
800x1280
Brightness :
300 Cd/m² （Typ.）
Display Type :
IPS,Normally Black
Outline Dimensions :
99.85(W) X161.7(H) X 2.6 (T) Mm
Operating Temperature :
-20℃~+60℃
Description

7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD


The 7 inch HD TFT LCD display is a reliable performance screen designed for multi-scenario applications. Featuring 800×1280 HD resolution and 300nits high brightness, it delivers clear visuals and vivid colors. With wide temperature adaptability, it ensures stable operation in harsh environments, making it highly versatile.

Focused on practicality, this display supports flexible integration. It is well-suited for portable devices, industrial control terminals, vehicle-mounted displays, medical auxiliary equipment and smart home controls, meeting diverse user needs with its adaptable design.

Key Features

  • 7 Inch TFT LCD Display
Compact size, ideal for space-limited portable devices and embedded systems. It maintains a sufficient effective display area to ensure a comfortable viewing experience.
  • 800x1280 HD TFT LCD Screen
Equipped with 800×1280 HD resolution and 300nits high brightness, it presents sharp details and bright visuals, fully meeting the display requirements of various industrial and consumer scenarios.
  • Wide Temperature
Supports wide temperature operation, enabling stable performance in extreme high or low temperature environments. It is suitable for outdoor, industrial and other harsh working conditions.

Applications

  • Portable intelligent terminals
  • Industrial control and HMI terminals
  • Vehicle-mounted display devices
  • Medical auxiliary monitoring equipment
  • Smart home control panels


Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems


Product Specification

Part Number ZH070HH106-03
Size 7.0 inch
Resolution 800x1280
LCM Luminance 300cd/m² (Typ.)
Display Mode IPS(Normally Black)
Viewing Angle 89/89/89/89 (Typ.)
Interface MIPI, FPC 31pins
Dot Pitch 0.03925(W)x0.11775(H) mm
Active Area 94.2(W)x150.72(H) mm
Outline Dimension 99.85(W)x161.7(H)x2.6(T) mm
Contrast Ratio 800:1 (Typ.)
Backlight Type 20-chip WLEDs(4S5P), 15.5V/80mA
Response Time 20(Typ.)(Tr+Tf) ms
Lifetime 20000Hours (Min.)
Driver IC ILI9881C
Operating Temperature -20℃~+60 ℃
Storage Temperature -30℃~+70℃
Touch Panel Optional Capacitive Touch Panel
Accessories/Kits HD-MI board Kits + backlight driver board+cables


Product Drawing

7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD

7 Inch HD TFT LCD Display 800x1280 300nits Wide Temperature LCD

Why Choose ZhanHui High Brightness LCD Display?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness


FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium Wide Temperature LCD!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
