5.98 Inch 1440x2560 HD IPS MIPI 4-Lane Interface TFT Display 300nits Wide Temperature Custom Touch Screen

This industrial-grade display module is engineered for professional applications demanding ultra-high definition and precision. Featuring a 1440x2560 hd tft display with an IPS panel, it delivers superior pixel density and color accuracy (16.7M colors). Built with a high-speed hd mipi interface display (4-Lane) and supporting an optional 5.98 inch custom touch screen (CTP or RTP), this module ensures seamless integration for high-end devices. With a wide operating temperature range of -20°C to +70°C, it provides stable performance in demanding industrial environments.

Technical Advantages

• 2K Ultra-High Resolution & IPS Panel:

Boasting a resolution of 1440x2560, this screen offers exceptional clarity and detail, making it perfect for optical instruments and detailed graphical interfaces. The IPS technology ensures wide viewing angles (80/80/80/80 Typical), providing consistent visuals from all directions.

• High-Speed Data Transmission:

Equipped with a MIPI 4-Lanes Interface (30 pins) and driven by the powerful NT35598 IC, this display supports the high bandwidth required for 2K visuals while maintaining low power consumption and signal stability.

• Wide Temperature & Industrial Reliability:

Designed for harsh environments, the module operates reliably between -20°C and +70°C and withstands storage temperatures from -30°C to +80°C. The backlight system is rated for 30,000 hours (Typ.), ensuring long-term operational longevity.

• Customization & Integration Support:

We support diverse customization needs to accelerate your product development. While the standard brightness is 300 cd/m², we offer optional touch panel integration (Capacitive or Resistive). Furthermore, we provide a range of compatible accessories and services, including but not limited to: HDMI interface boards, driver boards, custom cover glass (with logo, camera hole, etc.), and flexible cable options to meet your specific integration requirements.

Application Scenarios

• High-End Industrial HMIs & Control Panels
• Medical Diagnostic & Imaging Equipment
• Professional Test & Measurement Instruments
• Automotive Diagnostic Tools & Navigation Systems
• Interactive Kiosks & Advanced POS Systems

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

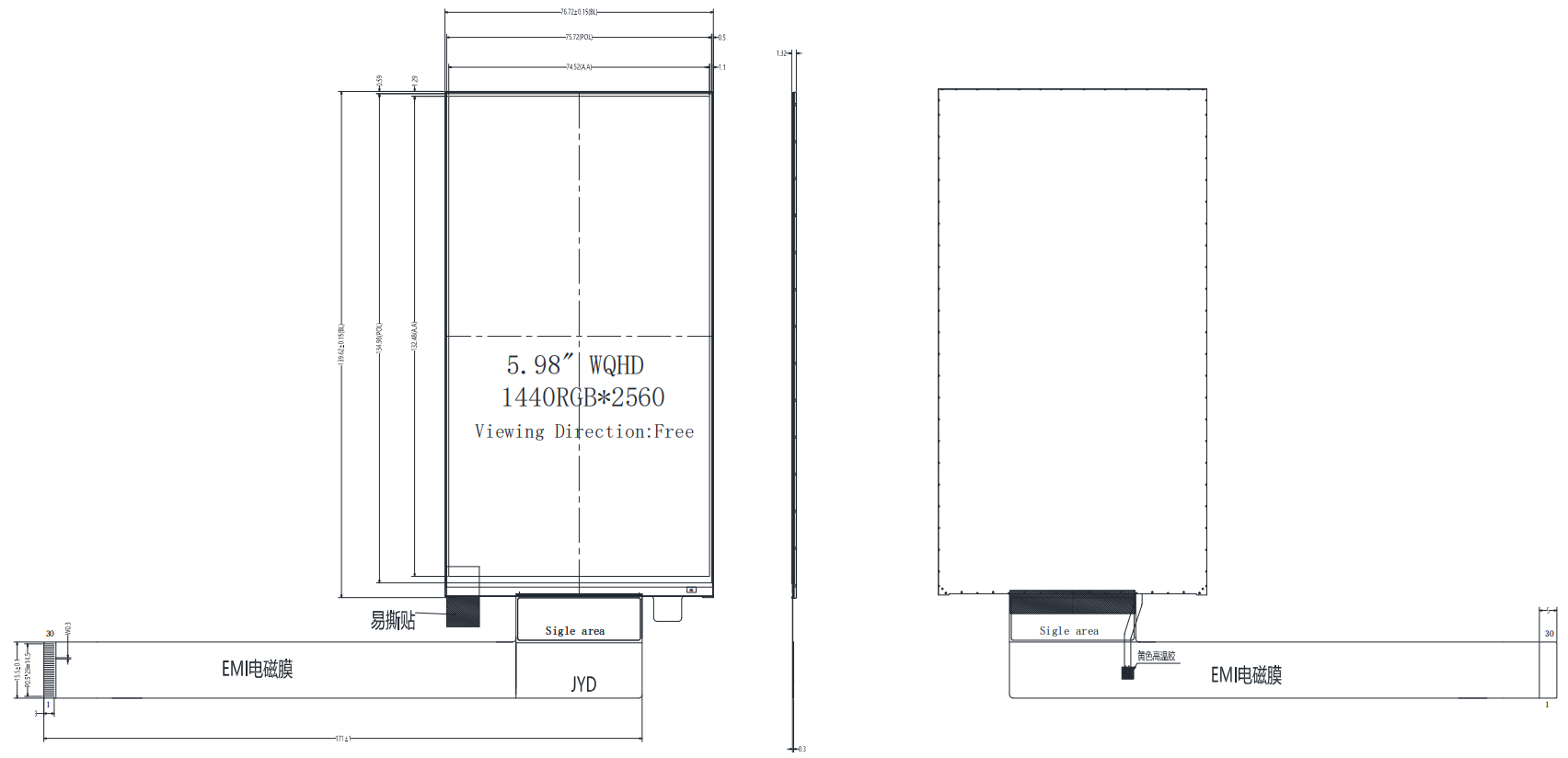

Product Drawing

Why Choose ZhanHui High Brightness LCD Display?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Get Your Solution & Support

Integrate this display into your project:

• Request quote/datasheet (CAD, specs, pricing for ZH598AH01-02)

• Discuss customization (size, brightness, interface, touch.

• Get technical integration guidance.

[Contact Us for Quote & Datasheet] or [Submit Your Project Specs]

Service & Warranty

We are committed to reliable products and seamless collaboration for every business partner.

• Quality Assurance: Strict industrial-grade testing

• Expert Support: Full guidance (selection → integration → after-sales)

• Flexible Cooperation: Samples, pilot runs, bulk production

• Global Service: Efficient logistics + local support
