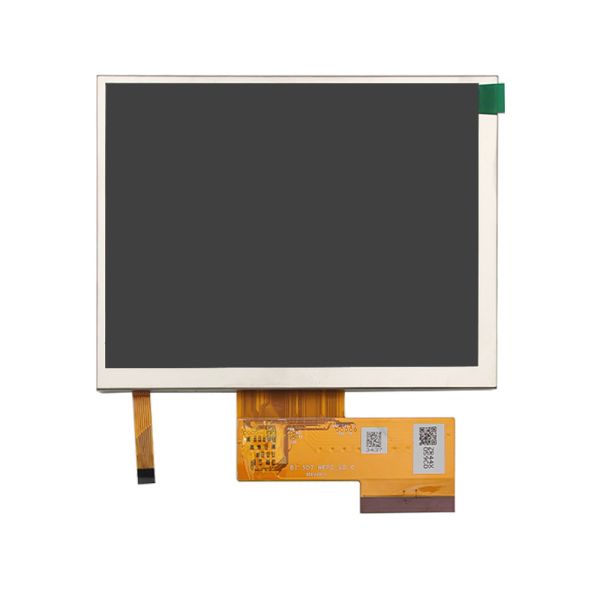

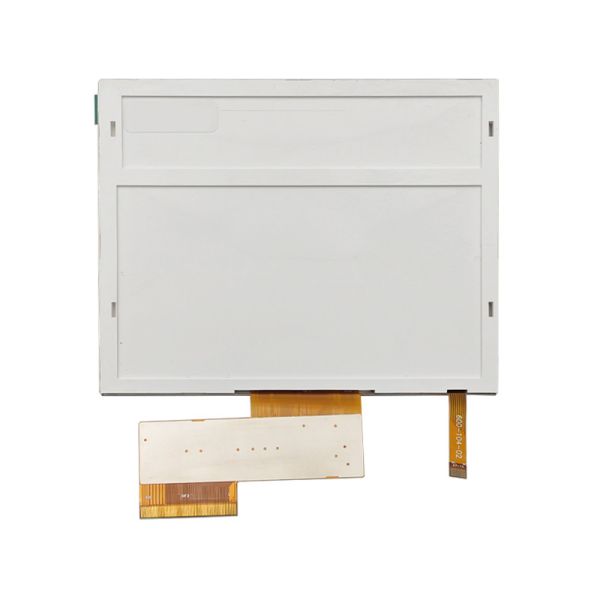

5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH057PIVGA001-03A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
5.7 Inch
Resolution :
640x480
Brightness :
600 Cd/m² （Typ.）
Display Type :
IPS, Normally Black
Outline Dimensions :
127(W) X 98.43 (H) X5.9(T) Mm
Operating Temperature :
-20℃~+70℃
Description

5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module

This 5.7 inch industrial high-brightness LCD module is a reliable component designed for harsh environments. Featuring 600 nits of high brightness and a resolution of 640×480, it ensures clear visibility even under strong lighting, with stable and durable performance. Its compact and rugged design guarantees broad applicability across various industrial scenarios.

Centered on environmental adaptability, this module supports flexible integration. It is well-suited for outdoor equipment, industrial handheld terminals, vehicle-mounted displays, surveillance systems, and self-service kiosks, meeting the dual demands of visibility and reliability across multiple professional fields.

Key Features

  • 5.7 Inch Industrial LCD Display

Designed for mobile and embedded devices, its compact size saves installation space. The robust construction ensures it can withstand vibration and impact, making it suitable for stable operation in complex environments such as industrial sites.

  • 640x480 Resolution and 600 Nits High Brightness

Utilizing VGA resolution, it delivers clear and stable display content. With a brightness of up to 600 nits, it offers excellent visibility under direct sunlight or strong ambient light, meeting the requirements of outdoor and high-illumination industrial applications.

  • Industrial-Grade TFT LCD Module

The module is designed for wide temperature ranges and high reliability, supporting long-term continuous operation. With standard interfaces, it is easy to install and integrate, providing a plug-and-play display solution for various industrial applications.

Application

  • Outdoor portable devices and handheld terminals

  • Industrial human-machine interfaces and control systems

  • Vehicle-mounted information displays and navigation equipment

  • Surveillance system display units

  • Self-service terminals and POS machines

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems


Product Specification


item ZH057PIVGA001-03A
Screen Size 5.7 Inch
Resolution 640x480
Brightness 600 cd/m²(Typ.)
Interface SPI+RGB&LVDS interface, 60pins Connector
Driver IC JD9168S
Display Mode
IPS, Normally Black
Active Aera 115.2(W) x114.15(H) mm
Outline Dimension 127(W) x 98.43 (H) x5.9(T) mm
lifetime 30000Hrs.
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel


Product Drawing

5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module

5.7 Inch Industrial High Brightness LCD Display 640x480 600 Nits TFT LCD Module




Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness


FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!


Call to Action :

  • Upgrade your device visibility with this premium High Brightness LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
