High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
Specifications
Place of Origin :
China Mainland
Packaging Details :
carton
MOQ :
1
Model Number :
MY-HKC
Delivery Time :
1 week
Brand Name :
MINGYANG
Price :
2200usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Net weight :
24kg
Place of origin :
Hubei, China
Supply Ability :
1000pcs/month
Description
Vacuum Switch Vacuum Degree Tester for High Voltage Circuit Breaker
Professional vacuum degree testing instrument for high voltage circuit breakers, manufactured in China with precision engineering for accurate vacuum measurement in various industrial applications.
Product Parameters
Parameter Specification
Test Object Various types of vacuum switch tubes
Test Method Non-disassembly measurement of vacuum tubes using a new excitation coil
Scope of Application Multi-purpose instrument for measuring various types of vacuum switches
Measuring Range 10⁻⁵～10⁻¹ Pa
Measurement Accuracy 10⁻⁵～10⁻⁴ Pa: 10%
10⁻⁴～10⁻³ Pa: 10%
10⁻³～10⁻² Pa: 10%
10⁻²～10⁻¹ Pa: 10%
Magnetic Field Voltage 1700V
Pulsed Electric Field High Voltage 30kV
Switch Tube Opening Distance Normal use of open distance
Use Environment -20℃~40℃
Host Weight 24kg

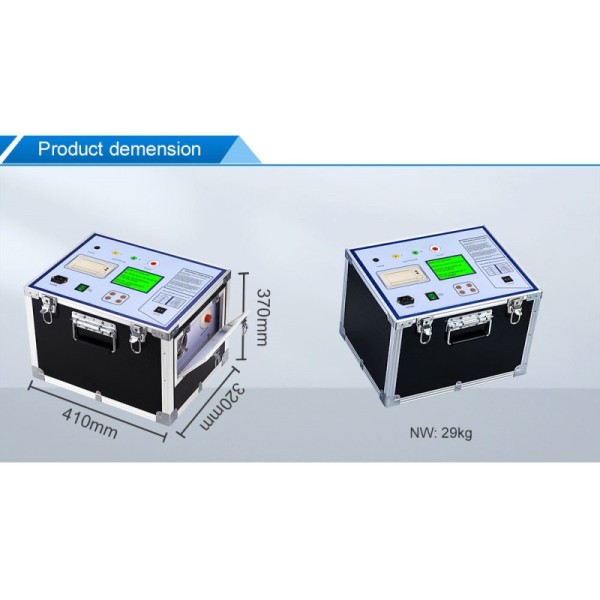

Dimensions 410×320×370mm³
Sampler Magnetron coil
Features & Characteristics
  • Quantitative measurement of vacuum degree for various model vacuum switch arc extinguishing chambers
  • No disassembly required during on-site measurement
  • Accurate and reliable test results
  • Simple and convenient operation
  • Save, print, and view test data functionality
  • Widely used in power, steel, petrochemical, textile, coal, railway and other industrial sectors
  • Lightweight and portable design for easy transportation

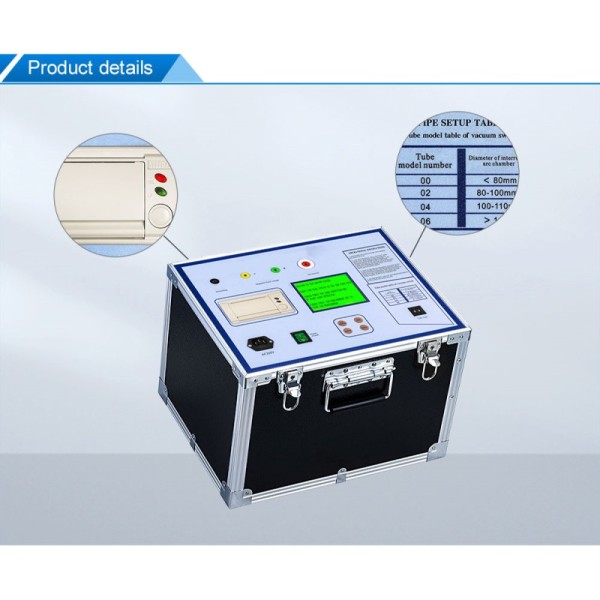

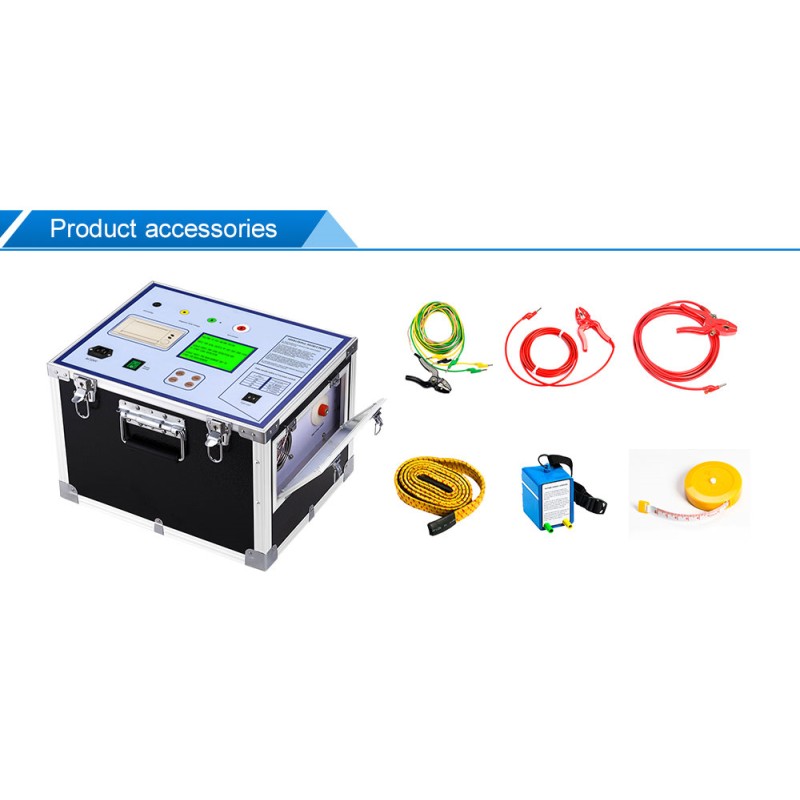

Product Images
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
