Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Specifications
Brand Name :
MINGYANG
Model Number :
MY-GK
Place of Origin :
China Mainland
MOQ :
1
Price :
1600usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Warranty :
2 Years
Power :
Electronic
Place of origin :
Hubei, China
Resolution(Time): :
0.1ms
Resolution(Speed): :
0.01m/s
Customized support :
OEM, ODM, OBM, Software Reengineering
Measurement range(time): :
4000.0ms
Measurement range(Speed): :
20.00m/s
Measurement range(Current): :
20.00A
Output power supply :
DC30~250V digital
Description
Dynamic Characteristic Circuit Breaker Tester
High Voltage Switch Test Set Circuit Breaker Analyzer for comprehensive electrical testing applications.
Product Overview
This circuit breaker analyzer is designed for testing all types of SF6 switches, GIS switchgear, vacuum switches, and oil switches with metal contacts manufactured domestically and internationally.
Key Features
  • Universal speed sensors, linear travel sensors, and rotation sensors for convenient installation
  • Large transmissive LCD screen with electronic contrast adjustment and English menu prompts
  • Stores multiple sets of switch test results with real-time clock for accurate documentation
  • Built-in high-speed micro-printer for comprehensive data and illustration output
  • Windows-compatible data analysis management software for computer-based field testing
  • Advanced data analysis capabilities for comprehensive circuit breaker mechanical characteristic evaluation
  • User-customizable speed programming for adding various instantaneous opening and closing speeds
Performance Characteristics
Time Measurement
Intrinsic switch off/on time, 12-break phase synchronization analysis
Reclose Timing
Switch on-switch off, switch off-switch on, and complex sequence timing
Process Analysis
A-time, two-minute, short-time, and no-current time value measurements
Bounce Analysis
Switch on bouncing time, frequency, process, waveform, and rebound amplitude
Speed Analysis
Instantaneous opening/closing speeds, maximum speed, time-travel characteristic curves
Travel Measurement
Total travel, opening, overtravel, overshoot travel, and rebound amplitude
Current Analysis
Switch off/on coil currents with comprehensive oscillogram display
Operating Power
DC 30-250V/20A digital regulated power supply with automatic low-pressure testing

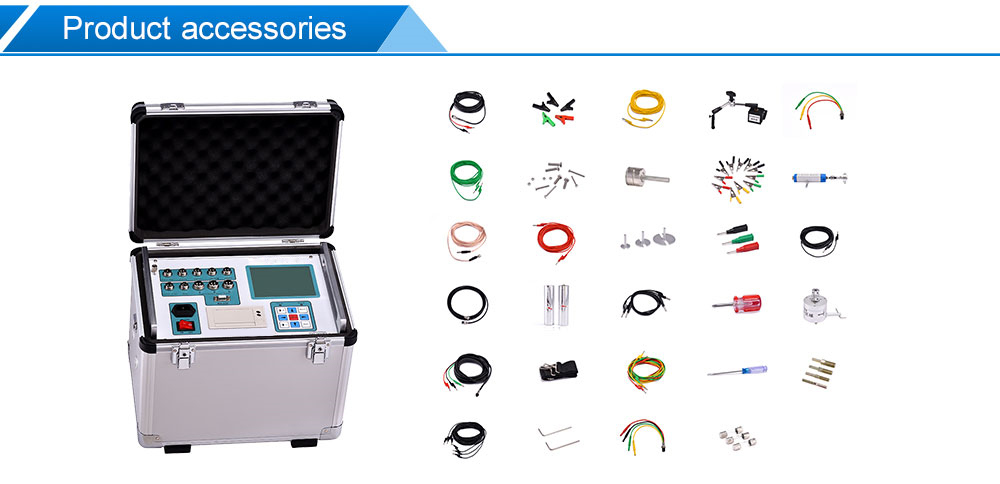

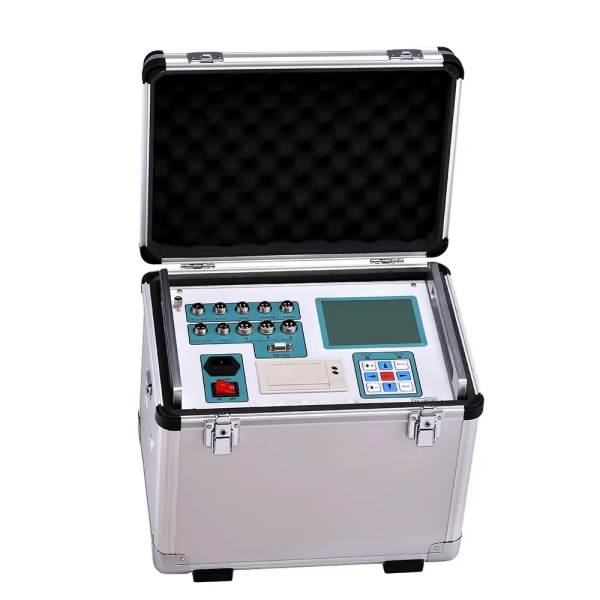

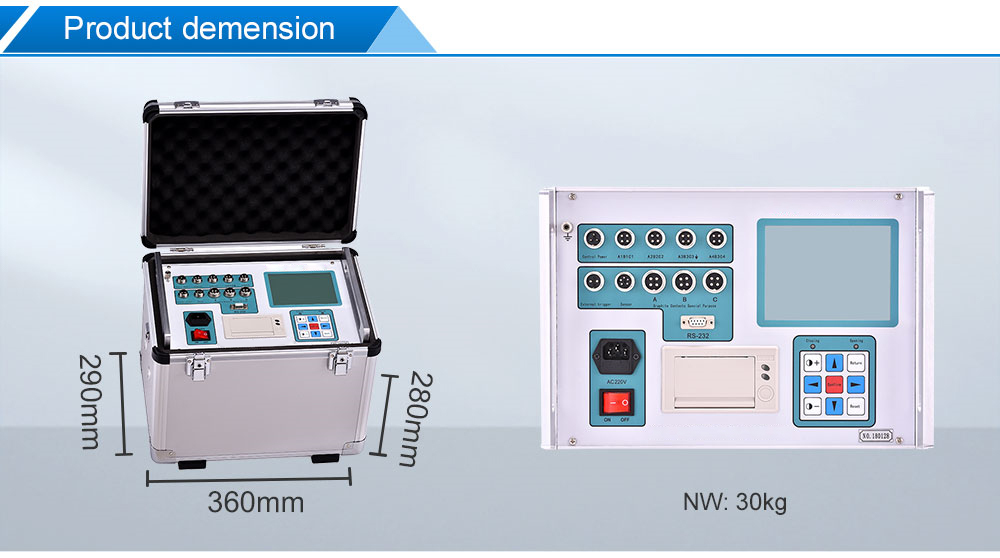

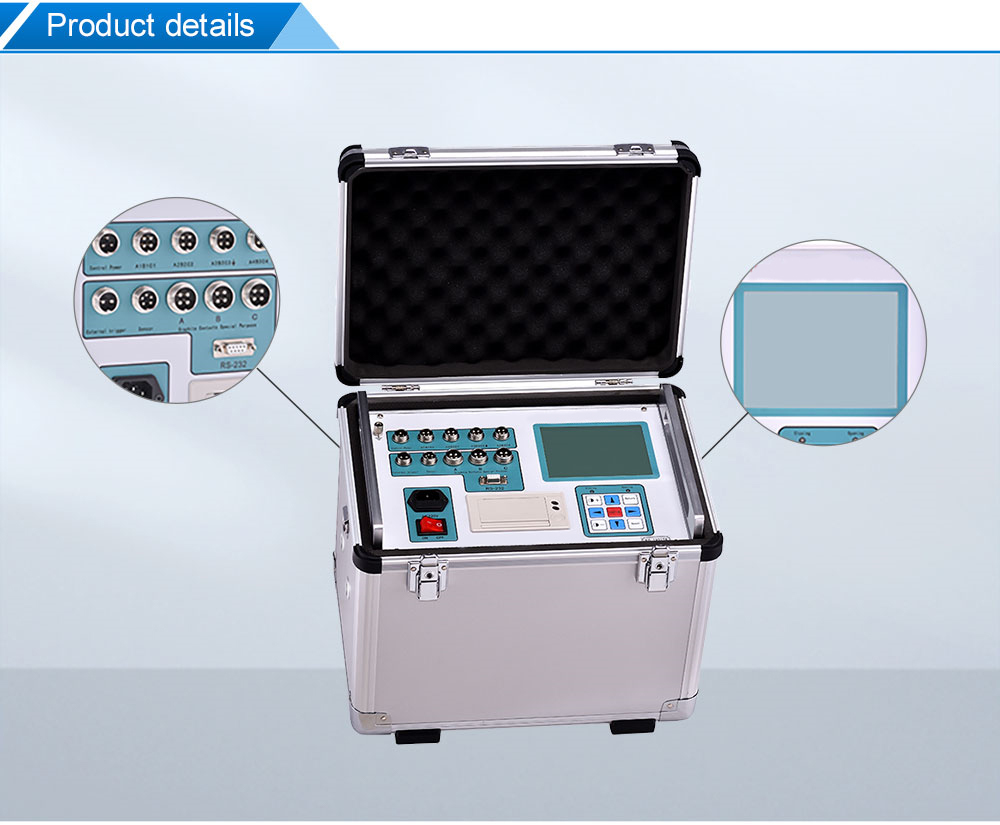

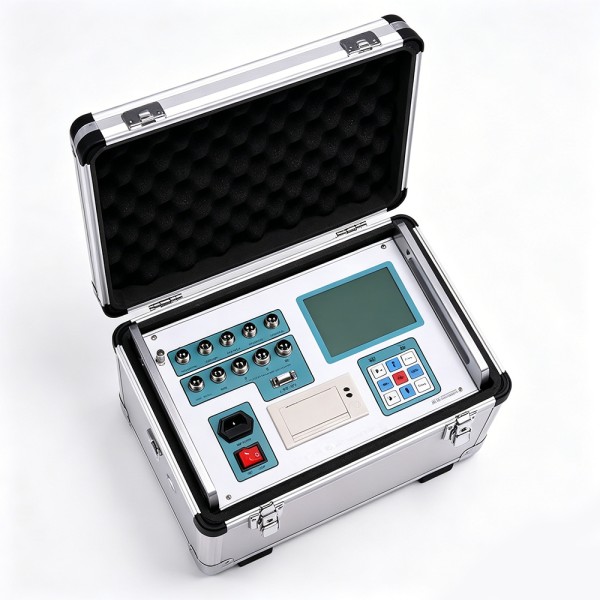

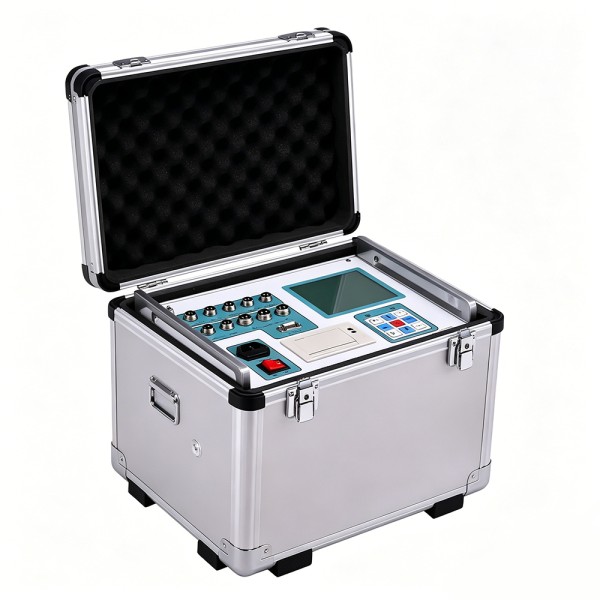

Product Images
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches Circuit Breaker Dynamic Characteristic Tester, 0.1ms Resolution, 20A Range, for High Voltage Switches
