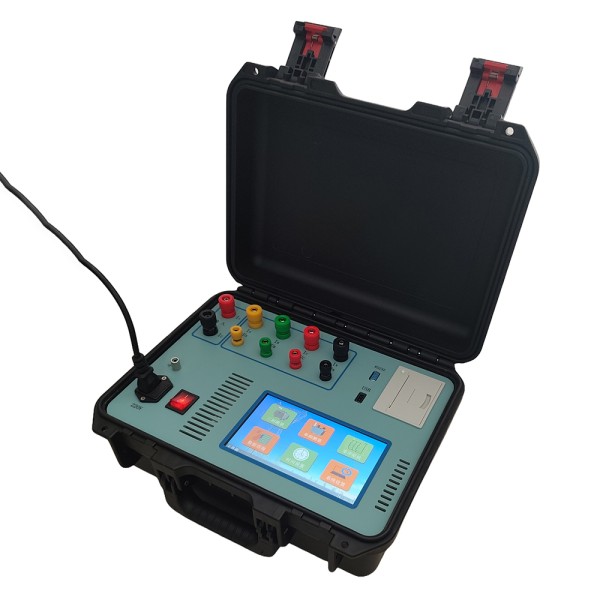

Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Specifications
Brand Name :
MINGYANG
Model Number :
MYL
Place of Origin :
Hubei, China
MOQ :
1
Price :
1800usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Measuring Range :
1-1999μΩ
Accuracy Class :
High Accuracy
Operating Temperature :
-10℃~40℃
Time Resolution :
1s
Current Resolutio :
1μΩ
Resolution :
1μΩ
Measurement accuracy :
0.5%
Measurement range :
1-1999μΩ
Working power supply :
AC220V ± 10%, 50Hz ± 1Hz
Weight :
12kg
Display mode :
three-and-a-half-digit LCD
Volume :
380*350*260 mm
Type :
Testing Machine
Protection Class :
IP65
Customized support :
OEM, ODM, OBM
Accuracy :
±0.5%
Test Current :
0.1A~ 100A
Application :
Transformer test
Voltage :
220 V, Other
Warranty :
2 Years
Power :
AC 220V±10%
Place of origin :
Hebei, China
Short-circuit Impedance :
0~100%
Repeatability and Stability :
Ratio error <0.2%, angle error <0.02°
Short-circuit Impedance Accuracy :
±0.5%
Power Supply :
AC 220V±10% 50Hz±1Hz
Relative Humidity :
≤85%RH, NON-CONDENSING
Description
Standard Transformer Low Voltage Short Circuit Impedance Tester
Professional on-site test equipment designed for field testing of transformers, providing accurate short-circuit impedance measurements in various industrial settings.
Key Features & Benefits
  • High Measurement Accuracy: Advanced digital technology ensures high-precision impedance voltage and load loss measurement, providing reliable results for transformer testing.
  • Three-Phase Automatic Testing: Supports three-phase transformer testing in one connection, greatly improving efficiency and reducing manual wiring errors.
  • Portable & Field Ready: Compact and rugged design makes the instrument ideal for substation maintenance, transformer factories, and field testing applications.
Testing Capabilities
3-Phase Short-Circuit Impedance Test: Displays three-phase voltage, three-phase current, and three-phase power; automatically calculates the impedance voltage percentage of the transformer converted to the rated temperature and rated current, and the error percentage of the impedance on the nameplate.
Single-Phase Short-Circuit Impedance Test: Measures the short-circuit impedance of single-phase transformers with precision and reliability.
Product Gallery
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Field testing setup with clamp transformers
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Measurement setup and configuration
Low Voltage Short Circuit Impedance Tester On Site Test Equipment For Field Testing
Detailed controls and electrical connections
