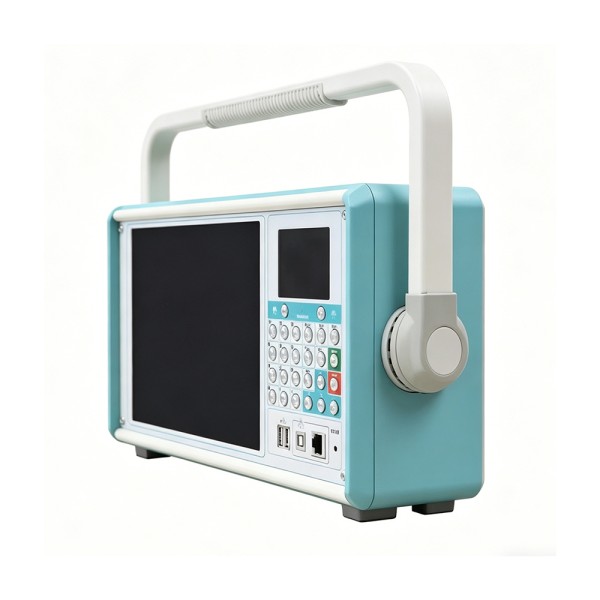

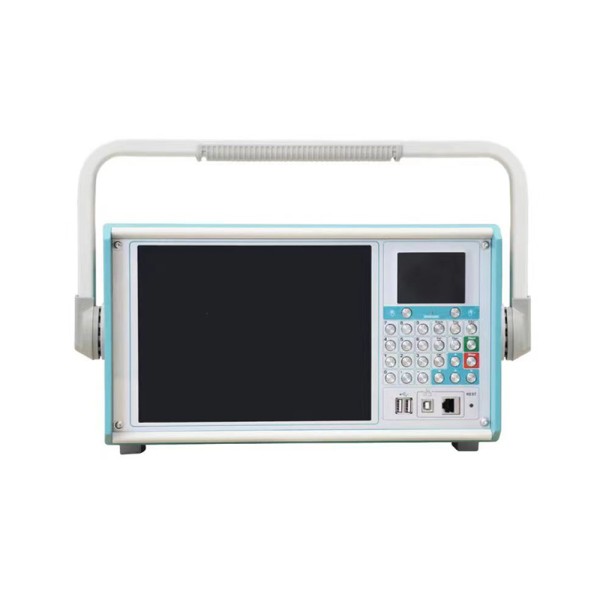

Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Specifications
Brand Name :
MINGYANG
Place of Origin :
China Mainland
MOQ :
1
Price :
5000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Model Number :
MY-T1640
Type :
HANTEK Oscilloscope
Warranty :
1years
Customized support :
OEM
Bandwidth :
70MHz
Record Length :
2M
Rise Time at BNC(typical) 5ns :
5ns
Vertical Resolutior :
8-bit resolution, all channel sampled simultaneously
Inputs Impendance3pF :
1MΩ+2% 20pF±
Probe Attenuation :
1X, 10X
Sampled simultaneously Inputs Coupling :
AC, DC, GND
Supported Probe Attenuation Factor :
1X, 10X, 100X, 1000X
Measuring Range :
0-20kΩ
Accuracy Class :
±(0.2%RD+0.05%FS)
Operating Temperature :
-10~50°c
Dimensions :
320mm*240mm*130mm
Minimum resolution :
min. 0.1 μ Ω
Frequency :
50Hz/60Hz
Usage :
Testing Machine
Measurement time :
fast, 10~60 seconds, continuous testing optional
Working power supply :
built-in 12.6V/7.8AH lithium battery
Weight :
6KG
Place of origin :
Hebei, China
working value of phase current :
9.9A
Output power three phase :
1800VA
Frequency range :
0 -- 1000Hz, accuracy 0.001Hz
Single phase voltage output (RMS :
0 -- 120V / phase, accuracy: 0.2% ± 5mv
Single phasevoltage output amplitude :
0--± 160V, accuracy: 0.5% ± 5mv
Phase voltage line voltage output power :
90VA/180VA
Description
Three-phase Relay Protection Tester for Substations
This advanced three-phase relay protection tester is designed for system calibration and fault simulation in substations, backed by a comprehensive 2-year warranty.
Product Overview
  • High-performance industrial control unit for intuitive operation, boosting testing efficiency and user-friendliness.
  • Software self-calibration function for enhanced accuracy and stability
  • High-fidelity linear power amplifier ensuring accuracy for small currents and stability for large currents
  • Direct USB interface communication with PC, eliminating the need for adapter cables
  • DSP FPGA structure with 16-bit DAC output, generating 2000 high-density sine waves per week for superior waveform quality and testing accuracy
Technical Specifications
Current Source AC/DC voltage source, AC/DC current source
Parallel Output Three-phase parallel output (effective value): 0-90A
Maximum Output Power per Phase 400 VA
Frequency Range 0~1000Hz, accuracy 0.01Hz
Switch Input Terminal 8 pairs
Harmonic Number Harmonic number
Phase 0~360°, accuracy 0.1°
DC Current Output 0 ~ ±10A/phase, accuracy: 0.2% ± 5mA
Dimensions 320mm × 250mm × 165mm
Time Range 1ms - 9999s
Measurement Accuracy 1ms
Weight 12.5kg
Product Images
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
Three Phase Relay Protection Tester With DSP FPGA High Fidelity Linear Power Amplifier
