Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Specifications
Brand Name :
MINGYANG
Model Number :
MY-T1200A
Place of Origin :
China Mainland
MOQ :
1
Price :
4500usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/month
Delivery Time :
1 week
Packaging Details :
carton
Warranty :
2 years
Customized support :
OEM
Single phase current output (RMS) :
0 -- 30A / phase, accuracy: 0.2% ± 5mA
Working value of phase current :
9.9A
Three phase parallel output (RMS) :
0-180A/six parallel outputs with the same phase
Maximum output power per phase :
320VA
frequency range :
0 -- 1000Hz, accuracy 0.001Hz
Output power three phase :
1800VA
Single phase voltage output (RMS :
0 -- 120V / phase, accuracy: 0.2% ± 5mv
Single phasevoltage output amplitude :
0--± 160V, accuracy: 0.5% ± 5mv
Phase voltage line voltage output power :
90VA/180VA
Description
Potable Injection Relay Protection Tester
This advanced six-phase resistance meter features maximum output power per phase and comes with a comprehensive 2-year warranty. Designed for precision testing and protection of relay systems in industrial applications.
Key Features
  • Intuitive operation interface with high-performance embedded industrial control computer
  • Software self-calibration function for enhanced accuracy and stability
  • High-fidelity linear power amplifier ensuring precision across current ranges
  • Direct USB interface communication with PC - no adapter cables required
  • DSP FPGA main control board with 16-bit DAC output
  • Generates 2000 high-density sine waves per week for superior waveform quality
Technical Specifications
Current Source AC/DC voltage source, AC/DC current source
Parallel Output Three-phase parallel output (effective value): 0-90A
Maximum Output Power Per Phase 400 VA
Frequency Range 0~1000Hz, accuracy 0.01Hz
Switch Input Terminal 8 pairs
Harmonic Number Harmonic number capability
Phase Range 0~360°, accuracy 0.1°
DC Current Output 0 ~ ±10A/phase, accuracy: 0.2% ± 5mA
Dimensions 320mm × 250mm × 165mm
Time Range 1ms - 9999s
Measurement Accuracy 1ms
Weight 12.5kg
Product Images
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
System in operation with clamp transformers
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty
Measurement setup and configuration
Six Phase Relay Protection Tester with 320VA Power and 2 Years Warranty

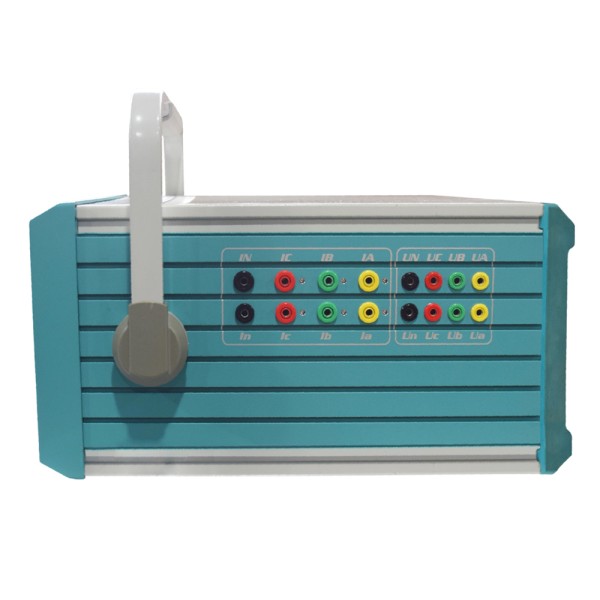

Controls and connection ports detail
