3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
Specifications
Brand Name :
Mingyang
Model Number :
MY-S802
Place of Origin :
China Mainland
MOQ :
1
Price :
3000usd
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/ Month
Delivery Time :
1 week
Packaging Details :
Carton
Efficiency :
95%
Inputvoltage :
220V
Certifications :
CE, RoHS
Frequency :
50/60Hz
Insulationclass :
Class B
Dimensions :
150mm x 100mm x 80mm
Weight :
2.5kg
Operatingtemperaturerange :
-20°C to 60°C
Powerrating :
500W
Phase :
Single-phase
Type :
Transformer
Productname :
Transformer Teser
Coolingmethod :
Air-cooled
Outputvoltage :
110V
Material :
Copper winding, Steel core
Description
Manufacturer 3-Phase Relay Protective Tester Secondary Injection Relay Test Equipment
Product Overview
  • Intuitive operation interface with high-performance embedded industrial controller for easy and quick operation
  • High-fidelity linear power amplifier ensures accuracy of small current and stability of large current
  • USB interface for direct PC communication without adapter cables
  • Main control board with DSP FPGA structure and 16-bit DAC output generates 2000 high-density sine waves per week for improved waveform quality and testing accuracy
Features and Functions

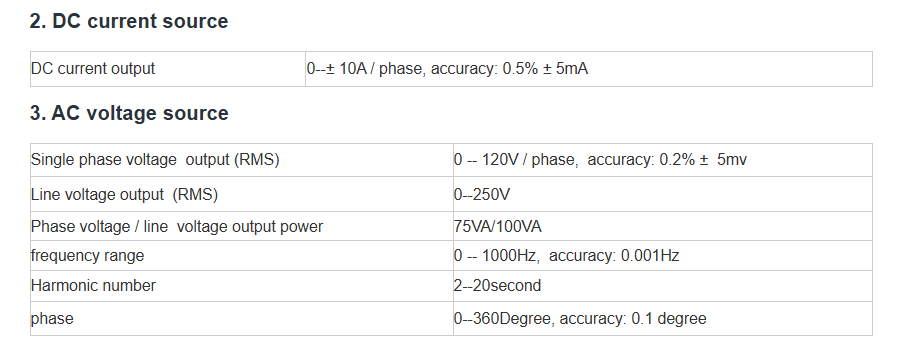

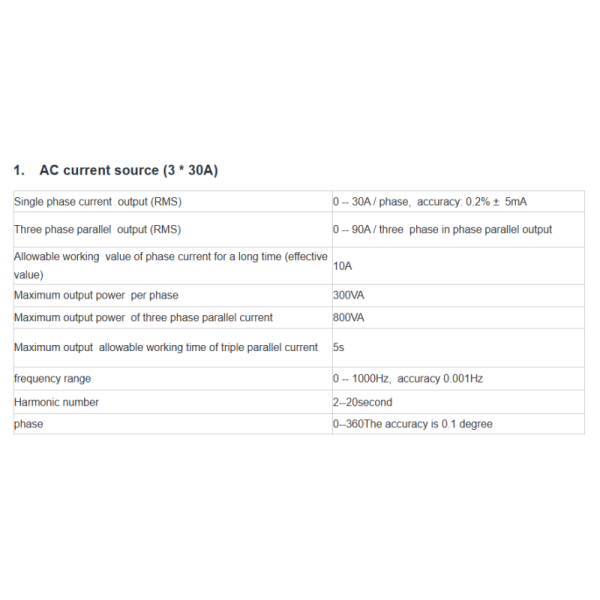

Current Source AC/DC voltage source, AC/DC current source
Parallel Output Three-phase parallel output (effective value): 0-90A
Maximum Output Power per Phase 400 VA
Frequency Range 0~1000Hz, accuracy 0.01Hz
Switch Input Terminal 8 pairs
Harmonic Number Harmonic number
Phase 0~360°, accuracy 0.1°
DC Current Output 0 ~ ±10A/phase, accuracy: 0.2% ±5mA
Dimensions 320mm * 250mm * 165mm

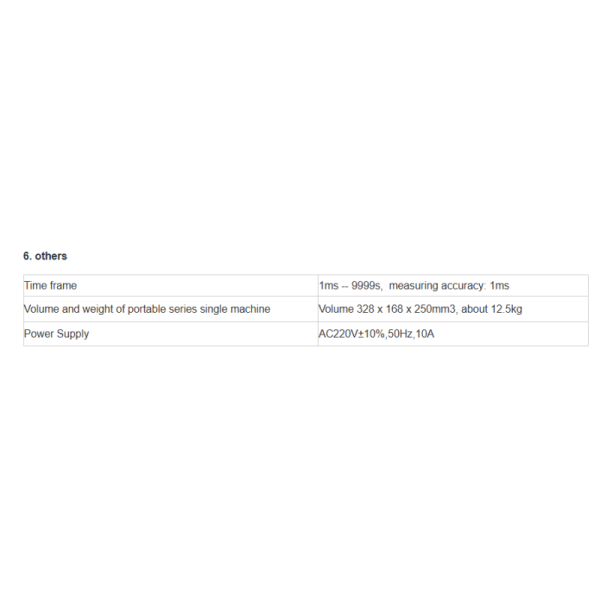

Time Range 1ms - 9999s
Measurement Accuracy 1ms
Weight 12.5kg
Technical Documentation
3 Phase Relay Protective Tester Secondary Injection Relay Test Kit 3 Phase Relay Protective Tester Secondary Injection Relay Test Kit 3 Phase Relay Protective Tester Secondary Injection Relay Test Kit
