Specifications
Single Package Size :
62×37×31cm
Function :
Transformer Turns Ratio Detection
Price :
650usd
Packaging Details :
carton
Control :
Manual Control
Model Number :
MY-122
Selling Units :
Single Item
Transport Package :
Plywood Case
Delivery Time :
1 week
Types :
Automatic
Brand Name :
MINGYANG
Certificate :
ISO9001
Temperature :
-10℃ ~ 50℃
Weight :
8Kg
Supply Ability :
5000/Month
Application :
Electric Power Industry
Relative humidity :
≤85%RH
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Ratio Measuring Range :
1~10000
Volume :
430×320×215mm
Power Source :
AC220V
Place of Origin :
China Mainland
Single Gross Weight :
18.860kg
MOQ :
1
Description

MY-122 Automatic Three‑Phase Transformer Turn Ratio Tester for Power Transformer Inspection TTR Tester

Product Description

Measuring transformer ratio with transformer ratio bridge, the operation process is tedious and the measuring scope is narrow, which can't meet the requirements of modern measurement with fast rhythm and high efficiency. To this end, a new generation transformer ratio group tester is developed by using modern electronic technology. It is small in size, light in weight, accurate and stable. It uses large screen display, menu operation, friendly interface. Change ratio group can be measured in one time. This instrument is an ideal testing instrument for power industry.

Basic Info.

Type
MY-122
Display
LCD
Control
Manual Control
Weight
0-100Kg
Power Source
AC220V
Selling Units
Single Item
Single Gross Weight
18.860kg
Color
Black
Single Package Size
62X37X31cm
Power Supply
220V50Hz
Customized Support
OEM, ODM, Obmsoftware Reengineering
Function
Detect
Product Name
Transformer Ratio Group Tester
Ratio Measuring Range
1-10000
Application
Electrics
Power
Electronic
Certificate
ISO9001
Transport Package
Plywood
Trademark
MINGYANG
Origin
Hubei, China

Features

1. Automatic measuring wiring group.
2. Change groups automatically.
3. Automatic phase switching.
4. Automatic switching range.
5. Automatic calibration table.
6. After the input standard is changed, the relative error can be calculated automatically.
7. Automatically cut off the test voltage after one measurement.
8. Set data and automatically save measurement results to view previous data.
9. Measure the on-load transformer and input the ratio of change only once.
Technology Parameters
Ratio testing range
1- 10000
Group testing range
1-12
Accuracy
1-1000 0.2, 1000-10000 0.5
Power
AC220V ±10%50HZ
Temperature
540
Relative humidity
85%
Volume
430×320×215mm3
Weight
8Kg

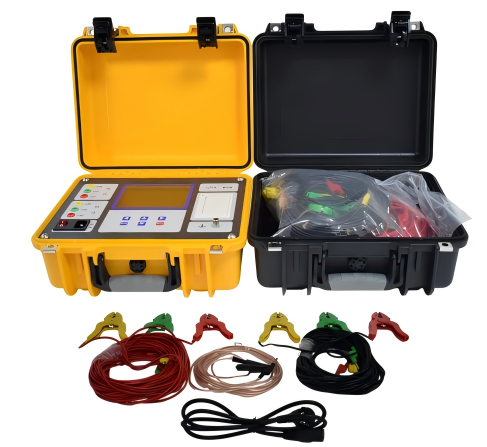

Accessory

Serial Number
Name
Amount
1
Mainframe
one
2
Power line
one
3
Test line
one
4
Printing paper
two
5
Fuse
two
6
Specification
one
7
Inspection Report
one
8
Certification
one
