Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
Specifications
Brand Name :
Anycut
Model Number :
ZK1400
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$528~753/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~31 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1760mm*W400mm*H440mm
Cutting length :
Unlimited
support system :
All versions of windows
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
Max. force :
2000g
MAX.cutting width :
1250mm
Motor :
Micro step subdivision motor
connect or interface :
USB cable/Udisk/WIFI
Control panel :
5.0 inch LCD touch screen
Drawing instruction :
Automatic recognition DMPI and HPGL
max cutting speed :
700mm/s
support software :
CDR/AI/PS/Contour software/signmaster(optional)
Description

Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine



Details Display


1. High Performance

- Maximum cutting speed of 700mm/s for efficient production.

- The maximum cutting width 1250mm.

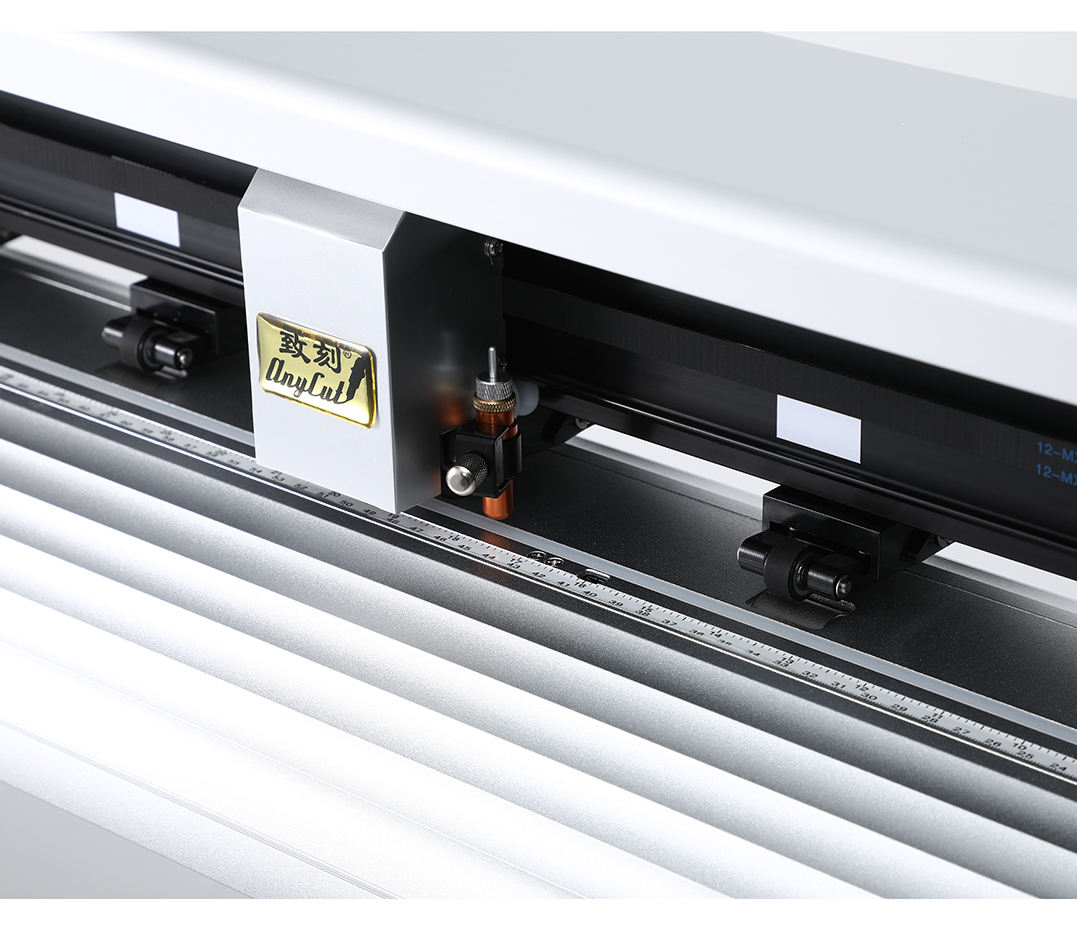

2. Superior Cutting Force

- 2000g ultra-high pressure carriage enables XY-axis cutting and irregular full-cut, handling a wide range of materials with precision.


3. Advanced Connectivity

- WIFI wireless connection (optional) for seamless operation, alongside USB and Udisk interfaces for flexible data transfer.


4. Precision & Reliability

- Automatic contour correction ensures deviation-free cutting for large images up to 10 meters.

- Unlimited maximum cutting length.


5. User-Friendly Design

- Compatible with all versions of Windows and professional design software (CDR, AI, PS, Contour, Signmaster).


Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine

Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine




Product Paramenters

MODEL ZK1400
Max. media width 1400mm
Max. cutting width 1250mm
Packing size L 1760mm*W 400mm*H 440mm
Machine size L 1650mm*W 600mm*H 1100mm
Gross/Net weight 42kgs/36kgs
Control panel 5.0inch LCD touch screen
Motor Micro step subdivision motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 700mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 1
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows




Multi-function


Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine



Anycut 55 Inch High-pressure Cutting Plotter XY-axis Cutting and Irregular Full-cut Die Cutting Machine
