ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
Specifications
Brand Name :
Anycut
Model Number :
ZK1400
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
$528~753/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~31 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L1760mm*W400mm*H440mm
MAX.cutting width :
1250mm
Control panel :
5.0 inch LCD touch screen
Motor :
Micro step subdivision motor
Cutting length :
Unlimited
Max. force :
2000g
Main board :
ARM smart dual-core chip
Auto contour cut :
Camera
Drawing instruction :
Automatic recognition DMPI and HPGL
connect or interface :
USB cable/Udisk/WIFI
support system :
All versions of windows
Description

ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter

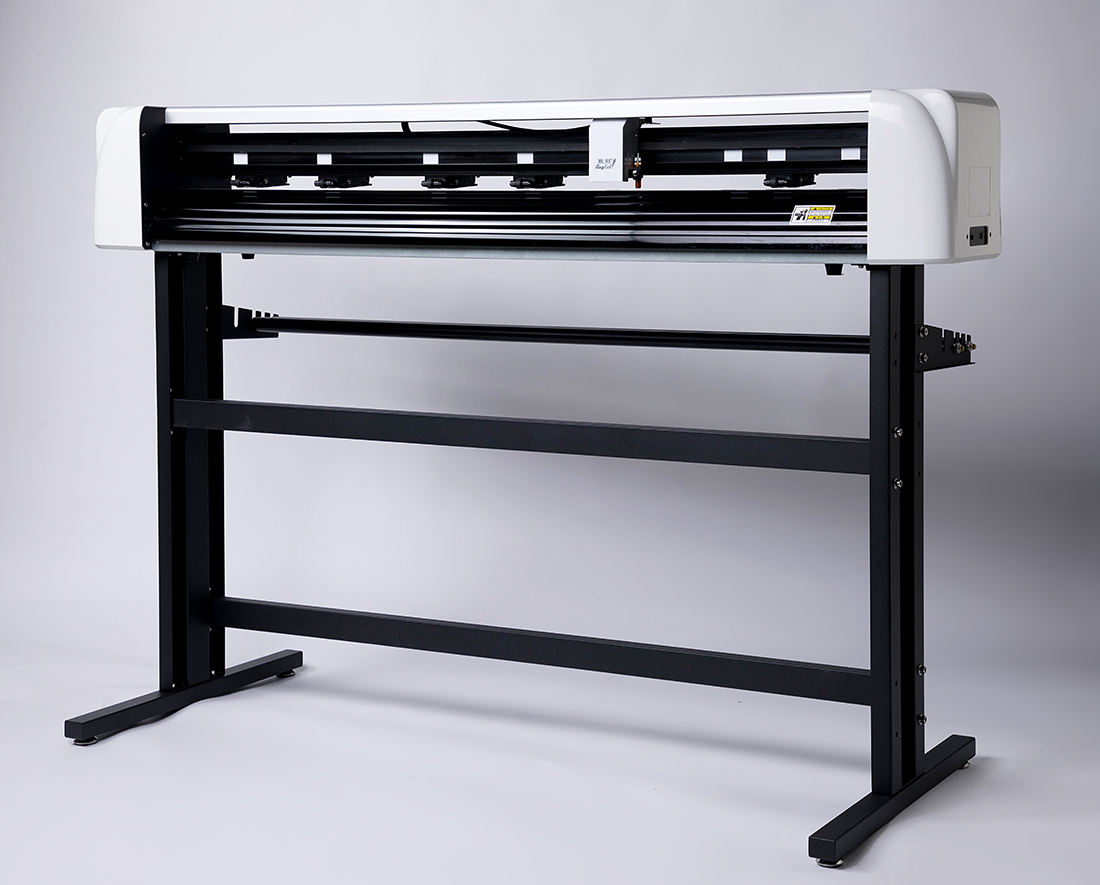

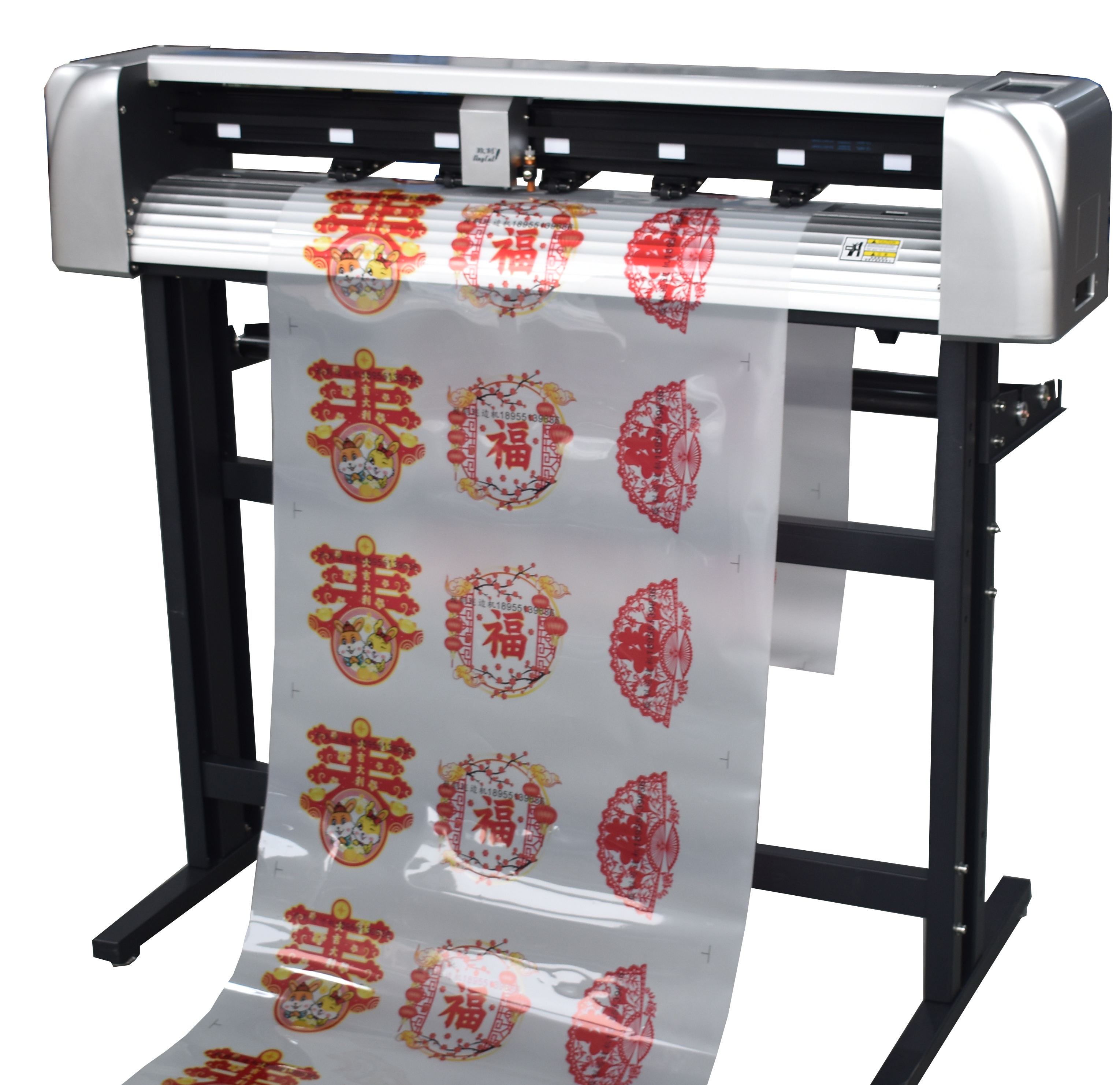

The ZK1400 is a large-format, industrial-grade cutting plotter built to handle high-volume, heavy-duty cutting tasks with precision and reliability. Its core feature is camera automatic positioning, which accurately detects registration marks for precise contour cutting of pre-printed designs—ideal for producing large stickers, decals, signage, and custom graphics.

With an impressive 2000g super force, it easily cuts through ultra-thick materials including PVC adhesive, white inkjet media, light box panels, and reflective films. The machine supports WiFi wireless connection for flexible remote operation, and its 5.0-inch LCD touch screen provides intuitive control. Its automatic deviation correction ensures even 10-meter-long jobs stay perfectly aligned, minimizing waste and maximizing efficiency.

Boasting a maximum media width of 1400mm and a cutting speed of 700mm/s, the ZK1400 combines speed with exceptional precision (±0.01mm cutting accuracy). Powered by an ARM smart dual-core chip and a micro-step subdivision motor, it delivers consistent performance even under continuous use. It features a stable floor stand and is compatible with all Windows systems, plus industry-standard software like SignMaster.



MODEL ZK1400
Max. media width 1400mm
Max. cutting width 1250mm
Packing size L1760mm*W400mm*H440mm
Machine size L1650mm*W600mm*H1100mm
Gross/Net weight 42kgs/36kgs
Control panel 5.0inch LCD touch screen
Motor Micro step subdivision motor
Cutting length Unlimited
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.cutting speed 700mm/s
Max.force 2000g
Main board ARM smart dual-core chip
Auto contour cut Camera
Number of heads 1
Blade type Rowland blade
Floorstand yes
Drawing instruction Automatic recognition DMPI and HPGL
Connect or interface USB cable/Udisk/WIFI(optional)
Power ﹤100w
Working environment ﹢5℃﹣﹢35℃
Power supply 100v-240v(adaptive),50HZ/60HZ
Support software CDR/AI/PS/Contour software/signmaster(optional)
Memory 1G
Support system All versions of windows



ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter



ZK1400 Super Thick Roll Materials Stepper Motor Large Format Graphic Plotter
