Specifications
Brand Name :
Anycut
Model Number :
ANYCUT-ZKF3550
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
MOQ :
1piece
Price :
$1240~1522/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
L1430mm*W755mm*H480mm
Max.cutting width :
350mm*500mm
Auto contour cut :
Camera
Control panel :
5.0 inch touch screen
Positioning mode :
L-corner/dot/QR code recognition/support multi-filr mixing
Motor :
DC servo motor
Blade type :
Cutting knife,indentation knife,painbrush
Max.material thickness :
450gsm
Max.cutting speed :
1200mm/s
max material thickness :
450gsm
suitable cutting material :
cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET
Description

Multifunctional High Speed Servo Motor Tabletop Flatbed Cutter With Vacuum Adsorption Technology



The Anycut ZKF3550 is a space-saving, high-performance tabletop flatbed cutter designed for businesses and crafters who need professional-grade precision without sacrificing workspace.

Pinpoint Accuracy, Every Time

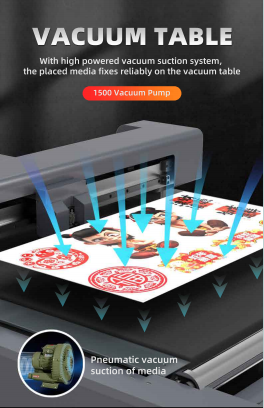

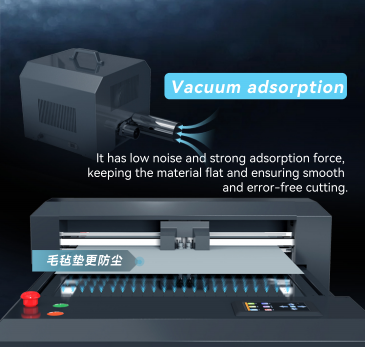

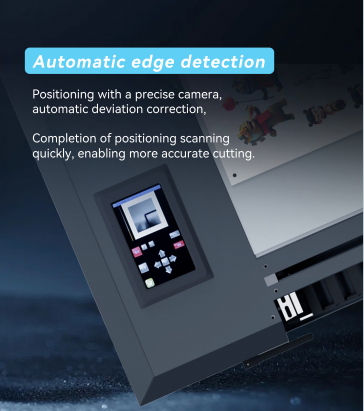

Featuring a high-precision camera with L-corner, dot, and QR code recognition, this cutter automatically corrects for material shifts, ensuring ±0.01mm accuracy on even the most intricate jobs. The stable vacuum hold-down system keeps substrates firmly in place.

Unmatched Versatility
Equipped with dual cutting heads (cutting knife, indentation knife, and paintbrush), it handles a wide range of materials: stickers, specialty papers, hangtags, business cards, cartons, and more.

Blazing-Fast Performance
With a max cutting speed of 1200mm/s and a 2000g cutting force, it powers through thick (up to 450gsm) and thin materials alike, boosting your productivity without compromising quality.

Flexible Connectivity
Stay connected with WiFi, USB, and network port options.



MODEL ANYCUT-ZKF3550
Maximum material size 480mm*675mm
Maximum cutting size 350mm*500mm
Auto contour cut Camera
Control panel 5.0 inch touch screen
Motor DC servo motor
Positioning mode L-corner/dot/QR code recognition/support multi-file mixing
Number of heads 2
Blade type Cutting knife,indentation knife,painbrush
Packing size L1430mm*W755mm*H480mm
Machine size L940mm*W690mm*H290mm
Gross/Net weight 35kgs
Cutting accuracy +/-0.01mm
Repeatability +/-0.01mm
Max.material thickness 450gsm
Max cutting speed 1200mm/s
Max.force 2000g
Connect or interface WIFI/USB/network port
Power Host:120W Fan:1000w
Woking environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Cardboard/hot stamping film/self-adhesive/kraft paper/PVC/PET
Support software CDR/AI/PS/Contour software/Signmaster(Optional)
Memory 1G
Support system All version of windows
