Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DS
Certification :
CE/FCC
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$1685~2255/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L950mm*W570mm*H545mm
Max cutting width :
350mm
Control panel :
4.3 inch touch screen
Blade type :
Rowland blade
Connect or interface :
USB cable/Udisk/web cable/WIFI
Software :
CDR/AI/PS/Contour software/Signmaster(optional)
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Max material thickness :
450gsm
Max cutting speed :
1600mm/s
Positioning mode :
Qr code/dot/Right angle
Support system :
All version of windows
Description

Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray

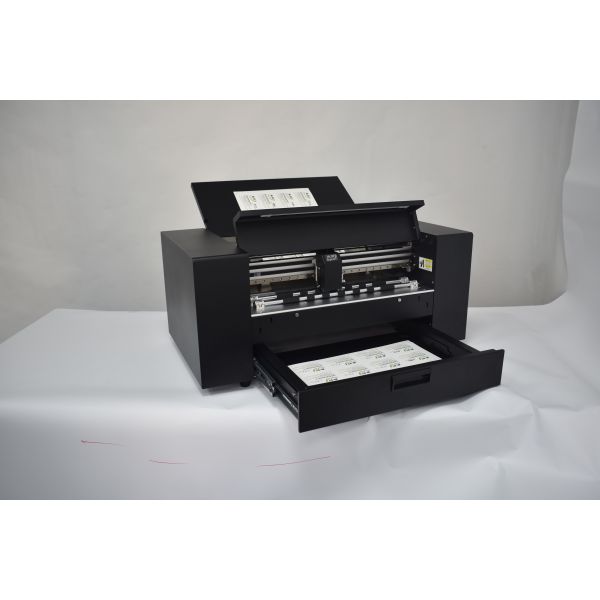

The Anycut ZKSVD370DS is a compact, high-performance desktop cutter designed for small to medium-sized businesses that need speed, precision, and versatility in a space-saving package. Powered by a high-speed servo motor, it delivers lightning-fast production without compromising on accuracy.


1. High-speed servo motor delivers 1600mm/s cutting speed for efficient production

2. QR code auto-positioning + camera contour cutting ensure precise cutting accuracy (±0.01mm)

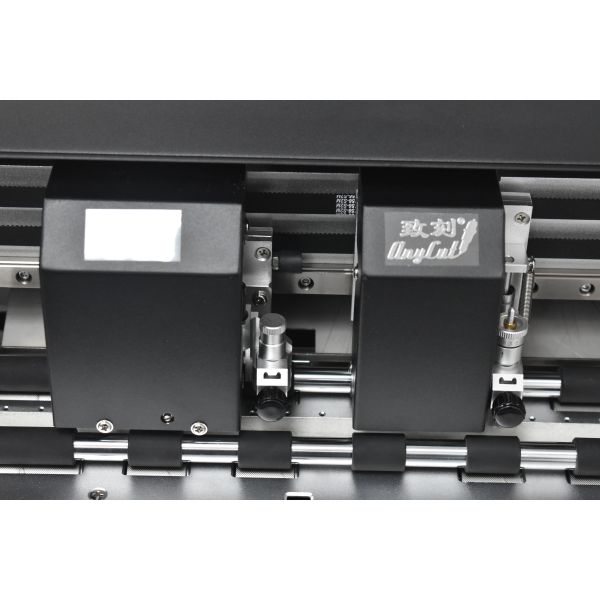

3. Drawer-style paper tray & double-head trolley boost operational convenience

4. Multi-connection (WiFi/USB/UDisk) & full Windows compatibility fit diverse working environments 5. Handles 450gsm thick materials (adhesive paper/PVC, etc.) for versatile application.



MODEL ZKSV370DS
Max. media width 370mm
Max. cutting width 350mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size L 990mm*W 600mm*H 570mm
Machine size L 845mm*W 475mm*H 370mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows



Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray



Two Separate Carriages High Speed Servo Motor Die Cutting Machine With Drawer-style Paper Tray
