Specifications
Brand Name :
Anycut
Model Number :
ZKSVD370DS
Certification :
CE/FCC
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$1685~2255/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20~30 work days
Packaging Details :
L950mm*W570mm*H545mm
Max cutting width :
350mm
Control panel :
4.3 inch touch screen
Blade type :
Rowland blade
Connect or interface :
USB cable/Udisk/web cable/WIFI
Software :
CDR/AI/PS/Contour software/Signmaster(optional)
Suitable cutting material :
Self-adhesive sticker/coated paper/PVC
Max material thickness :
450gsm
Max cutting speed :
1600mm/s
Positioning mode :
Qr code/dot/Right angle
Support system :
All version of windows
Description

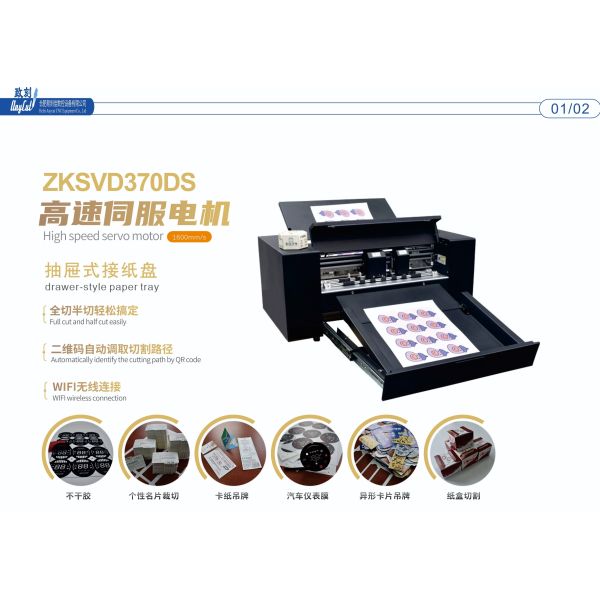

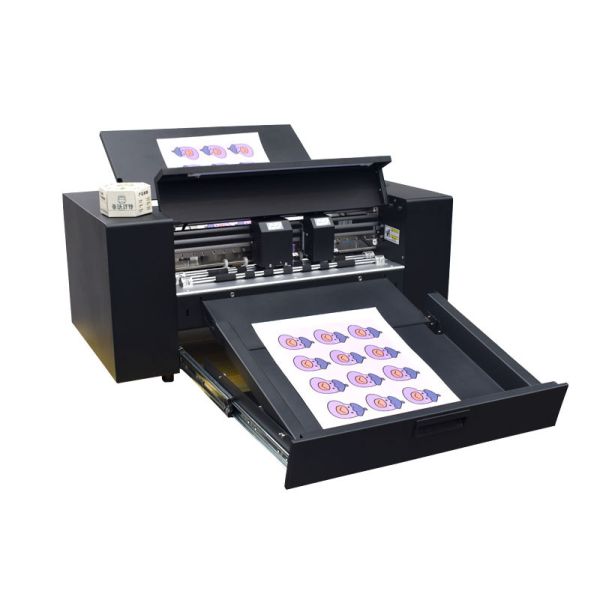

ZKSVD370DS Cutting Machine Introduction


ZKSVD370DS cutting machine—a practical, high-performance tool perfect for your sticker, business card, cardboard tag, and small box cutting needs.


Key highlights:
- Fast & efficient: High-speed servo motor delivers 1600mm/s cutting speed, with +0.01mm precision for neat, accurate cuts.
- Easy to use: 4.3-inch touch screen, auto QR code/camera path positioning, and WIFI/USB/network connectivity for seamless operation.
- Versatile: Handles materials up to 450gsm (thick cardboard/PVC), works with CDR/AI software and all Windows systems.
- Convenient design: Drawer-style paper tray for easy material collection, compact size for shop/studio use.

It’s built to save you time and effort while delivering professional results for your daily cutting tasks. Let me know if you’d like more details or a demo.Should you be interested in our products, don’t hesitate to get in touch. We will actively answer your questions and are eager to assist you.


ZKSVD370DS High Speed Separate Double-Head Cutting Trolley Full Cut And Half Cut Cutting Plotter

MODEL ZKSV370DS
Max. media width 370mm
Max. cutting width 350mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle

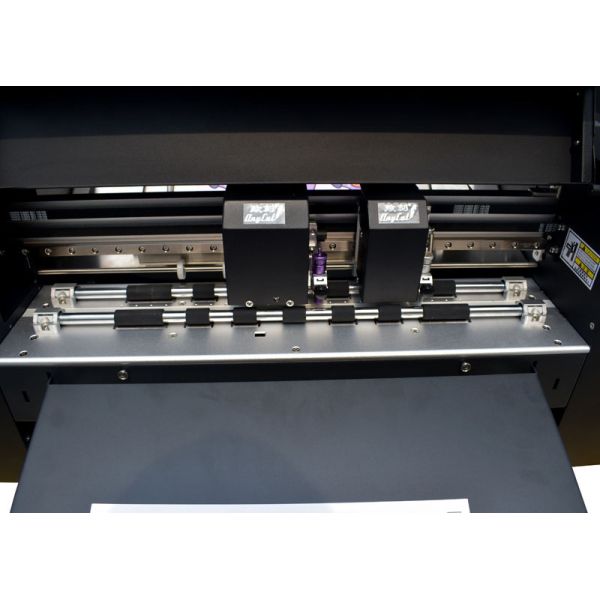

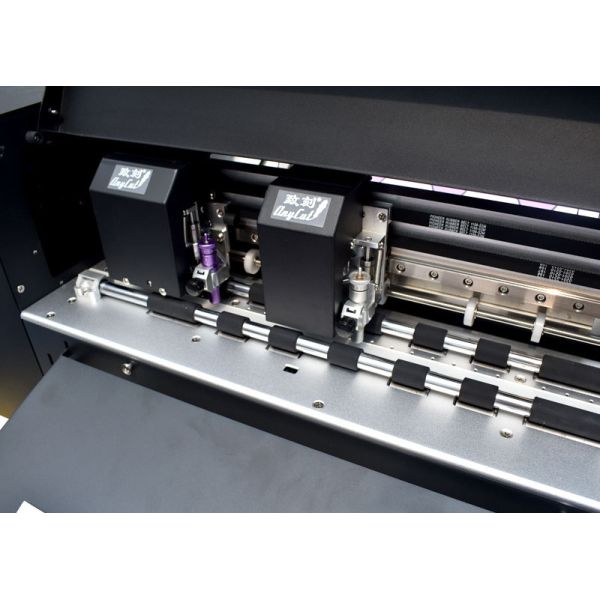

Number of heads 2
Blade type Rowland blade
Packing size L 990mm*W 600mm*H 570mm
Machine size L 845mm*W 475mm*H 370mm
Gross/Net weight 63kgs/47kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
