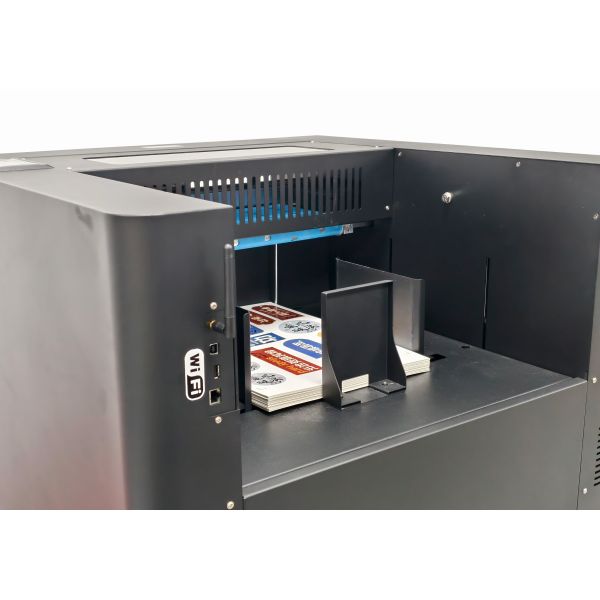

New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor
Specifications
Brand Name :
Anycut
Model Number :
SVD370PRO_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1piece
Price :
$2826~3682/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
Host Machine:L960mm*W960mm*H780mm;Cabinet:L910mm*W890mm*H860mm
max cutiing width :
340mm
auto contour cutting :
Camera(automatically contour cutting)
control panel :
5.0 inch touch screen
motor :
high speed servo motor
positioning mode :
Qr code/Dot/Right angle
max material thickness :
600gsm
max force :
3000g
connect or interface :
USB cable/Udisk/web cable/WIFI
power supply :
100v-240v(adaptive)
suitable cutting material :
self-adhesive sticker/coated paper/PVC
Description

New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor


High-Speed & Precision Cutting for Professional Labels & Packaging

- 1600mm/s Ultra-Fast Cutting Speed & 3000g Max Force: Finish jobs in record time with powerful, precise wheel indentation.

- All-in-One Full & Half Cut: One-pass molding for seamless label production, no extra steps needed.

- Auto Contour Cut via QR Code: Scan QR codes to auto-generate cutting paths—smart, efficient, error-free.

- 4.3" Touch Screen + WiFi Connectivity: Intuitive control and wireless operation for flexible workflow.

- Versatile Material Compatibility: Cuts self-adhesive stickers, coated paper, PVC, card tags, business cards, and more.

- High Precision: ±0.01mm cutting accuracy and 0.082mm repeatability for consistent, professional results.

Ideal for label makers, packaging producers, and print shops demanding speed, accuracy, and versatility.


New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor



New Model Adsorption Wheel Indentation A3/A4 Die Cutting Machine 1600mm/s Servo Motor



MODEL ZKSVD370PRO_RL
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 4.3inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size Host machine:L 960mm*W 960mm*H 780mm,Cabinet:L910mm*W890mm*H860mm
Machine size L 790mm*W 790mm*H 1200mm
Gross/Net weight 206kgs/142kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
