Specifications
Brand Name :
Anycut
Model Number :
SVD370PRO_RL
Certification :
CE/FCC/RoHS
Place of Origin :
shenzhen
MOQ :
1 piece
Price :
$2826~3682/piece
Payment Terms :
T/T,Western Union
Supply Ability :
1~4 pieces/2 days;5~30 pieces/15 days;31~100 pieces/20 days
Delivery Time :
20-30 work days
Packaging Details :
Host Machine:L960mm*W960mm*H780mm;Cabinet:L910mm*W890mm*H860mm
support system :
All versions of windows
auto contour cutting :
Camera(automatically contour cutting)
max cutiing width :
340mm
repeatability :
0.082mm
motor :
high speed servo motor
connect or interface :
USB cable/Udisk/web cable/WIFI
poaitioning mode :
Qr code/Dot/Right angle
power supply :
100v-240v(adaptive)
control panel :
5.0 inch touch screen
Description

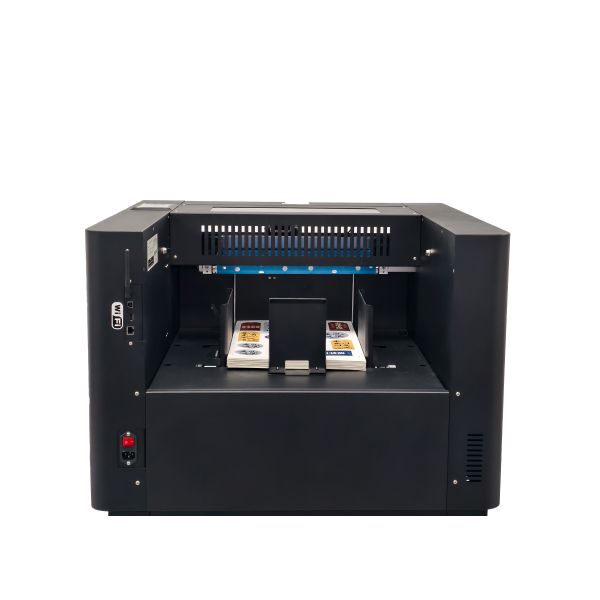

A3/A4 Carton Adsorption Statics Removing Label Cutting Machine With Wheel Indentation



1. High-Volume Efficiency
Handles up to 1,000 sheets in a single batch and completes full cut, half cut, creasing, and contouring in one pass, drastically boosting productivity.

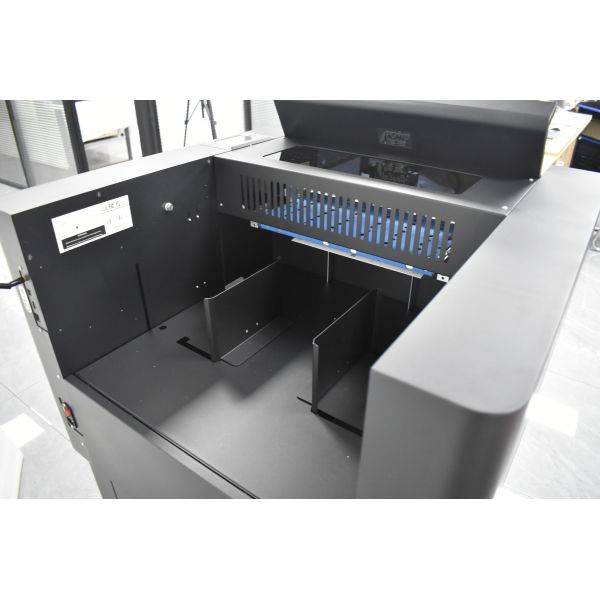

2. Advanced Adsorption Feeding
The suction feeding system effectively removes static electricity and prevents double-sheet feeding, ensuring smooth, reliable material handling.


3. Dual-Head Precision
Equipped with two Roland blades and a high-speed servo motor, it delivers a cutting accuracy of ±0.01mm and a maximum force of 3000g for clean, precise results on materials up to 600gsm.


4. Multi-Device Connectivity
Features WiFi, USB, U-disk, and wired network connections, allowing one machine to link with multiple computers and support offline operation for flexible workflows.


5. Broad Compatibility
Works with all Windows operating systems and supports CDR/AI/PS/Contour software, making it adaptable to diverse design and production environments.



MODEL ZKSVD370PRO
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size Host machine: L 960mm*W 960mm*H 780mm; Cabine: L 910mm*W 890mm*H 860mm
Machine size L 790mm*W 790mm*H 1200mm
Gross/Net weight 206kgs/142kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
