Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
Specifications
Brand Name :
Anycut
Model Number :
ZKSS600
MOQ :
1 piece
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen
Supply Ability :
1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days
Delivery Time :
20-30 work days
Packaging Details :
Outer carton 1000*285*310mm
Payment Terms :
,T/T,Western Union
Price :
$1-9999/piece
Lable cutting :
Intelligent cutting machine
Auto contour cut :
5-inch LCD display
Cutting speed :
max 600mm/s
Power supply,V/Hz :
100-240V/50Hz/24V/2.75A
Max.media width :
660mm
Connector interface :
USB/Bluetooth/WIFI/USB cable
Description

Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch

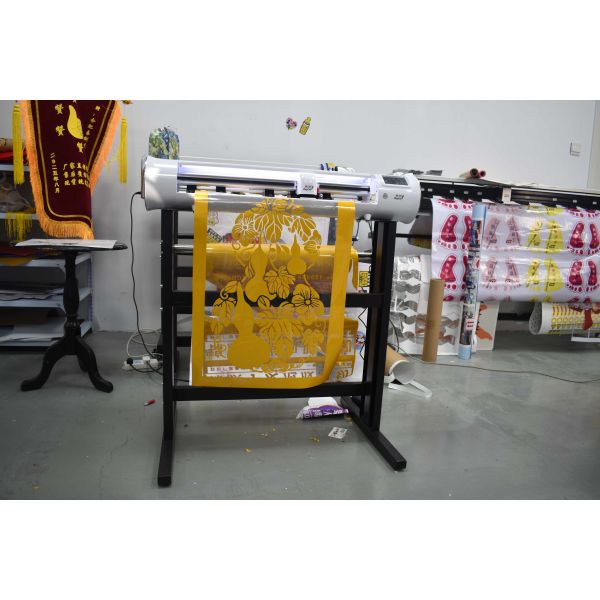

The ZKSS600 CCD camera automatic edge patrol plotter is an intelligent cutting machine focusing on portability and precision. With a large media width of 669mm, it can adapt to the processing of various large-format rolls and sheets. The CCD camera automatic edge patrol technology can accurately identify pattern contours, and the ±0.01mm cutting precision ensures that the lettering and cutting of self-adhesive stickers and special materials can restore details, making it a practical choice for advertising production and cultural and creative customization.

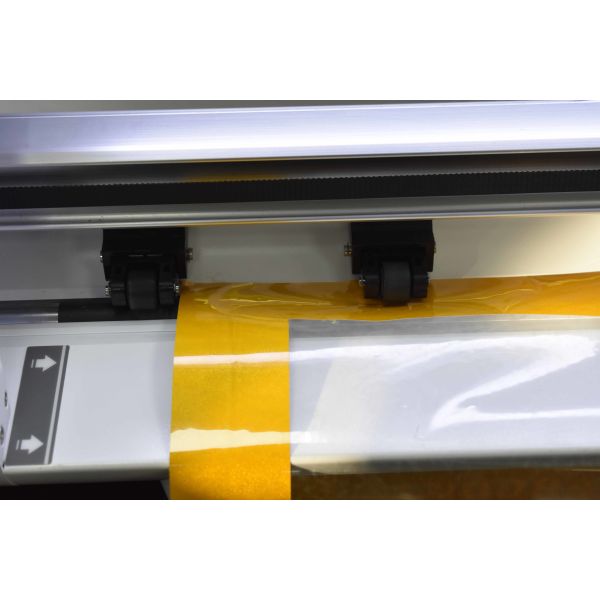

It is equipped with a 5-inch LCD display and a large-screen central console for simple and easy operation, and supports multi-language switching to meet the usage needs of different regions; the hidden carriage head design makes the body more compact, and the gross weight of 15.3kg is convenient for moving and placing. The device provides multiple connection methods such as USB and WIFI, with a maximum moving speed of 700mm/s and a cutting speed of 600mm/s, balancing efficiency and precision. The integrated wheel pressure design can also adapt to various special materials, and it can flexibly cope with personalized production in small stores and batch operations in small processing plants.


MODEL ZKS5600
Max.media width 660mm
Max.cutting width 63.2mm
Max contour cutting width 590mm
Packing size Outer carton 1000*285*310mm
Max Gross weight 15.3kg
Max force 800g
Auto contour cut Camera
Power supply,V/Hz 100-240V/50Hz/24V/2.75A
Motor stepper motor
Processor memory 16MB
Cutting precision +/-0.01mm
Repeat precision YES
Max moving speed 700mm/s
Max cutting speed 600mm/s
Connector interface USB/Bluetooth/WIFI/USB cable
Power <48W


Anycut 600mm CCD Camera Automatic Edge Patrol Plotter Multiple Language Switch
