48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
Specifications
Brand Name :
HEYI
Model Number :
5KWH
Certification :
ISO ,MSDS , UN38.3
Place of Origin :
CHINA
MOQ :
1
Price :
399~899 USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
up to 1 GWH yearly
Delivery Time :
around 20 working days
Packaging Details :
wooden case
Nominal Voltage :
51.2v
Material :
LiFePO4
Backup Power :
Yes
Application :
Solar Energy Storage Systems
Nominal Capacity :
100ah
Protection Class :
IP65
Capacity :
5.12 kWh
The Discharge Rate :
1C
Keywords :
Wall mounted Battery Home System
System Type :
Wall-mounted
Power Output :
5 kW continuous, 10 kW peak
Description

Lithium Battery Manufacturers 48V100Ah 5kwh Solar Battery Pack

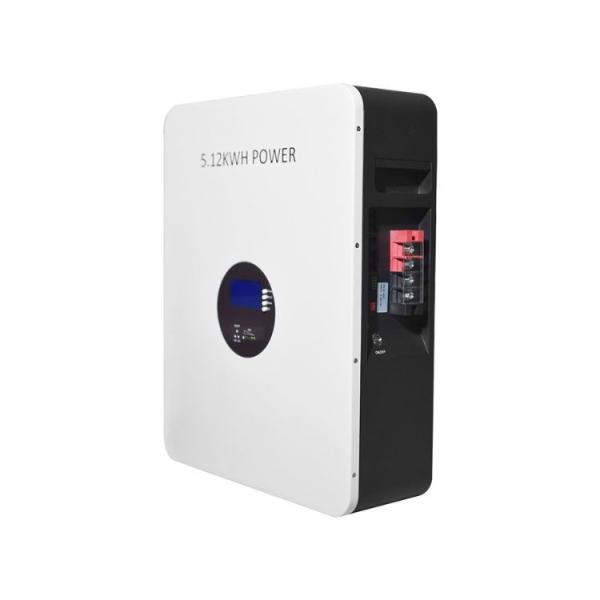

This 5kWh Powerwall is a safe, durable, and cost-effective energy storage solution, ideal for residential solar systems. Built with high-quality LiFePO₄ cells and a smart Battery Management System (BMS), it delivers stable performance and long service life.

An integrated LCD screen provides real-time monitoring of voltage, current, state of charge, power output, and system status—ensuring users stay informed at all times.

The system supports smart communication via RS485/CAN, and is widely compatible with major brands of off-grid and hybrid inverters, as well as MPPT solar charge controllers.

With modular capacity options from 5kWh to 160kWh, this Powerwall system is fully scalable to meet growing household energy demands.

.

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class

Slim Profile, Wall-Mount Friendly
Designed to be mounted on walls with minimal footprint—ideal for tight indoor spaces and modern interiors.

Safe LiFePO₄ Cells
Made from high-quality lithium iron phosphate cells, known for outstanding stability and built-in safety.

Durable and Long-Lasting
Supports up to 8000 deep-cycle charges, maintaining consistent performance over 10+ years of use.

Intelligent Battery Control
Equipped with a smart BMS that prevents overvoltage, deep discharge, overcurrent, overheating, and short circuit risks.

Compact Yet Powerful
Efficient energy storage design delivers high output while taking up minimal installation space.

Strong Load Handling
Built to manage high current levels, ensuring fast recharge times and reliable output during peak demand.

Expandable Energy Capacity
Parallel connection of multiple units (up to 16) allows easy scaling to meet larger power requirements.

Flexible Connectivity Options
Supports RS485/CAN communication and offers app control via Wi-Fi or Bluetooth as an option.

Adaptable to Harsh Climates
Designed to function reliably across a broad temperature range: -20°C to +60°C.

No Routine Maintenance Required
Sealed design eliminates the need for regular upkeep—plug in and operate worry-free.

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class

SPECIFICATIONS :

Model HY5KWH HY10KWH
Energy 5120WH 10240WH
Nominal Voltage (V) 51.2V 51.2V
Rated Capacity (Ah) 100Ah 200Ah
Chemistry Lithium iron phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 8000 cycles at 80% DOD.
Communication Protocol CAN , RS485
Display LED Display
Scalable(Parallel Function) Yes, Maximum 16 Packs
Max. Charging Current 100A 200A
Max. Continue Discharging Current 100A 200A
Battery Dimensions (MM) 565*445*124mm 748*525*230mm
Weight Approx: 45kg Approx: 75kg
Battery Protection Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Power Coated steel case IP60
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class

48V100Ah 5kwh Home Battery Home Solar Battery Pack IP65 Protection Class
