Specifications
Brand Name :
HEYI
Model Number :
5KWH
Certification :
ISO ,MSDS , UN38.3
Place of Origin :
CHINA
MOQ :
5
Price :
799~999 USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
up to 1 GWH yearly
Delivery Time :
around 20 working days
Packaging Details :
wooden case
Nominal Capacity :
200ah
Nominal Voltage :
51.2V
Battery Type :
LIFEPO4
Oem :
YES, make your logo is ok
Package Gross Weight :
90.000kg
Package :
Carton/box
Backup Power :
Yes
Output Voltage :
110V/220V*2
Storage Capacity :
10240Wh
Installation Method :
Floor-mounted/Wall-mounted
Application :
Home Energy Storage System
Description

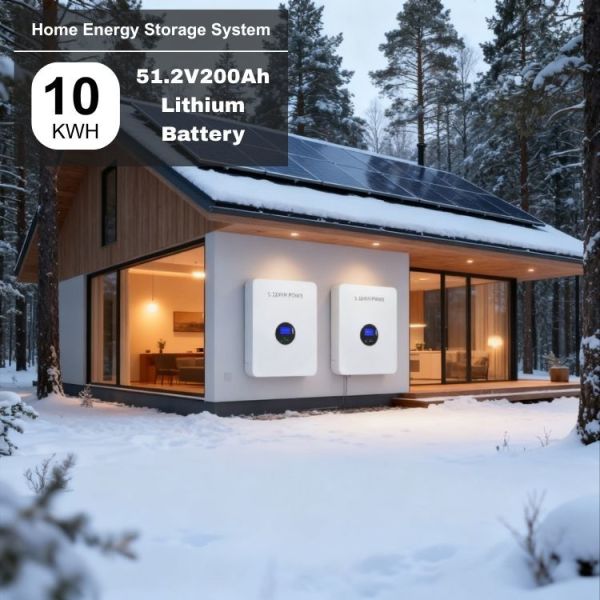

Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential


This lithium battery 48V 200Ah unit is a high-performance Energy Storage Battery designed specifically for modern home energy storage system applications. Built with premium LiFePO4 cells, the battery offers superior cycle life, excellent safety, and reliable power for residential backup and solar storage.

It features an intelligent BMS that provides multilevel protection—monitoring voltage, current, temperature, SOC, and system status to ensure stable and secure operation. The integrated LCD screen allows users to check all real-time data at a glance.

The system supports RS485/CAN communication and works seamlessly with most major brands of off-grid and hybrid inverters, as well as MPPT solar charge controllers. With expandable capacities from 5 kWh to over 160 kWh, homeowners can easily scale their energy storage as their power needs grow over time.


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential


  • Premium 48V 200Ah LiFePO4 energy storage with long cycle life

  • Smart BMS with complete electrical and thermal protections

  • LCD information panel offering real-time system monitoring

  • Works with mainstream solar inverters and MPPT controllers

  • Perfect for residential solar storage and backup power

  • Easily expandable for small to large household energy systems


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For ResidentialLithium Battery 48v 200ah Lifepo4 Energy Storage Battery For ResidentialLithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential

Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential







SPECIFICATIONS :


Model HY5KWH HY10KWH
Energy 5120WH 10240WH
Nominal Voltage (V) 51.2V 51.2V
Rated Capacity (Ah) 100Ah 200Ah
Chemistry Lithium iron phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 8000 cycles at 80% DOD.
Communication Protocol CAN , RS485
Display LED Display
Scalable(Parallel Function) Yes, Maximum 16 Packs
Max. Charging Current 100A 200A
Max. Continue Discharging Current 100A 200A
Battery Dimensions (MM) 565*445*124mm 748*525*230mm
Weight Approx: 45kg Approx: 75kg
Battery Protection Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Power Coated steel case IP60
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential

Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential

Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential


Related Products


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For ResidentialLithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential



Packaging & Shipping

We can arrange Door to Door delivery service for small orders or samples .


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential

Company Information

HEYI ENERGY is a leading high-tech enterprise specializing in the development and manufacturing of advanced lithium battery technologies. Established in 2014, we focus on lithium iron phosphate (LiFePO4) and lithium-ion (NMC) battery solutions, delivering safe, reliable, and efficient energy storage systems for global markets.

Our state-of-the-art production facilities span over 50,000 square meters, equipped for the large-scale manufacturing of both battery cells and packs. With a workforce of more than 1,500 employees, including over 300 experienced R&D engineers, we continuously drive innovation and quality through technological leadership.

HEYI ENERGY proudly provides OEM and ODM solutions to 100+ global partners, enabling customized energy solutions across a wide range of applications. Our product portfolio includes:

  • Residential energy storage systems

  • Commercial and industrial energy storage solutions

  • Power batteries for various vehicles and industrial machinery

  • Ultra-low temperature batteries for extreme environments

Our core technical team possesses extensive expertise in battery system design, battery management systems (BMS), operational control, and rigorous cell and module testing. From the initial concept to the final product, we ensure system compatibility, stability, and long-term reliability.

At HEYI ENERGY, our mission is to provide sustainable, cost-effective power solutions that not only meet the evolving needs of our customers but also contribute to a greener, low-carbon future.


HEYI ENERGY – A globally recognized manufacturer of lithium battery and solar energy products.


Lithium Battery 48v 200ah Lifepo4 Energy Storage Battery For Residential

FAQ


Q: Do you offer free samples?

A: We don't provide free sample, but the sample cost can return to you when you place bulk orders .


Q: What is your terms of payment?

A: We accepted most of payment terms, like T/T,L/C at sight, PayPal, Western Union, Cash etc.


Q: What is a minimum number (pieces) of order for this product?

A: Our MOQ is 1 piece, the more the quantity, the more preferential it is.


Q: How many time you need for production of one sample?

A: If customized according to customer requirements, production time needs 10-15 working days, if it’s our standardized products most of the time we can supply from stock .


Q: How do you ship the products?

A: For small orders or samples we can arrange door to door air freight delivery , for large quantity we normally arrange container or LCL ocean shipment .


Q: How much does shipping cost?

A:It depends on the quantity of goods, the shipping method, and the country . But we will always figure out the best choice for you .

Q: How can I get the best prices?

A: You get cheaper per-item price when you buy larger quantities. Use the website to check prices. Returning customers receive better discount levels.

Q: What if the product is broken?

A: If any product is faulty, you can send me the picture or video to us, and we will study it. And provide the spare parts for after sale service.
