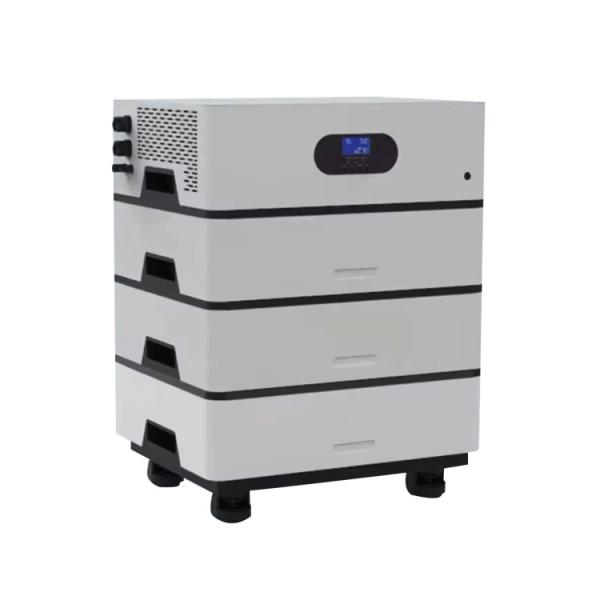

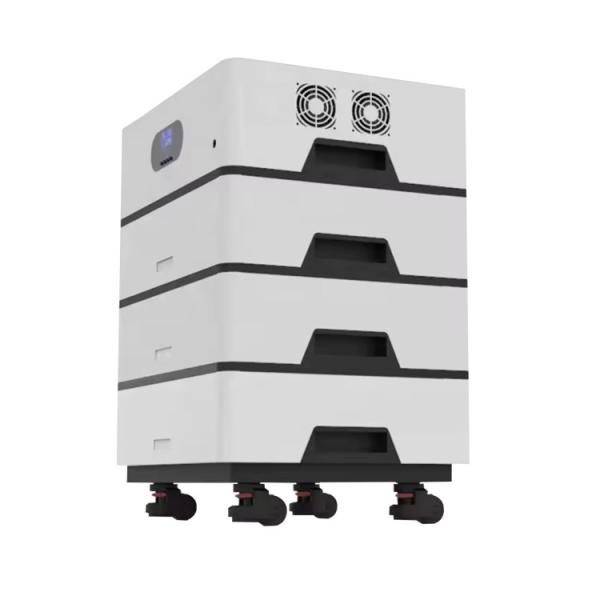

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
Specifications
Brand Name :
HEYI
Model Number :
15KWH
Certification :
UN38.3 , MSDS , IS9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD1598~3580
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
wooden case
Logo :
Can be customized
Service Life :
y15+
Battery Cell :
LifePO4 3.2V
Inverter :
All In One
Temperature Range :
Wide
Protocol :
RS485 and RS232
Protection :
Built-in BMS
Battery Protection :
Smart BMS module
Battery Capacity :
15 KWH
Description

Home Solar Energy Storage 48V 15Kwh Lithium Storage Battery

This integrated solar energy storage unit pairs a high-capacity LiFePO₄ battery with an optional inverter (available in 5kW to 15kW), delivering a space-saving and efficient solution for home energy backup. Its modular, stackable form factor and built-in wheels make it easy to transport and install. With flexible system scaling from 5kWh to 50kWh, and full support for CAN, RS232, and RS485 communication protocols, it integrates seamlessly with hybrid and off-grid systems. Built for longevity, the battery offers up to 8000 cycles and comes with a 10-year warranty, ensuring stable performance over the long term.

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery

MODEL HY-01L HY-02L HY-03L HY-04L HY-05L HY-06L HY-07L
Battery Type LiFePO4(LFP)
Nominal Voltage(V) 51.2V
Num.of battery modules 1 2 3 4 5 6 7
Nominal Capacity(KWH) 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH 30.72KWH 35.84KWH
Dimension(mm) 620*438*475 640*438*625 640*438*790 640*438*955 640*438*1120 640*438*1285 640*438*1450
Weight(kg) 75 120 160 210 250 300 345
ELECTRICA
Discharge Voltage(V) 40 - 48
Charge Voltage(V) 56 - 58.4
Charge Current 50A-100A
Charge/ Discharge Current(A) 80A (Recommended) 100A(Max)/160A (Recommended) 200A(Max)
Cycle Life >6000. 25°C
BMS
BMS Monitoring PRM SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
GENERAL
Operating Temp Range -10℃-50℃
Transport or Storage Temp Range -20℃-45℃
Humidity 15% - 85% (No Condensing)
Installation Floor Installation
Inverter (Optional)
Inverter output 5kw 10kw 15kw
Rated output voltage 230Vac(L/N/PE single-phase)
Output waveform Pure sine wave
Rated battery voltage 48Vdc
Voltage range 40~60Vdc

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery

Integrated Power System
Combining high-capacity LiFePO₄ battery modules with an optional inverter (8kW / 10kW / 15kW), this compact solution simplifies energy storage for residential use.

Quick Setup & Easy Mobility
Thanks to its modular, stackable format and base wheels, the system installs quickly and can be moved effortlessly as needed.

Versatile Communication Interfaces
Compatible with CAN, RS232, and RS485 protocols, ensuring seamless connection with a range of inverters and smart energy controllers.

Supports Hybrid & Off-Grid Use
Whether you're connected to the grid or operating independently, the system adapts to various energy setups.

Durable with Long Cycle Life
Built using top-grade lithium iron phosphate cells, offering up to 8000 cycles and protected by a 10-year warranty.

Expandable Capacity
Start with 5kWh and grow to 35kWh+ as your energy needs evolve, thanks to its scalable, stackable architecture.

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery

Specifications :

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery

Customizable 15kwh Home Battery Storage System 48V Residential Lithium Ion Battery
