Specifications
Brand Name :
HEYI
Model Number :
36V20Ah
Certification :
UN38.3 . MSDS
Place of Origin :
China
MOQ :
100
Price :
USD69~99
Payment Terms :
,T/T,Western Union,MoneyGram
Supply Ability :
1 GWH
Delivery Time :
10 working days
Packaging Details :
Carton
Chemistry :
Lithium Iron Phosphate (LiFePO4)
Weight :
Approximately 20 lbs
Voltage :
48V
Capacity :
20Ah
Dimensions :
367.5x95x122 MM
Cycle Life :
6000 cycles
Discharging Current :
20A
Application :
E-bike
Operating Temperature :
-20°C to 60°C
Warranty :
5 years
Description

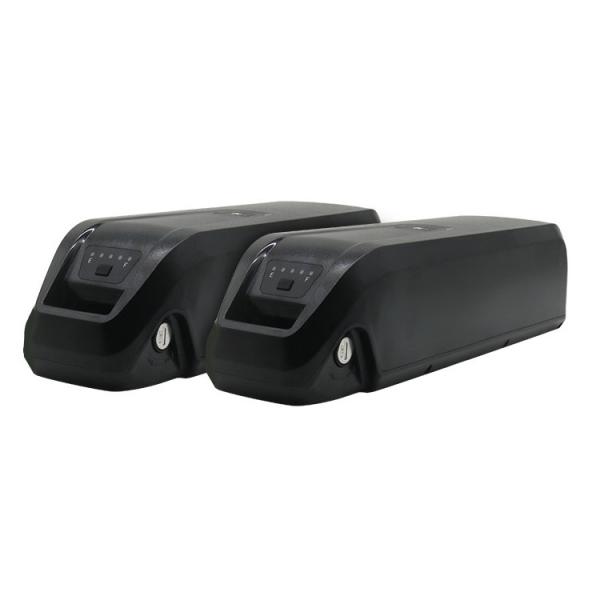

Battery For Electric Motorcycle 48V 20AH Ev Scooter Battery Lithium

Specification :

Model 36V/15Ah 36V/20Ah 48V/15Ah 48V/20Ah 52V/15Ah 52V/20Ah
Nominal Voltage (V) 36V 36V 48V 48V 52V 52V
Nominal Capacity (Ah) 15Ah 20Ah 15Ah 20Ah 15Ah 20Ah
Energy 540Wh 720Wh 720Wh 960Wh 780Wh 1040Wh
Battery Dimensions (MM) 367.5x95x89 367.5x95x122 367.5x95x89 367.5x95x122 customized customized
Layout/Terminals Anderson Anderson Anderson Anderson Anderson Anderson
Case /Packing Aluminium Aluminium Aluminium Aluminium Metal Case Metal Case
LED display Optional Optional Optional Optional Optional Optional
Blue tooth Optional Optional Optional Optional Optional Optional
Comms. NO NO NO NO Optional Optional
Charging Voltage 54.6V 71.4V 71.4V 71.4V 84V 84V
Optimum charge current 3A~5A 3A~5A 3A~5A 3A~5A 3A~5A 3A~5A
Max.Continuous discharge current 50A 80A 50A 80A 50A 80A
Peak discharge current 100A 100A 100A 150A 150A 150A
BMS Charge Voltage Cut-Off 55.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) 72.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) 85.0V (4.25 ±0.025 vpc) (1.1 ±0.4 s)
BMS Discharge Voltage Cut-Off 36.4V (2.8 ±0.08 vpc) (100ms) 47.6V (2.8 ±0.08 vpc) (100ms) 56V (2.8 ±0.08 vpc) (100ms)
Chemistry Lithium-ion (NCM)
Cycle life >2000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD
Operating temperatures Standard 0℃~60℃
Discharge -30℃~75℃
Storage -20℃~45℃
Storage performance Capacity can be kept ≥ 80% in storage for 12months
Warranty 3 years

Electric Motorcycle Lithium Battery 48V20AH EV Scooter Battery Built-In BMS

Features :

  • Ideal Battery Replacement: E-bike batteries are equipped with intelligent BMS protection boards, which can provide multiple protections for the batteries, such as overcharge, overdischarge, overvoltage, overcurrent, short-circuit, temperature, and so on, with higher reliability and safety! It also ensures the consistency of voltage during use and extends battery life.
  • Enjoy convenient power: Our battery packs are customized with high-end packaging for easy portability. The LED power indicator on the body can remind you to charge on time. And equipped with a safety lock to prevent theft. In addition, the USB port allows you to use it with other devices, such as mobile phones and Bluetooth speakers, anytime and anywhere.
  • Long-term investment: Our batteries are made of waterproof ABS material and Class A quality cells, and the riding time is twice that of ordinary batteries. Each lithium battery has passed QC performance testing before leaving the factory and has more than 1,200 charge and discharge cycles to protect your riding.
  • Meet multiple needs: 36V lithium battery is compatible with motorcycles, electric scooters, tricycles, folding bikes, city bikes, and balance bikes. Please check and confirm your vehicle voltage before placing an order to choose the battery that suits you.

Applications :

E-Bikes / Scooters / Wheelchairs / Tricycle / Golf Cart / Electric Vehicles/Boat

Electric Motorcycle Lithium Battery 48V20AH EV Scooter Battery Built-In BMS

WHY CHOOSE US

Grade A Cells

The heart of our batteries features brand-new Grade A cylindrical cells, delivering superior energy density and cycle life compared to standard cells.

Built-in BMS

Our intelligent Battery Management System (BMS) provides:

  • Protection against: Over-charging, over-discharge, over-current, and short circuits

  • Low-voltage cutoff: Automatic power shutdown for safety

  • Real-time voltage/temperature monitoring

Electric Motorcycle Lithium Battery 48V20AH EV Scooter Battery Built-In BMS
