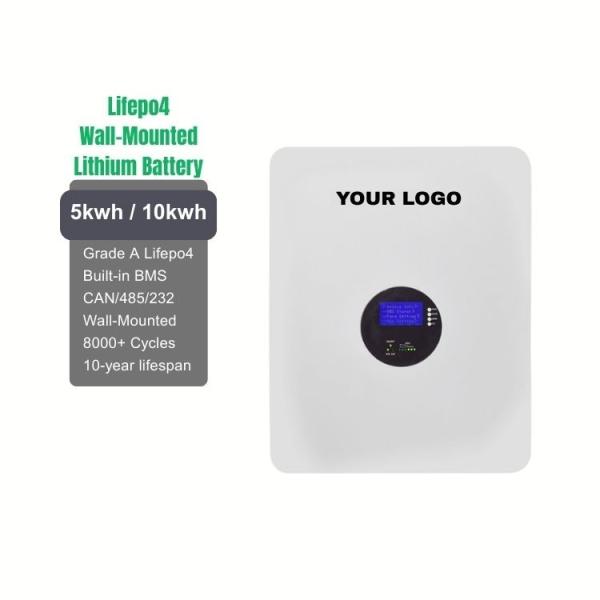

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage
51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage
51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage
51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage
Specifications
Brand Name :
HEYI
Model Number :
5KWH
Certification :
ISO ,MSDS , UN38.3
Place of Origin :
CHINA
MOQ :
1
Price :
399~899 USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
up to 1 GWH yearly
Delivery Time :
around 20 working days
Packaging Details :
wooden case
Nominal Voltage :
51.2v
Material :
LiFePO4
Backup Power :
Yes
Application :
Solar Energy Storage Systems
Nominal Capacity :
100ah
Protection Class :
IP65
Capacity :
5.12 kWh
The Discharge Rate :
1C
Keywords :
Wall mounted Battery Home System
System Type :
Wall-mounted
Power Output :
5 kW continuous, 10 kW peak
Description

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall for Home Energy Storage

Smart Home Energy Hub: 5kWh LiFePO₄ Powerwall
This advanced energy storage solution combines premium lithium iron phosphate technology with intelligent monitoring for residential solar systems. Featuring a comprehensive LCD display for real-time performance tracking, the system offers seamless integration with most hybrid/off-grid inverters through RS485/CAN communication. Scale effortlessly from 5kWh to 160kWh to match your home's evolving energy needs.

.

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage

Compact & Wall-Mount Ready
Engineered with a slim profile to allow hassle-free wall installation—ideal for homes, offices, and tight indoor spaces.

Reliable LiFePO₄ Cell Chemistry
Constructed using premium-grade lithium iron phosphate cells, offering superior safety and thermal resilience.

Extended Lifespan
Capable of delivering up to 8000 full cycles, providing dependable performance for more than a decade.

Smart Protection System (BMS)
Built-in intelligent management safeguards the battery from overcharging, deep discharging, overheating, short circuits, and excessive current.

Space-Efficient Energy Storage
High-capacity energy in a compact design helps conserve space and boost system energy efficiency.

High-Performance Power Delivery
Designed to handle strong input/output currents, enabling fast charging and steady discharging under load.

Modular Expansion Capability
Scalable architecture supports up to 16 units connected in parallel to accommodate growing power needs.

Integrated Communication Interface
Equipped with RS485 and CAN communication ports; optional Bluetooth or Wi-Fi monitoring available via mobile app.

All-Weather Operation
Performs consistently in harsh environments, withstanding ambient temperatures from -20°C to 60°C.

Zero-Maintenance Design
Fully enclosed and maintenance-free—simply set it up and it’s ready to go.

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage

SPECIFICATIONS :

Model HY5KWH HY10KWH
Energy 5120WH 10240WH
Nominal Voltage (V) 51.2V 51.2V
Rated Capacity (Ah) 100Ah 200Ah
Chemistry Lithium iron phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 8000 cycles at 80% DOD.
Communication Protocol CAN , RS485
Display LED Display
Scalable(Parallel Function) Yes, Maximum 16 Packs
Max. Charging Current 100A 200A
Max. Continue Discharging Current 100A 200A
Battery Dimensions (MM) 565*445*124mm 748*525*230mm
Weight Approx: 45kg Approx: 75kg
Battery Protection Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Power Coated steel case IP60
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage

51.2V 100Ah LiFePO4 Solar Battery 5kWh Powerwall For Home Energy Storage
