4020 Laser Cutting Machine High Accuracy Fast Speed Narrow Cutting Gap

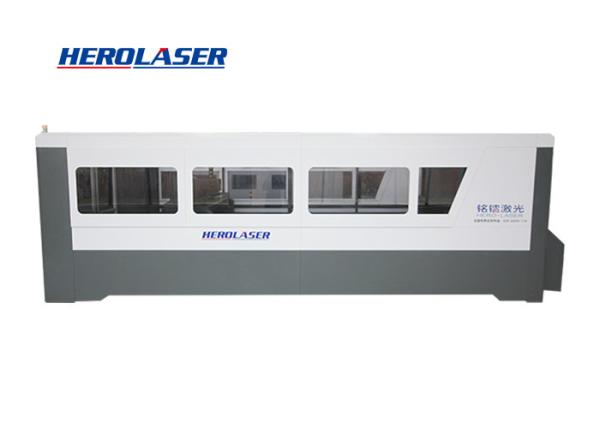

ML-CZ-4020FB Fiber Laser Cutting Machine uses fiber laser to output high energy density laser beam, and gather on the surface of the workpiece, so that the area of the workpiece illuminated by the ultra-fine focus spot can instantly melt and penetrate, and use high-pressure gas to blow off to complete the cutting. As a new trend of metal processing tool, Herolaser fiber laser cutting machine has the advantages of fast cutting speed, high precision, labor-saving, high efficiency, low cost and high efficiency flexible processing and other advantages.

• The cutting surface is smooth without burr;
• High precision, fast speed, narrow slit;
• It can cut all kinds of figures in plane plate;

• Technical specifications:

• Site and environmental requirements:

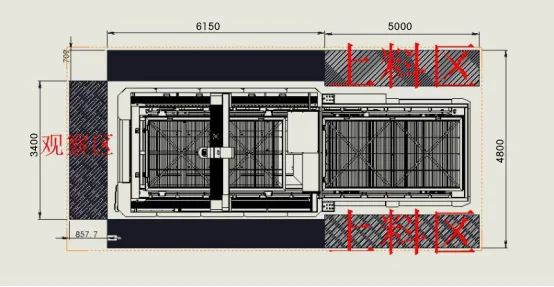

ML-CZ-4020FB the fiber laser cutting machine shall be installed on the ground of the independent ventilation operating room as far as possible (see the figure below). The ground is horizontal, hard and shockproof, and laser protection signs are pasted at the door.

■ the lighting in the operating room is in good condition, and there shall be no interference from strong vibration and strong electric magnetic field equipment within 20 meters around the equipment.

■ the ambient temperature is required to be between 15 ° C and 30 ° C to ensure the equipment is in the best working condition. The room temperature is required to be stable and air conditioning is installed.

■ relative humidity should be below 70% and dry.

■ to ensure the air cleaning of the equipment operating room, the customer shall establish the exhaust system according to the site conditions after the equipment installation.

12360mmx4800mmx2500mm
